Shenzhen Lean Kiosk Systems Co., Ltd.

Cash acceptor card reader Service service payment Kiosk

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8322A
Payment & Shipping Terms:
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
  • Detail Information
  • Product Description

Detail Information

Code Type: 2D And 1D Coupon Type: Card,paper,digital Version
Cahsing Way: Sending Directly To Bank Acount Receipt: 80 Mm Thermal Paper
Displaying: LED / LCD TFT Screen Other: User Friendly
High Light:

self service banking kiosk

,

customer service kiosk

Product Description

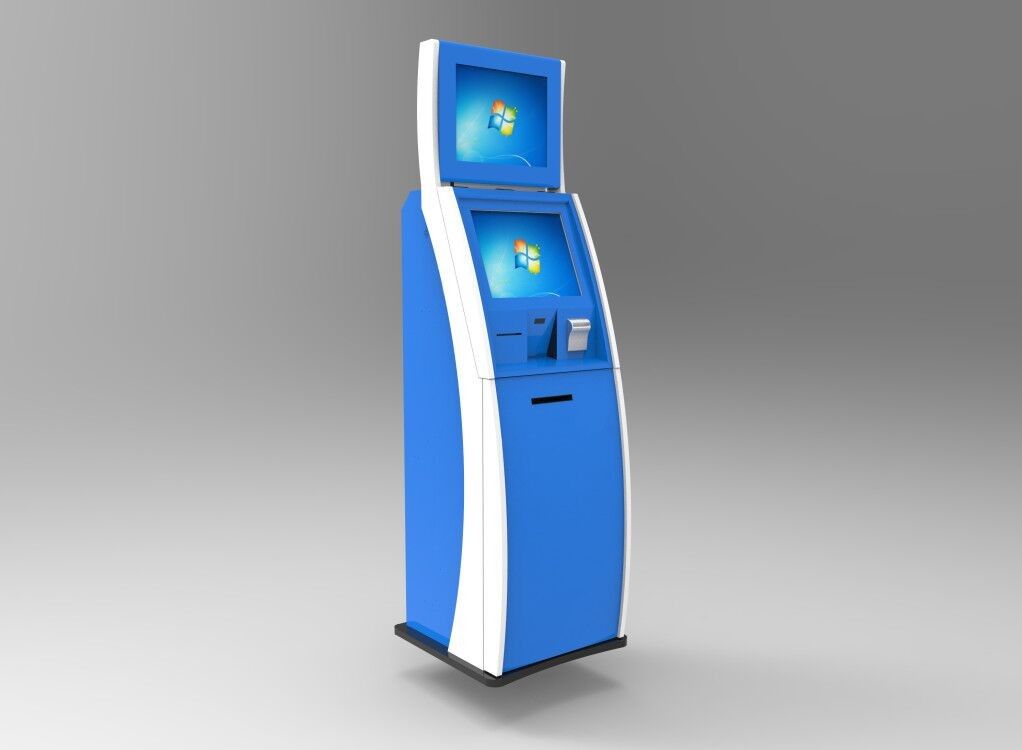

Cash acceptor card reader Service service payment Kiosk
Standard configuration:



  1. 17 inch monitor
  2. Industrious PC
  3. Speaker
  4. White and black laser A4 printer
  5. Keyboard and mouse kit
  6. Free standing  single screen cabinet



Specification  is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz;
RAM 2GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
A4 document printer Interface USB2.0
Memory Capacity 16Mb
Standard input capacity of paper box 150 or 250 pages
Standard output capacity 50 pages
Size of paper A4 maximum
Printing speed 20 pages / sec
Scanning resolution ( optical) Max 600 x 1200 dpi
Scanning resolution ( interpolation) Max 19200 x 19200 dpi
Keyboard and mouse kit Keylift‐span 2,000,000 cycles
Key force  2~3N
Key trip >2.5mm
Protection level ip65
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case





Other Optional hardware components List is as following:



  1. Palm vein scanner
  2. Digital signature pad
  3. Cash / Coin acceptor
  4. Contactless IC Card reader
  5. NFC tag reader
  6. ID scannr and reader
  7. Check scanner
  8. Bank card reader
  9. Encypted Pinpad
  10. WIFI or 3G Wireless module
  11. Photo printer



Other Applications:

  • Tourism spots
  • Bank
  • Shopping mall
  • Lobby hall
  • Museum
  • Human resources room
  • Railway Station
  • Metro Station
  • Gymnasium
  • Police station
  • Prison
  • Hospital
  • Supermarket
  • Police office
  • Airplane boarding room
  • Bank
  • Highway station
  • Bus station
  • Other Public area




Our Advantages:



Cost-saving Strategy

  • Operation friendly
  • 3 paper boxes with the capacity of 500 sheets each
  • Independent modular hardware devices
  • Outstanding supply chain management
  • Maintenance free


Design for  24 / 7 Operation

  • Uninterrupted power supply to sustain every check in procedure
  • Power saving and modular devices
  • Industrious level for all components
  • Fixed on floor and lockable



Appearance


  • Art-of-state design
  • Customizable decorations
  • High-quality design sketch
  • Ergonomic design







Description


  1. LKS Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  2. LKS is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theater, shopping mall, etc.
  3. LKS Kiosks manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS is a Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
