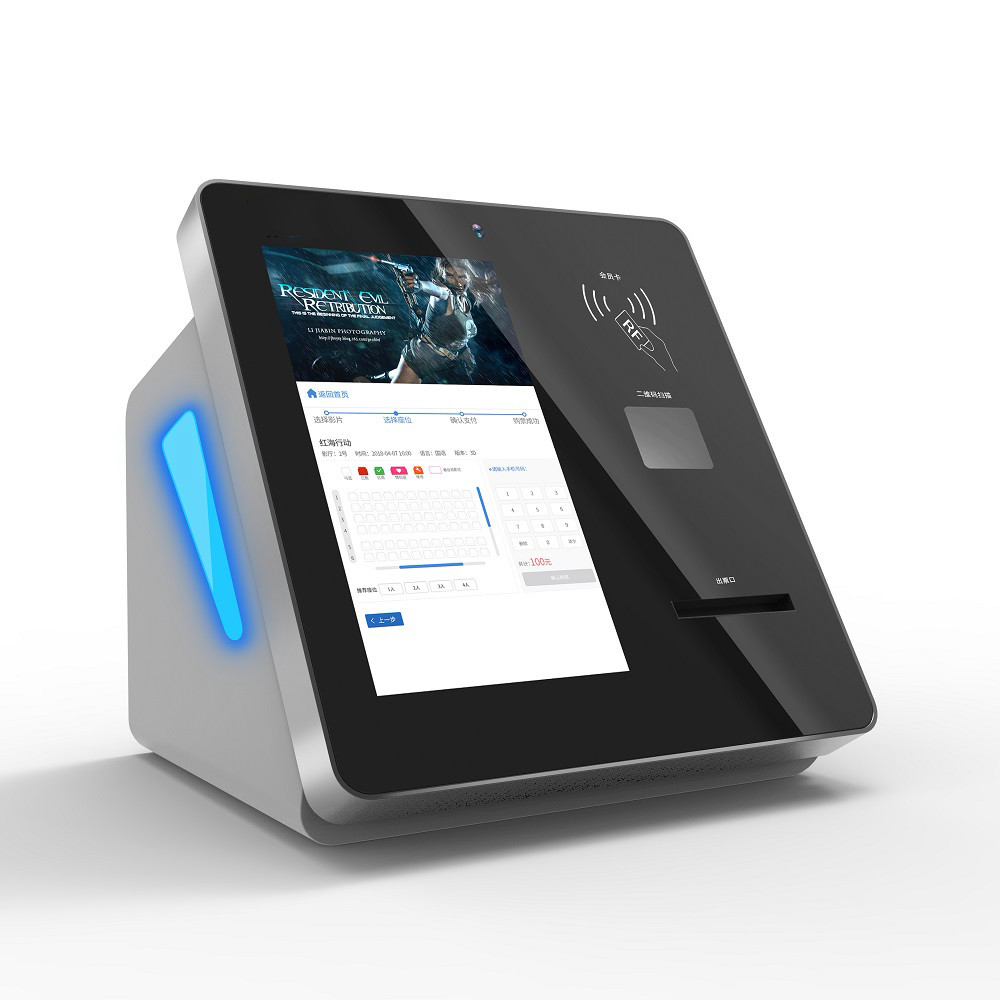

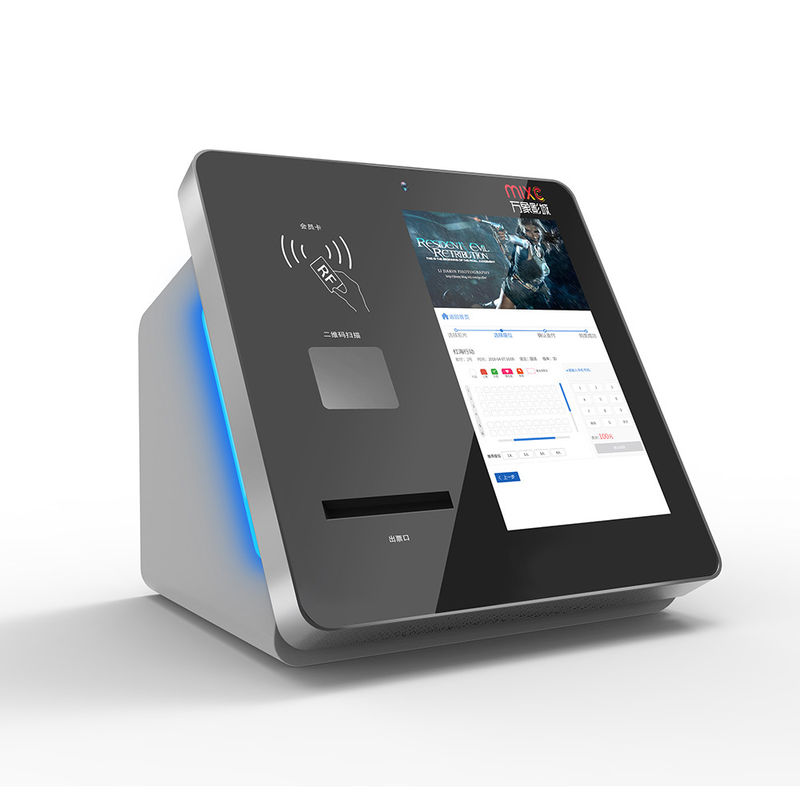

Bus Ticket Vending Machine Kiosk Housing Thermal Printer Card Reader

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8527B

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

ticket dispenser machine

,

card vending machine

Member Card:
Contactless IC / NFC / RFID Card
Function:
Self Payment,advertising Display,ticket Vending
Bus Ticket:
Thermal Or Others
Width Of Paper:
56 ~ 270 Mm
Length Of Paper:
As Optional
Capacity Of Ticket:
60 M For Thermal,optional For Dot Matrix
Member Card:
Contactless IC / NFC / RFID Card
Function:
Self Payment,advertising Display,ticket Vending
Bus Ticket:
Thermal Or Others
Width Of Paper:
56 ~ 270 Mm
Length Of Paper:
As Optional
Capacity Of Ticket:
60 M For Thermal,optional For Dot Matrix
Product Description

Bus Ticket Vending Machine Kiosk Housing Thermal Printer,Card Reader


Standard configuration:


  1. 17 inch HD monitor
  2. 17 inch IR touch screen
  3. HD Webcam
  4. Industrious PC,2G RAM,500G HDD
  5. Wireless module WLAN
  6. Bill validator / acceptor
  7. Bank card reader
  8. Encypted pinpad
  9. Speaker
  10. Ticket printer
  11. Contactless IC / RF / NFC card reader
  12. Free standing single screen cabinet


Specification  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU  Intel Dual Core I5
RAM 4 GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt / Ticket Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Width 58 /80 /112 mm
Length Customizable

Webcam



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
Encrypting Pinpad Keylift‐span 2,000,000 cycles
Key force 2~3N
Key trip  >2.5mm
Protection level IP65
Operating Temperature  0° C to 40° C
Motorized card reader Interface RS232
Card Type Support Magcard, IC Card, RF Card,  Mifare S50,S70,UL Card
Magnetic Head Life 500,000/min
500,000/min 300,000/min
Power Voltage  DC 24V±5%
Cash acceptor Validation Rate 98% or higher
Banknote size Width: 62or 71mm; Length:120-160mm
Detection ability High detection of forged bills
Bill Escrow one bill
Cashbox capacity 1000  banknotes max
Operating Voltage  12V DC  or 24V AC
Operating Temperature 0° C to 55 ° C  (12 V DC platform);  -18° C to +60 ° C  (24 V AC platform)
Contactless card reader Status Display LED indicator to show the power or communication status
Card Type  ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Type Support  ISO14443
UPS Input voltage 145-290 V
Output voltage 200-255 V
Output frequency 50±0.5Hz
Transient time 50±0.5Hz
Max time for supplying a single PC 3~20minutes (for single PC)
Wireless module 3G module 1, Compatible with HSUPA, HSDPA, UMTS, EDGE, GPRS, GSM network
2, Browsing Internet at high speed of 7.2Mbps downlink and 5.76Mbps uplink rate in max
3, Sending and receiving short messages
4, Managing contacts
Interface: USB2.0, and USB1.1 compatible
Data transmission: Transmission rate will be depended on the live network
Alarm system sensor / IO control board Function Door alarm sensor with enternet function, SIM,SMS,CALL
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case




Other Optional hardware components List is as following:


  1. Dot matrix printer
  2. Cash dispenser
  3. Coin acceptor
  4. Cash / Coin dispenser
  5. Palm vein scanner
  6. Coin dispenser
  7. ID / Driver licence / Social insurance card double-side scanner
  8. Fingerprint scanner
  9. Passport scanner
  10. Stainless metal keyboad with track ball
  11. Digital signature pad
  12. Manual magnetic stripe swipe card reader
  13. Cheque scanner / acceptor with MICR function



Application


  • Cinema
  • School
  • Hospital
  • Museum
  • Supermarket
  • Bank
  • Retailer store
  • Coffe shop
  • Park
  • Gymnasium
  • Conference lobby
  • Exibition
  • Coffe shop
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Other Public area




Our Advantages:

Cost-saving solution


  • Rigorous quality control for every compenent and complete machine
  • Design and production on our own
  • Independent modular hardward devices
  • Complete supply chain management
  • Maintenance free,user friendly
  • Back LED light panel for advertising releasing,and changeble


Design for  24 / 7 Operation


  • Fixed on floor by screws and doors are lockable
  • No staff needed during night
  • Two ticket printers,reducing frequency of maintenance
  • Inner air recycling design for heat and humidity control
  • Less power consuming and more stable Industrious modules



 Appearance


  • Eyesight attractive,Coloful design
  • Big screen for loop continous advertising playing
  • Robust and secured cabinet
  • Brand promotion with LOGO displaying and advertise video displaying





Description


  1. LKS Ticket Vending Machine Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  2. LKS main Ticket Vending Machine Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  3. LKS is a Ticket Vending Machine Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  4. LKS Ticket Vending Machine Kiosk manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
