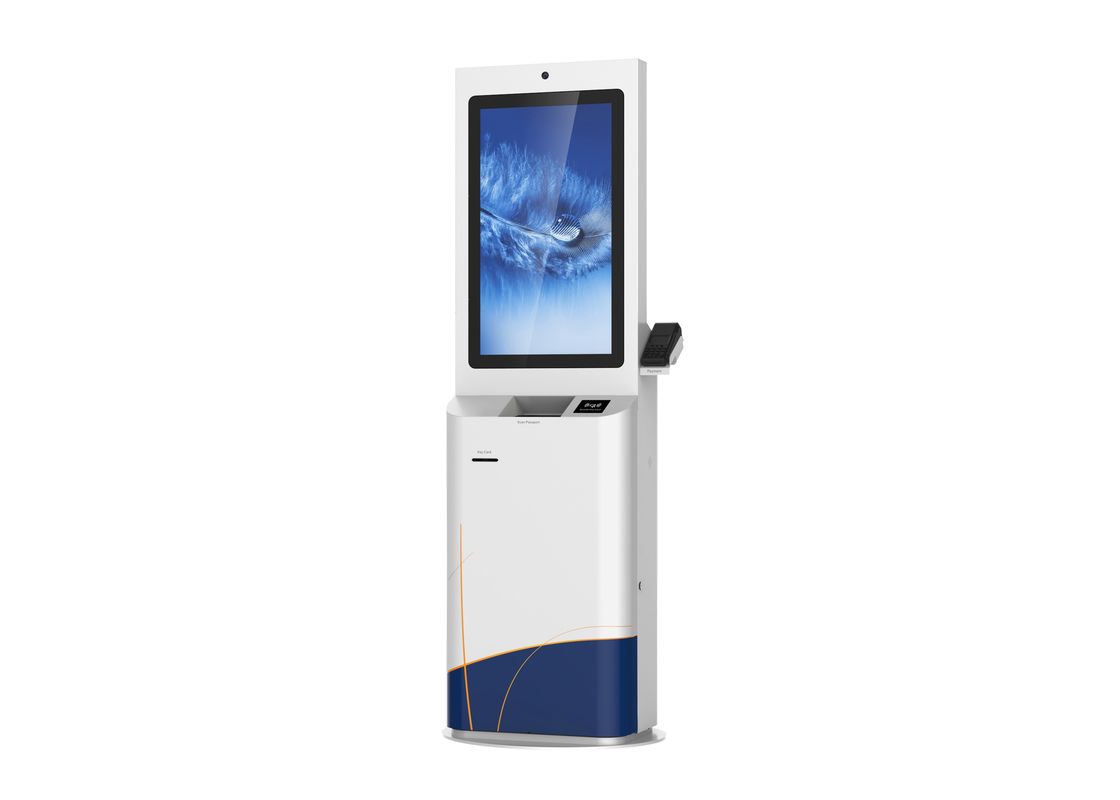

Library Kiosk Self-help Borrowing And Returning Books Automatic Sensing of Barcode

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8314B

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

self service banking kiosk

,

customer service kiosk

Number Of Books:
5 Books In Sensing Area Maximum At One Time
Barcode:
1D Or 2D
Pinpad:
For Inputting Member Card Password
Receipt:
To Show The Borrowing And Returning Info
Card:
Member Card Like Contactless IC,NFC,RF
Internet:
RJ45 Or WLAN
Number Of Books:
5 Books In Sensing Area Maximum At One Time
Barcode:
1D Or 2D
Pinpad:
For Inputting Member Card Password
Receipt:
To Show The Borrowing And Returning Info
Card:
Member Card Like Contactless IC,NFC,RF
Internet:
RJ45 Or WLAN
Product Description



Library Kiosk Self-help Borrowing And Returning Books Automatic Sensing of Barcode


Standard configuration:



  1. 17 inch monitor
  2. 17 inch IR touch screen
  3. Industrious PC
  4. Barcode scanner
  5. Contactless IC / NFC / RF Card reader
  6. Pinpad
  7. High defination Webcam
  8. Speaker
  9. Receipt printer
  10. Free standing  single screen cabinet



Specification  is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times

Webcam



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
Barcode scanner Pixel Resolution 752*480
Image grabbing Area

2D PDF417, QR Code(Model 1/2),  DataMatrix(ECC200, ECC000, 050, 080, 100,140),

Aztec, Maxicode, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc

Approval

FCC Part15 Class B, CE EMC Class B

Receip printer Width 80 mm
Printing speed 150 mm/s
Technology Thermal
Interface RSR 232.USB,COM
Others Auto half or full cut
Contactless card reader Card type ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case




Other Optional hardware components List is as following:


  1. Palm vein scanner
  2. Digital signature pad
  3. NFC tag reader
  4. ID scannr and reader
  5. Cheque scanner
  6. Bank card reader
  7. Encypted Pinpad
  8. WIFI or 3G Wireless module
  9. A4 document printer



Other Applications

  • Tourism spots
  • Bank
  • Shooping mall
  • Lobby hall
  • Museum
  • Human resources room
  • Railway Station
  • Metro Station
  • Gymnasium
  • Police station
  • Prinson
  • Hospital
  • Supermarket
  • Police office
  • Airplane boarding room
  • Bank
  • Highway station
  • Bus station
  • Other Public area




Our Advantages:



Cost-saving Strategy

  • Operation friendly
  • Independent modular hardward devices
  • Outstanding supply chain management
  • Maintenance free


Design for  24 / 7 Operation

  • Uninterruptable power supply to sustain every check in procedure
  • Power saving and modular devices
  • Industrious level for all compenents
  • Fixed on floor and lockable



Appearance


  • Art-of-state design
  • Customizable decorations
  • High-quality design sketch
  • Ergonomic design





The reason you choose LKS:



  1. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
  2. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba;
  3. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  4. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  5. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  6. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration.
