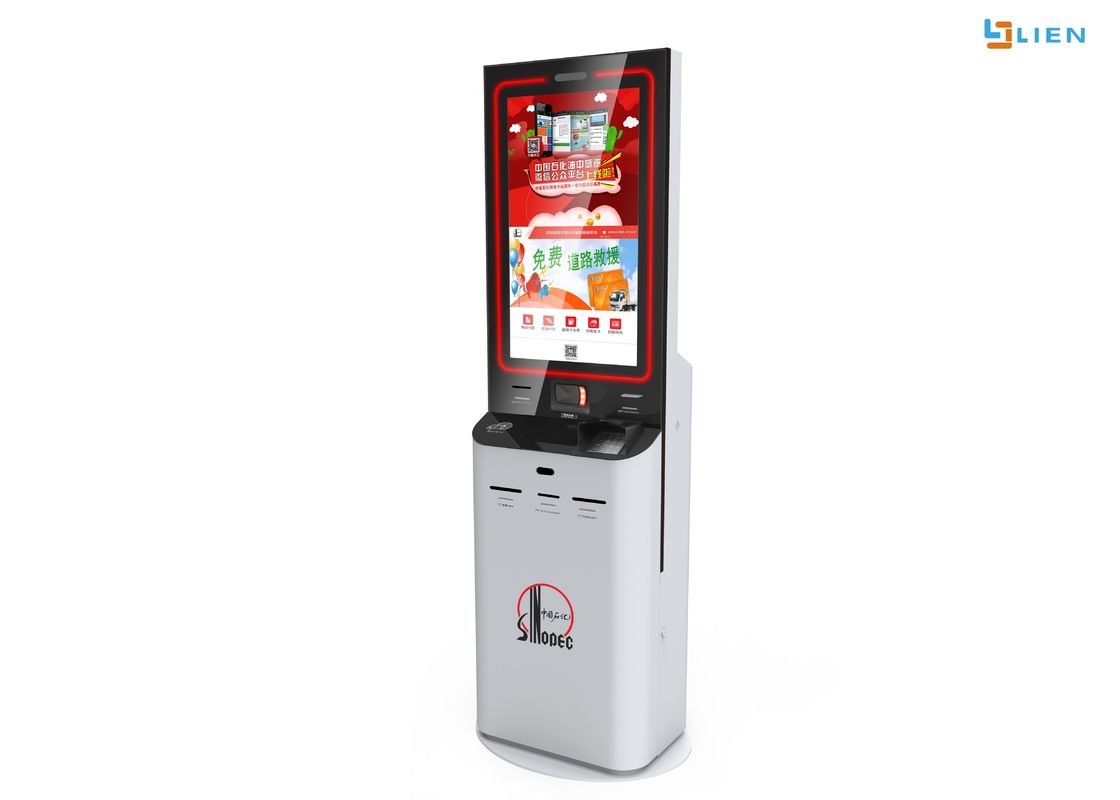

Single Screen Self Service Internet Kiosk Magnetic Stripe Bank Card Payment

Product Details:
Place of Origin: China
Brand Name: LKS / OEM / ODM
Certification: CE, FCC
Model Number: LKS8373B
Payment & Shipping Terms:
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
  • Detail Information
  • Product Description

Detail Information

Application: Free Standing Single Screen Kiosk Printing: A4 Paper ,3 Paper Boxes Maximum
Scanner Material: Card,photo,A4 Paper Brightness: 250 Cd/㎡
Bank Card Type: Contact / Contactless IC,Magnetic Stripe Other: 6 Boxes Attached To Kiosk For A4 Document
High Light:

self service banking kiosk


touch screen kiosks

Product Description


Single Screen Self Service Internet Kiosk Magnetic Stripe Bank Card Payment


Main components​​ ​​:


  1. Industrious PC
  2. 19 inch monitor
  3. 19 inch touch screen
  4. Metal keyboard with tracking ball
  5. Encrypted Pinpad
  6. A4 Laser printer
  7. A4 color scanner
  8. Contactless IC / NFC / RF card reader
  9. Manual swipe magnetic stripe card reader
  10. Webcam
  11. Receipt printer
  12. Barcode scanner
  13. Speaker
  14. Free standing single screen cabinet


Standard hardware components List of  Single Screen Self Service Internet Kiosk Magnetic Stripe Bank Card Payment  is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 19 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Manual swipe magnetic stripe card reader Interface RS232
Card Type ISO 7811/2
Head life At least 500,000 times
Metal keyboard with tracking ball Keylift‐span 2,000,000 cycles
Rating IP65
Contactless IC/ NFC / RF card reader Card type ISO14443 TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Status LED indicator to show the power or communication status
Interface Support  ISO14443
Encrypted Pinpad Keylift-span 2,000,000 cycles
Rating IP65 waterproof
Certification PCI
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
A4 printer Interface High speed USB / RS 232
Resolution 4800*2400 maximum
Printing speed 20 pages /second
Capacity of paper bos 2100 A4 sheets maximum
A4 scanner Resolution 600 dpi
Scanning speed 7.5 s/ A4 page
Scanning mode Color,Grayscale,Monochrome,Automatic Mode Detection
Scanning type Single sheet,simplex,color scanning with CDF
Interface High speed USB
2D barcode scanner Read head COMS
Code 2D PDF417, QR Code(Model 1/2),DataMatrix(ECC200, ECC000, 050, 080, 100,140),Aztec, Maxicode, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc
Resolution 752*480
Certification FCC Part15 Class B, CE EMC Class B
Speaker Dual channel amplified speakers for Stereo , 8Ω 5W.
Webcam 500 million pixels,USB driver
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case


Other Optional hardware components List​​ is as following:


  1. Cash / Coin dispenser
  2. Motorized bank card reader for contact / contactless IC, Magnetic stripe card
  3. Coin validator
  4. ​Cash validator
  5. Wireless module like WLAN / GPRS / 3G / LTE
  6. ID scanner
  7. Encrypted Pinpad
  8. Metal kerboard with touchpad
  9. USB port
  10. Advertising screen



  • Library
  • Bank
  • HR department
  • Customs department
  • School
  • ATM / VTM booth
  • Trade show
  • Conference room
  • Museum
  • HR room
  • Bank
  • Supermarket
  • Hotel
  • Hospital
  • Gas station
  • Shopping Mall
  • Theater
  • Railway Station
  • Metro Station
  • Parking Lot
  • Fast food restaurant
  • Buss station
  • Other Public area



Our Advantages:


Designed for 24 / 7 operation

  • Highly responsive user interaction
  • Tightly integrated hardware and software
  • Industrious level for all hardware components
  • Vandal resistant components

Cost-effective Solution

  • Stable-quality hardware components
  • Built on widely used stable proven technology
  • Complete supply chain management
  • Modular design for easy maintenance



Elegant Appearance


  • Attract end customers
  • Multi-color processed surface
  • Human engineering verification
  • Attractive decoration
  • High-quality design sketch


The reason you choose LKS:



  1. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba;
  2. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration.
  3. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  4. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  5. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
