21.5 Inch Interactive Touchable Information Table Kiosk With EPP And Complimentary Card Reader

Product Details

Place of Origin: China

Brand Name: LKS / OEM / ODM

Certification: CE, FCC

Model Number: LKS6338

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

card dispenser kiosk

,

photo booth kiosk

Touch Screen:
Multi-touch IR Screen
Function:
Advertising Displaying,game Playing
Safety:
Lockable Case And Screws For Bottom Bracket On Floor
Wireless Module:
WLAN / 3G / LTE
Camera:
500 Million Pixels
Color:
As Optional
Touch Screen:
Multi-touch IR Screen
Function:
Advertising Displaying,game Playing
Safety:
Lockable Case And Screws For Bottom Bracket On Floor
Wireless Module:
WLAN / 3G / LTE
Camera:
500 Million Pixels
Color:
As Optional
Product Description



21.5 Inch Interactive Touchable Information Table Kiosk With EPP And Complimentary Card Reader


Standard configuration:


  1. 21.5 inch HD monitor
  2. 21.5 inch 10-points IR touch screen
  3. Contactless IC card reader
  4. Encrypted Pinpad
  5. WIFI /3G /LTE
  6. Bluetooth
  7. Built-in Speaker
  8. Free standing cabinet


Specification  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU  Intel Dual Core I5
RAM 4 GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 21.5 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 21.5 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Contactless card reader Status Display LED indicator to show the power or communication status
Card Type  ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Type Support  ISO14443

EPP

(Encrypted Pinpad)

Key pad 10* numeric keys,6* functional keys
Keylift-span 2,000,000 cycles
Interface RS232 or USB
Wireless module 3G module 1, Compatible with HSUPA, HSDPA, UMTS, EDGE, GPRS, GSM network
2, Browsing Internet at high speed of 7.2Mbps downlink and 5.76Mbps uplink rate in max
3, Sending and receiving short messages
4, Managing contacts
Interface: USB2.0, and USB1.1 compatible
Data transmission: Transmission rate will be depended on the live network
Alarm system sensor / IO control board Function Door alarm sensor with enternet function, SIM,SMS,CALL
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case






Other Optional hardware components List is as following:


  1. Manual magnetic stripe swipe card reader



Application


  • School
  • Office
  • Cafes
  • Cinema
  • Canteen
  • Hospital
  • Museum
  • Supermarket
  • Bank
  • Pharmacy
  • Retailer store
  • Coffe shop
  • Park
  • Gymnasium
  • Conference lobby
  • Exibition
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Other Public area




Our Advantages:


Cost-saving solution


  • Rigorous quality control for every compenent and complete machine
  • Design and production on our own
  • Android or Windows solution
  • Complete supply chain management
  • Maintenance free,user friendly



Design for  24 / 7 Operation


  • Ease-of-use,maitenance free
  • Integrated industrial compenents from worldwide famous brands
  • Less power consuming and more stable Industrious modules

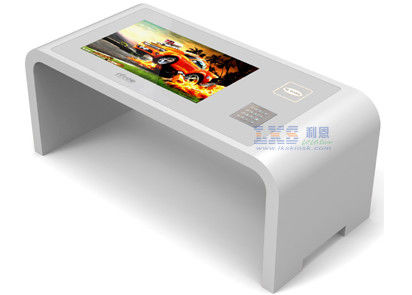

Physical Photo





21.5 Inch Interactive Touchable Information Table Kiosk With EPP And Complimentary Card Reader 0





The reason why choose LKS:


  1. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  2. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  3. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
  4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  5. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
  6. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.




Appearance

  • Eyesight attractive,Coloful design
  • Elegant and noble design like Apple tablets
  • Brand promotion with LOGO displaying and advertise video displaying





21.5 Inch Interactive Touchable Information Table Kiosk With EPP And Complimentary Card Reader 1
