Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS / OEM / ODM |
| Certification: | CE, FCC |

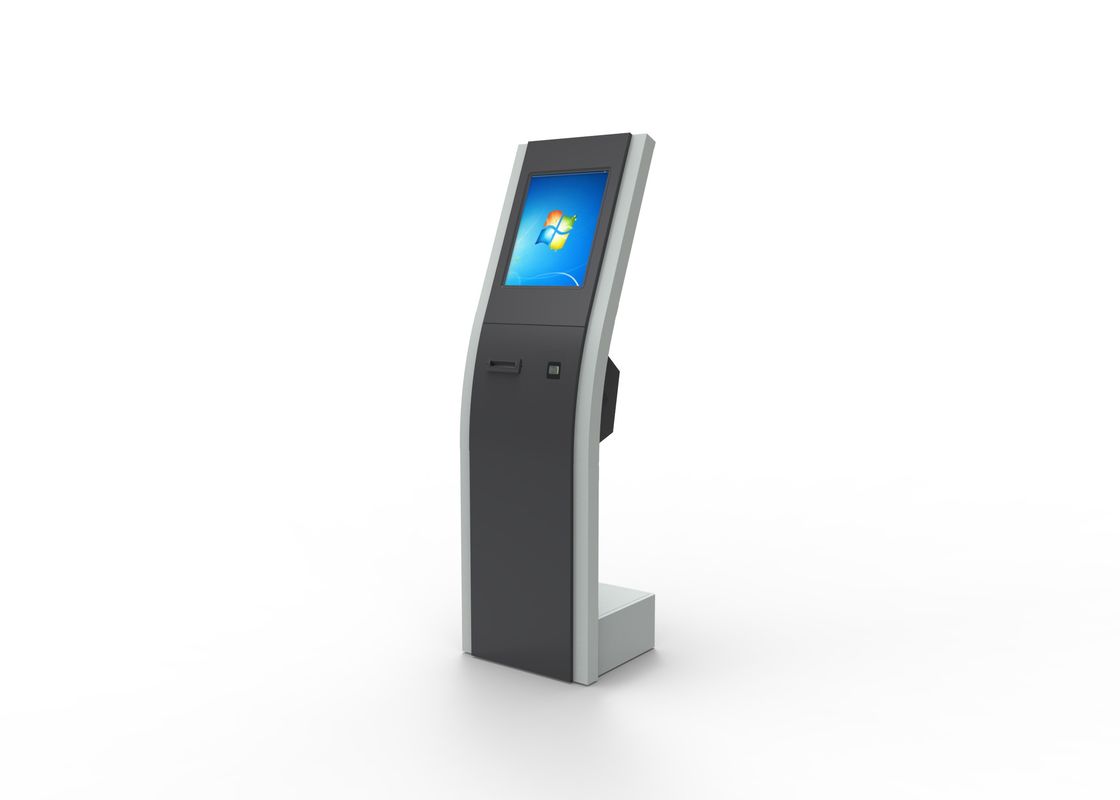

| Model Number: | LKS809B |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 5 Units |
| Packaging Details: | Film wrap, foam and wooden box |
| Delivery Time: | 4-6 weeks upon payment |
| Payment Terms: | T/T in advance, Western Union, L/C |
| Supply Ability: | 1000 units per month |
|
Detail Information |
|||
| Coupon: | Digital And Paper Version | Application: | Indoor |
|---|---|---|---|
| Color And Logo: | Customizable | Advertising: | Acrylic Panel At Bottom And Up Chamber |
| Other: | Custom Silkscreen Logo At Middle | Function: | Directions Receiving And Printing |
| High Light: | card dispenser kiosk,photo booth kiosk |
||
Product Description
Standard configuration:
Specification is as following:
| Components | Details | |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Intel Dual Core I5 | |
| RAM | 4 GB | |
| HDD | 500G | |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | HUNTKEY/Great Wall | |
| LCD monitor | Screen Size | 17 inch ( optional from 8inch to 65inch) |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280×1024 | |
| Touch screen | Screen Size | 17 inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| NFC reader | Status Display | LED indicator to show the power or communication status |
| Card Type | ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight | |
| Type | Support ISO14443 | |
| Thermal printer | Paper size | 80mm in width,0.056~0.15mm in thickness |
| Printing speed | 150 mm / s | |
| Auto-cutter | Half or full cut | |
| Interface | RS232 or USB | |
| Wireless module | 3G module | 1, Compatible with HSUPA, HSDPA, UMTS, EDGE, GPRS, GSM network 2, Browsing Internet at high speed of 7.2Mbps downlink and 5.76Mbps uplink rate in max 3, Sending and receiving short messages 4, Managing contacts Interface: USB2.0, and USB1.1 compatible Data transmission: Transmission rate will be depended on the live network |
| Speakers | Features | Dual channel amplified speakers for Stereo ,8Ω 5W |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| AC input voltage range | 100~240VAC | |
| Frequency | 50Hz to 60Hz | |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Operation System | Windows 7 or Windows XP operation system without license | |
| Free standing Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Package | Security Packing method with bubble foam and wooden case | |
Other Optional hardware components List is as following:
Application
Our Advantages:
Design for 24 / 7 Operation
Cost-saving solution
The reason to choose LKS:
LKS Shipping Terms
Welcome to contact us and send inquiry now!
