Shenzhen Lean Kiosk Systems Co., Ltd.

Indoor self service hotel check in and passport scanner kiosk with RF card dispenser

Product Details:
Place of Origin: China
Brand Name: LKS / ODM / OEM
Certification: CE, FCC
Model Number: LKS8901
Payment & Shipping Terms:
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
  • Detail Information
  • Product Description

Detail Information

Application: Indoor / Outdoor Touch Screen: 15 Inch IR Single Or Multi Touch
Warranty: 12 Months Function: Hotel Check-in And Card Dispenser
Other: Passport Scanner Support: Card Dispenser, RFID Card Reader, Payment Bank Card Reader
Function 1: Card Dispenser Function 2: Passport Scanner
High Light:

card dispenser kiosk

,

picture printing kiosk

Product Description

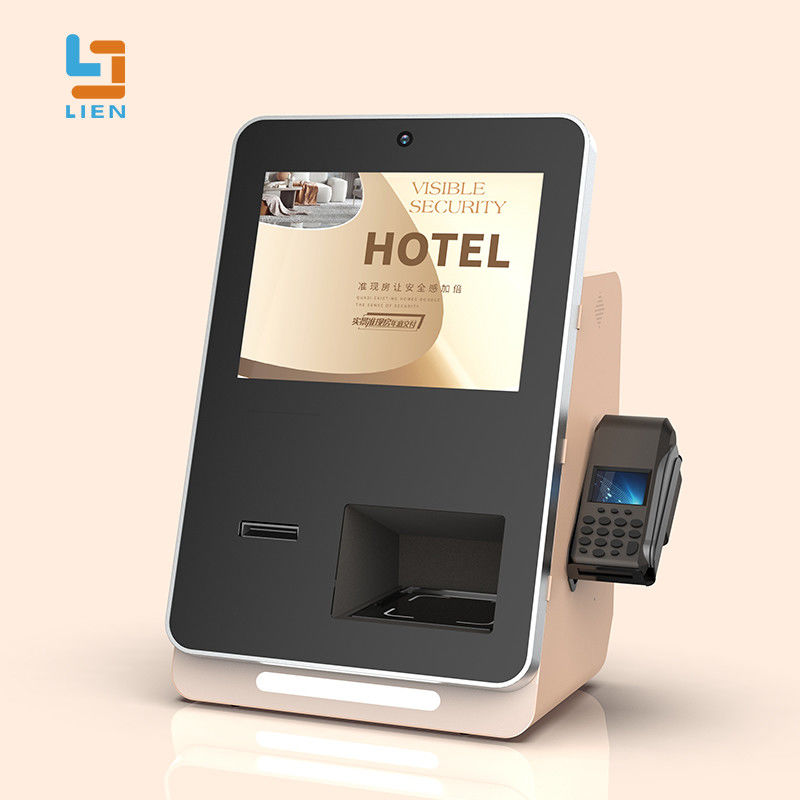

Indoor self service hotel check in and passport scanner kiosk with RF card dispenser







Standard configuration:



Specification  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 / 420inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, Contact or contactless IC Card,Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Epson Receipt Thermal Printer Interface RS232 ,USB
A4 Printer Capacity for paper box From 150 pages to 2100 pages for A4 size
Printing speed 20 pages / s
Resolution 2400*1200 dpi
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Speaker Dual amplifier speakers,8Ω,5W
Webcam HD webcam
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case




Other Optional hardware components List is as following:


  1. Coin acceptor / dispenser
  2. Cash dispenser / acceptor
  3. Cheque scanner and acceptor
  4. QR code scanner
  5. Palm vein scanner
  6. WIFI or 3G Wireless module
  7. Thermal printer
  8. Intercom
  9. Passport scanner
  10. ID validation

Indoor self service hotel check in and passport scanner kiosk with RF card dispenser 0

Indoor self service hotel check in and passport scanner kiosk with RF card dispenser 1

Multi-functional Application:


  • Bank
  • ATM / VTM booth
  • Financial agency
  • Hypermarket
  • Highway station
  • Tourism spot
  • Retailer store
  • Gas station
  • Cafes
  •


Our Advantages:

Suitable for 24 / 7 operation


  • Desigh for higher standard and have a much longer life-cycle,Commecial-grade electronics
  • Function at a higher capacity and are fully integrated and more secure.

  • Increase effeciency,improve collections,creates less work for staff,cut lines





Appearance


  • Eyesight attractive,Elegant and noble design
  • Brand promotion by LOGO displaying and video advertising playing
  • Human engineering verification

Indoor self service hotel check in and passport scanner kiosk with RF card dispenser 2

Indoor self service hotel check in and passport scanner kiosk with RF card dispenser 3


The Reason you choose LKS:

  1. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  2. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  3. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
  4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  5. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
  6. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.
