Shenzhen Lean Kiosk Systems Co., Ltd.

Dual Screen Self-checkin Systems Kiosk With Industrial Fanless Mini PC

Product Details:
Place of Origin: China
Brand Name: LKS / ODM / OEM
Certification: CE, FCC
Model Number: LKS8572
Payment & Shipping Terms:
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
  • Detail Information
  • Product Description

Detail Information

Card: Bank Card And Member Card Screen: 46 Inch Samsung,17 Inch AUO
Security: Bank Card Returned When Power Cut-off Receipt: 58mm / 80mm Width
Touch Technology: Multi-points IR Other: Slim And Tall Design
High Light:

digital signage kiosk

,

digital kiosk display

Product Description

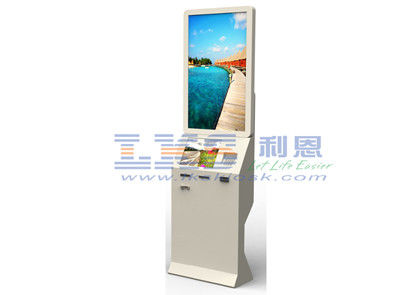

Dual Screen Self-checkin Systems Kiosk With Industrial Fanless Mini PC



Standard configuration:



  1. 46 inch monitor
  2. 17 inch monitor
  3. 17 inch touch screen
  4. Industrious Fanless PC
  5. Speaker
  6. Webcam
  7. Cash acceptor
  8. Receipt printer
  9. Encrypted Pinpad
  10. Bank card reader
  11. EMV member card reader
  12. Free standing dual screen cabinet



Specification  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/ 19 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Width 58 /80 /112 mm
Length Customizable

Webcam



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
Encrypting Pinpad Keylift‐span 2,000,000 cycles
Key force 2~3N
Key trip  >2.5mm
Protection level IP65
Operating Temperature  0° C to 40° C
Motorized / Member card reader Interface RS232
Card Type Support Magcard, IC Card, RF Card,  Mifare S50,S70,UL Card
Magnetic Head Life 500,000/min
500,000/min 300,000/min
Power Voltage  DC 24V±5%
Cash acceptor Validation Rate 98% or higher
Banknote size Width: 62or 71mm; Length:120-160mm
Detection ability High detection of forged bills
Bill Escrow one bill
Cashbox capacity 1000  banknotes max
Operating Voltage  12V DC  or 24V AC
Operating Temperature 0° C to 55 ° C  (12 V DC platform);  -18° C to +60 ° C  (24 V AC platform)
IO control board Function Door alarm sensor with enternet function, SIM,SMS,CALL
Speaker Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case




Other Optional hardware components List is as following:



  1. Barcode scanner
  2. Manual magnetic stripe card reader
  3. NFC loyalty card reader
  4. Coin acceptor
  5. Coin / Cash dispenser
  6. Palm vein scanner
  7. WIFI or 3G Wireless module
  8. ID / Driver licence / Social insurance card double-side scanner
  9. A4 printer




Multi-function:



  • Convenience store
  • Hypermarket
  • Retail chain store
  • School
  • Pharmacy
  • Clinic
  • ATM / VTM / ITM booth
  • Airplane boarding room
  • High railway waiting room
  • Tourism spots
  • Hospital
  • Bank
  • Retailer store
  • Human resources room
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Other Public area




Advantages:



  • For interactivity, personalization, loyalty programs and social media exposure

  • Designed to eventually allow customers online shopping and fulfillment options
  • Accomplish multiple tasks in a single multi-function kiosk

  • All modular components  work together, but can be tested independently.





Appearance:



  • Cabinet with feature of anti-vandal,anti-dust,anti-rust,anti-vandalism,anti-scratching,waterproof
  • Color and LOGO painting as customizable
  • Noble and elegant design,robust and safe building





The Reason Why You choose LKS:



  1. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba;
  2. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  3. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  5. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration.
