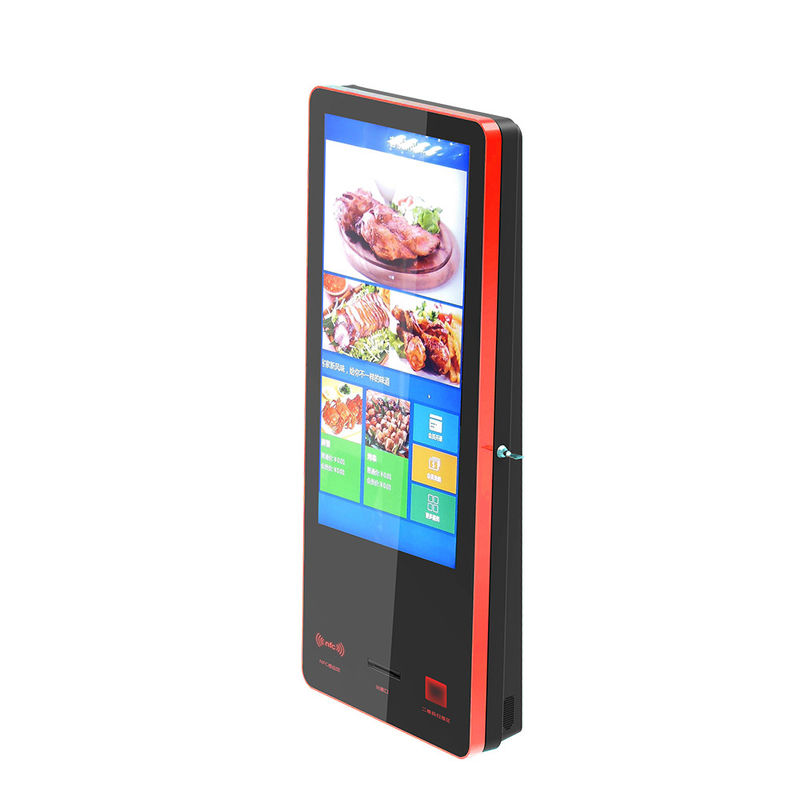

Simple Fabrication Wall Mounted Info Kiosk Lockable / Removable Cabinet

Product Details

Place of Origin: China

Brand Name: LKS / OEM / ODM

Certification: CE, FCC

Model Number: LKS8235A

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6 weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

interactive touch screen kiosk

,

lobby kiosk

Voltage:
110V-240V
Frequency:
50 Or 60 Hz
Power:
Less Than 100 W
Interfaces:
Erthernet,USB,Seriel,Audio Jack,power
Lock:
Mechanical With Key
Other:
Indoor Application
Voltage:
110V-240V
Frequency:
50 Or 60 Hz
Power:
Less Than 100 W
Interfaces:
Erthernet,USB,Seriel,Audio Jack,power
Lock:
Mechanical With Key
Other:
Indoor Application
Product Description


Simple Fabrication Wall Mounted Info Kiosk Lockable / Removable Cabinet

Main components​​:



  1. 12 inch IR Touch screen
  2. 12 inch TFT LED Monitor
  3. Speaker
  4. Industrious PC
  5. Camera
  6. Wall mounted cabinet


Standard hardware components List is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Camera 500 milllion pixels,HD
Speaker 8Ω,5w
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case



Other Optional hardware components List is as following:


  1. ID scanner
  2. Fingerprint printer
  3. Coin acceptor
  4. Cash acceptor
  5. Receipt printer
  6. Contactless IC /RF / NFC card reader
  7. Barcode reader
  8. Encrypted Pinpad
  9. Receipt printer



Multi-function:


  • Bank
  • Hospital
  • School
  • Convenience store
  • Hypermarket
  • Hospital
  • Retail store
  • Air port
  • Hotel
  • VTM / ATM / ITM Booth
  • Super market
  • Gas station
  • Shopping Mall
  • Cinema
  • Railway Station
  • Metro Station
  • Parking Lot
  • Fast food restaurant
  • Bus station
  • Other Public areas



Advantages:


  • Build brands and generate sales,hold users for longer periods of time

  • The use of a retail kiosk can be the key to generating increased revenue, improving brand loyalty, enhancing the customer buying experience, and improving employee loyalty

  • Designed to eventually allow customers online shopping and fulfillment options

  • Enhance overall reputation and lead to repeat visits,Increase ROI of self-service



 Appearance


  • Hardware agnostic and we can retrofit
  • Customizable design in color and LOGO painting






The reason you choose LKS:


  1. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  2. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  3. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  4. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
  5. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
  6. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.
