Shenzhen Lean Kiosk Systems Co., Ltd.

Cashless Dual Screen Kiosk Tickets Picking Up , No Payment Involvement

Product Details:
Place of Origin: China
Brand Name: LKS / ODM / OEM
Certification: CE, FCC
Model Number: LKS8539
Payment & Shipping Terms:
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
  • Detail Information
  • Product Description

Detail Information

Brightness: 250 Cd/㎡ For 19 Inch,350 Cd/㎡ For 21.5 Inch Contrast: 1000:1 Or 1200:1
Viewing Angle: 88° From Left , Right , Up And Down LED Light: Blue / White / Red As Optional
Touch Technology: Multi-touch IR Other: Posters For Advertising Box Is Changeable
High Light:

touch screen kiosk

,

digital kiosk display

Product Description

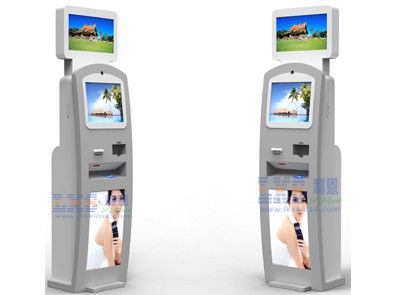

Cashless Dual Screen Kiosk Tickets Picking Up , No Payment Involvement

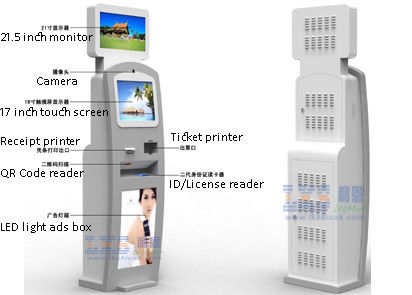

Standard configuration:


  1. 21.5 inch monitor
  2. 19 inch monitor
  3. 19 inch touch screen
  4. Industrial PC
  5. Speaker
  6. Webcam
  7. Barcode scanner
  8. Contactless IC / RF / NFC card reader
  9. Ticket printer
  10. Receipt printer
  11. LED light box advertising box
  12. Free standing single screen cabinet


Specification  is as following:


ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPU Intel Dual Core G2020
RAM2 GB
HDD500G
Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
PC Power SupplyHUNTKEY/Great Wall
LCD monitorScreen Size21.5 / 19 inch ( optional from 8inch to 65inch)
Brightness250cd/m2
anglehorizontal 100°above;Vertical 80°above
Contrast1000:1
Backlight tube lifemore than 40,000hours
Max. resolution1280×1024
Touch screenScreen Size19 inch Diagonal ( optional from 8inch to 65inch)
Resolution4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt / Ticket PrinterInterfaceHigh Speed USB
Resolution4800*1200 maximum
Printing speed4.8 ipm
Width58 /80 /112 mm
LengthCustomizable

Webcam



Resolution1280*720
Pixel8000000
Adaptive Resolution1280*720
InterfaceUSB 2.0
DriverNo
Contactless IC / RF / NFC card readerStatus DisplayLED indicator to show the power or communication status
Card Type ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
TypeSupport  ISO14443
2D barcode scannerReadable Code CMOS
Resolution  752*480
Readable Code2D PDF417, QR Code(Model 1/2),  DataMatrix(ECC200, ECC000, 050, 080, 100,140),     Aztec, Maxicode, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc
 ApprovalFCC Part15 Class B, CE EMC Class B
Work VoltageDC 5V (4.5-5.5V)
InterfaceRS232, USB
Wireless moduleWLAN moduleWith industrious antenna exposure
LED light advertising boxBlue / White / Red light as optional,size as optional,poster can be removable
SpeakersFeaturesDual channel amplified speakers for Stereo ,8Ω 5W
Digital Power SupplyAC input voltage range100~240VAC
Frequency50Hz to 60Hz
AC input voltage range100~240VAC
Frequency50Hz to 60Hz
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation SystemWindows 7 or Windows XP operation system without license
Free standing CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackageSecurity Packing method with bubble foam and wooden case



Other Optional hardware components List is as following:


  1. Metal keyboard with track ball / touch pad
  2. Encrypted Pinpad
  3. Manual magnetic stripe card reader
  4. Coin / Cash acceptor
  5. Coin / Cash dispenser
  6. Fingerprint scanner
  7. Palm vein scanner
  8. WIFI or 3G Wireless module
  9. ID / Driver licence / Social insurance card double-side scanner
  10. A4 printer



Multi-function:


  • Convenience store
  • Grocery store
  • Amusement park
  • Hypermarket
  • Retail chain store
  • School
  • Pharmacy
  • Clinic
  • ATM / VTM / ITM booth
  • Airplane boarding room
  • High railway waiting room
  • Tourism spots
  • Hospital
  • Bank
  • Retailer store
  • Human resources room
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Other Public area



Advantages:


  • All modular components  work together, but can be tested independently.

  • For interactivity, personalization, loyalty programs and social media exposure

  • Designed to eventually allow customers online shopping and fulfillment options
  • Accomplish multiple tasks in a single multi-function kiosk



Appearance:


  • Noble and elegant design,robust and safe building
  • Cabinet with feature of anti-vandal,anti-dust,anti-rust,anti-vandalism,anti-scratching,waterproof
  • Color and LOGO painting as customizable

Cashless Dual Screen Kiosk Tickets Picking Up , No Payment Involvement 0



The Reason Why You choose LKS:


  1. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba;
  2. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  3. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  5. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration.

 Cashless Dual Screen Kiosk Tickets Picking Up , No Payment Involvement 1
