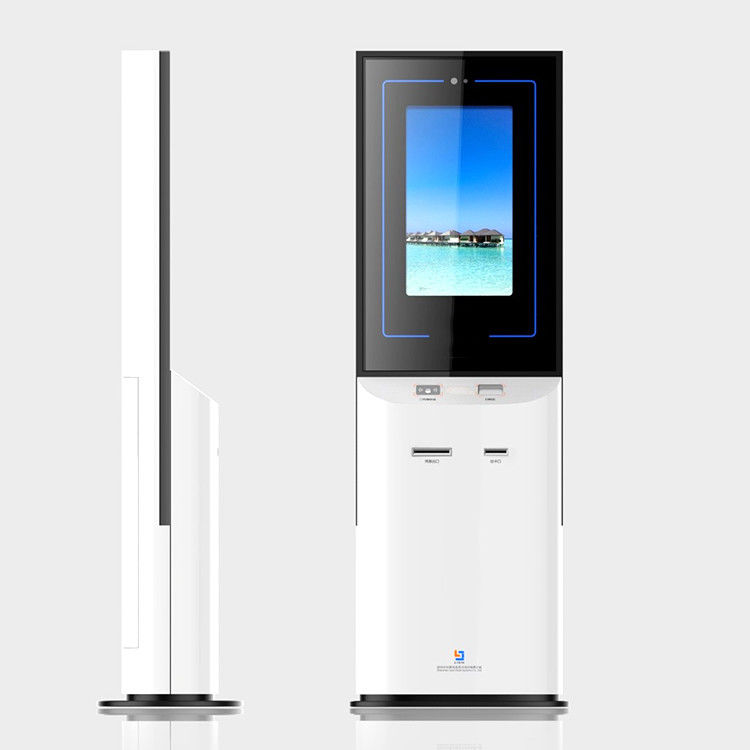

Ticket Vending E - Payment Kiosk Thermal Printer Finger Print Reader

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8514
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
  • Detail Information
  • Product Description

Detail Information

Kiosk Type:: Kiosk Design Ideas Application:: Banking, Retail,Post, Transport, Library,
Thickness Of Enclosure: 1.5mm Or 3.0mm Or Upon Clients Brand: LKS
Supported OS: Windows 7 Or Windows Xp /2003 Or Linux Or Unix Screen Size:: Customize
High Light:

interactive touch screen kiosk

,

interactive information kiosk

Product Description

product introdution

   Touch Screen Information Kiosk (hereinafter referred to one machine) is one of the most convenient, simple, natural, human-computer interaction and practical device that combines computer technology, multimedia technology, audio technology, network technology, industry modeling technology, manufacturing technology, streamlined integration of design, sleek. One of the machines generally include a touch screen monitors, computers, audio equipment, power supplies, and touch, the power input devices and a variety of network interfaces. One machine has gradually into our daily lives, can be seen everywhere in government offices, banks, hospitals, places of entertainment. My company's one-touch collection of practicality, stability, aesthetics, durability, ease of operation and one, I am using Samsung, LG and other famous international brands of monitors, high-quality infrared touch screen, a host of high-end configuration, professional research team to ensure the stability of product quality, durable, professional and technical personnel and improve after-sales service allows you to worry.

Custom Ticket Vending  E-Payment Kiosk with Thermal Printer and Finger Print Reader​ ​​​​:

  • Industrious PC
  • Webcamera
  • Smart card reader
  • 17 inch IR touch screen
  • Speaker
  • Free standing single screen cabinet
  • Wireless Module
  • Receipt Printer
  • ID Card Reader

Standard hardware components List  is as following :



ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM2GB /4 GB / 8GB
HDD500G
Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power SupplyHUNTKEY/Great Wall
LCD monitorScreen Size17 inch/19inch ( optional from 8inch to 65inch)
Brightness250cd/m2
anglehorizontal 100°above;Vertical 80°above
Contrast1000:1
Backlight tube lifemore than 40,000hours
Max. resolution1280×1024
Touch screenScreen Size17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt thermal printerAutocutterincluded
TechnologyThermal printing
Paper width80mm
Printing speed150mm/s
Data buffer4KB
InterfaceRS232 ,USB
Digital Power SupplyAC input voltage range100‐240VAC
Frequency50Hz to 60Hz
Output over current protection110~130%
AC input voltage range100‐240VAC
Frequency50Hz to 60Hz
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation SystemWindows 7 or Windows XP operation system without license
KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackingSecurity Packing method with bubble foam+wooden case






 List of  Custom Ticket Vending  E-Payment Kiosk with Thermal Printer and Finger Print Reader is as following:


  • 1.   Card dispenser
  • 2.   Metal keyboard with trackball
  • 3.   Fingerprint reader
