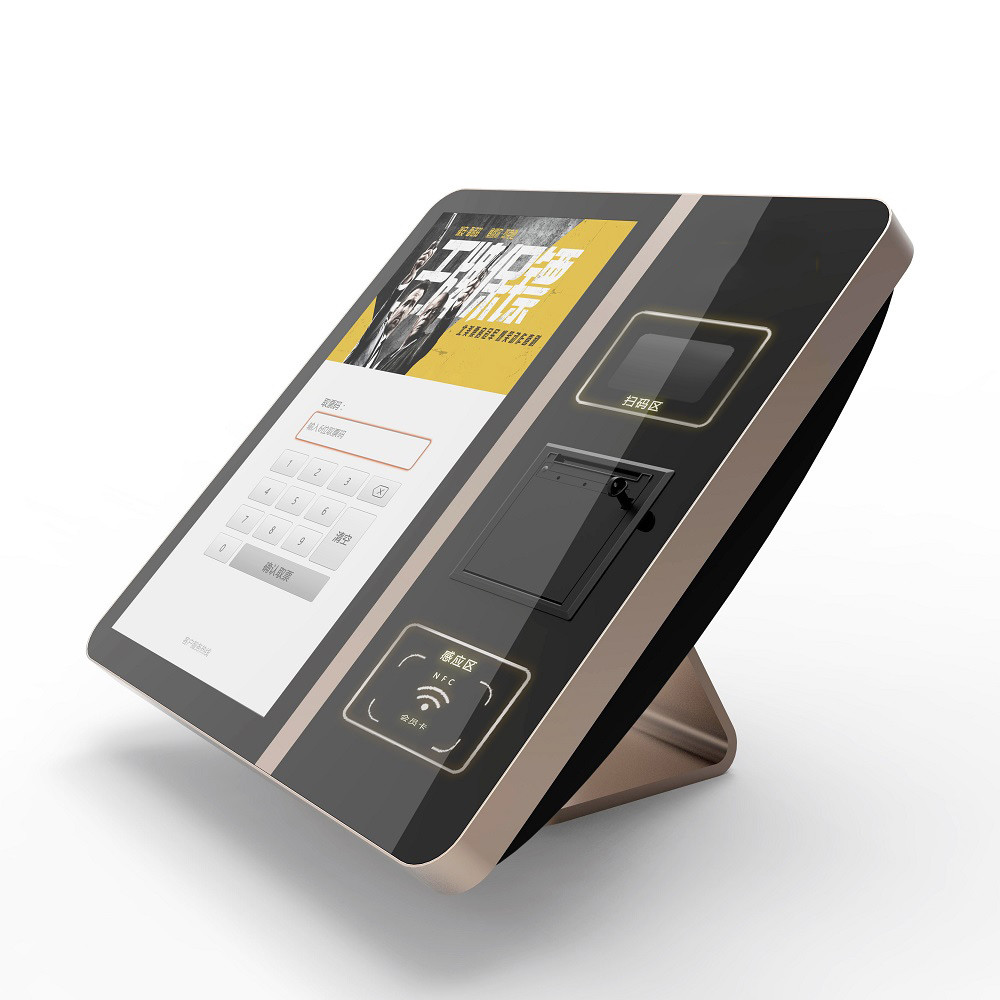

Cinema Ticket Vending Kiosk

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8233

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Price: USD800~20000

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
Highlight:

interactive touch screen kiosk

,

interactive information kiosk

Kiosk Type::
Kiosk Design Ideas
Brightness:
250cd/㎡
Supported OS:
Windows 7 Or Windows Xp /2003 Or Linux Or Unix
Material Feature:
Anti-dust, Anti-vandal
Kiosk Type::
Kiosk Design Ideas
Brightness:
250cd/㎡
Supported OS:
Windows 7 Or Windows Xp /2003 Or Linux Or Unix
Material Feature:
Anti-dust, Anti-vandal
Product Description

  company introdution



   Shenzhen Lean Kiosk Systems Co.,LTD ( LKS for short as following ) is a professional kiosk manufacturer engaged in all kinds payment kiosk, information kiosk, touch screen kiosk, ticket dispenser kiosk, banking kiosk, simple ATM kiosk, advertising kiosk, outdoor kiosk, self-service vending machine etc.

   LKS kiosk products have been widely applied to bank, hospital, cinema, super market, convenient store, shopping mall, restaurant, metro station, bus station, gas station, exhibition hall, museum, airport, real estate property and other public areas.  LKS is with his own professional design team, R& D team, purchase team, production team, sales team, inspection team and after-sale services team. LKS pay more attention to the best quality products, quick response and warmest services to customers all over the world.  We offers standard kiosk products as well as customization services to meet customer's specific requirements. With our experienced teams, we have the capability to design and develop the best quality products that will make you stand out against competitors. We are dedicated to working with you to provide solutions to suit your needs and applications.



Vending Machine Kiosk Business Manufacturers Self Service Kiosk Market​ ​​​​:

  • Industrious PC
  • 21inch top LCD monitor for advertising
  • Webcamera
  • A4 laser printer
  • High speed video shooting
  • Smart card reader
  • 2D barcode scanner
  • Cash acceptor
  • Coin acceptor
  • 17 inch IR touch screen
  • Speaker
  • Free standing single screen cabinet
  • Wireless Module
  • Receipt Printer
  • ID Card Reader
  • Metal Keyboard with Trackball or Touchpad(64 Keys)

Standard hardware components List  is as following :



Main Components Main specifications
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 320G/ 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;
PC Power Supply HUNTKEY/Great Wall
top LCD Display for advertising Screen Size 19inch
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
below LCD monitor Screen Size 17inch
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
below touch screen Screen Size 17 inch Diagonal
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift‐span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
cash acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Coin Accepted Size Coin diameter: 15-31.5mm ( optionally up to 32.5mm)
Coin thickness: 1.5-2.5mm ( optionally bis 3.3mm)
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Transient time ≦10ms
Max time for supplying a single PC 5~20minutes (for single PC)
Digital Power Supply AC input voltage range 100‐240VAC
Frequency 50Hz to 60Hz
Output over current protection 110~130%
AC input voltage range 100‐240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system for test
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam+wooden case






 List of Vending Machine Kiosk Business Manufacturers Self Service Kiosk Market is as follows:



  • 1.   Card dispenser
  • 2.   Metal keyboard with trackball
  • 3.   Fingerprint reader



Cinema Ticket Vending Kiosk 0Cinema Ticket Vending Kiosk 1Cinema Ticket Vending Kiosk 2
