Shenzhen Lean Kiosk Systems Co., Ltd. frank@lien.cn 00-86-18664576557
Product Details
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8907A
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Material Of Anti-peeping: |
Privacy Glass |
Application: |
Indoor |
Display: |
1*22'' Landscape Display;1*22'' Portrait Display;1*17'' Touchable Display |
Type Of Card To Be Read: |
NFC / RFID Card |
Function: |
Self Payment,advertising Display,lottery Ticket Printing |
Type: |
Top Up Single Screen With Advertising Playing Screen At Middle |
Others: |
Anti-glare,three Screens |
2D Barcode Type: |
2D PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140),Aztec, Maxicode, Etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 Of 5 ISBN, Code 93, UCC/EAN-128, GS1 Databar |
Size Of Card: |
ISO Standard,56*84mm |
Size Of Lottery Ticket: |
56 / 76 / 80 / 112 Mm In Width,optional In Length;customizable Lottery Ticket |
Warranty Period: |
12month For Components Since Shipment |
Material Of Anti-peeping: |
Privacy Glass |
Application: |
Indoor |
Display: |
1*22'' Landscape Display;1*22'' Portrait Display;1*17'' Touchable Display |
Type Of Card To Be Read: |
NFC / RFID Card |
Function: |
Self Payment,advertising Display,lottery Ticket Printing |
Type: |
Top Up Single Screen With Advertising Playing Screen At Middle |
Others: |
Anti-glare,three Screens |
2D Barcode Type: |
2D PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140),Aztec, Maxicode, Etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 Of 5 ISBN, Code 93, UCC/EAN-128, GS1 Databar |
Size Of Card: |
ISO Standard,56*84mm |
Size Of Lottery Ticket: |
56 / 76 / 80 / 112 Mm In Width,optional In Length;customizable Lottery Ticket |
Warranty Period: |
12month For Components Since Shipment |

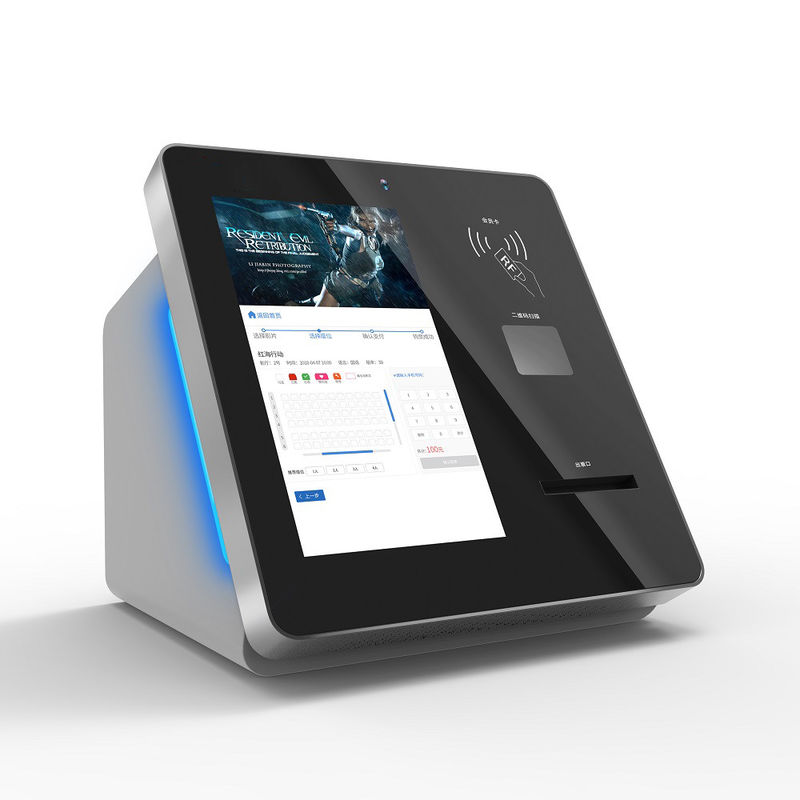

Customized Self Payment Kiosk , Ticket Vending Machine In Movie Theater
Hot Sale Customized Self Payment Kiosk Machine For Ticket Selling In Movie Theater
is developed specifically for Payment use in Bank, Hospital, Railway Station, Metro Station, Parking Lot, Theatre, Shopping Mall, etc.
Hot Sale Customized Self Payment Kiosk Machine For Ticket Selling In Movie Theater / payment kiosk / best sell kiosk is manufactured in Cold-Roll Steel Sheets using steel plate of 1,5mm to 2.5mm which ensures the stability and rigidity of all structure.
Customized Self Payment Kiosk Machine For Ticket Selling In Movie Theater, payment kiosk, best sell kiosk are including touch screen self payment kiosk, touch screen bill payment kiosk, Coin Operated Wifi Kiosk ,Touch Screen Display self service payment kiosk, payment terminal atm kiosk, Kiosk On Wheels Kiosk, swipe card reader kiosk, self payment terminal kiosk, Kiosk Design Ideas wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk , pinpad payment kiosk,etc.
Standard configuration:
Specification is as following:
| Components | Details | |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Intel Dual Core G2020 | |
| RAM | 2 GB | |
| HDD | 500G | |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | HUNTKEY/Great Wall | |
| LCD monitor | Screen Size | 22 / 17 inch ( optional from 8inch to 65inch) |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280×1024 | |
| Touch screen | Screen Size | inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Receipt / Ticket Printer | Interface | High Speed USB |
| Resolution | 4800*1200 maximum | |
| Printing speed | 4.8 ipm | |
| Width | 58 /80 /112 mm | |
| Length | Customizable | |
Webcam
|
Resolution | 1280*720 |
| Pixel | 8000000 | |
| Adaptive Resolution | 1280*720 | |
| Interface | USB 2.0 | |
| Driver | No | |
| NFC card reader | Status Display | LED indicator to show the power or communication status |
| Card Type | ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight | |
| Type | Support ISO14443 | |
| 2D scanner | Readable Code | CMOS |
| Resolution | 752*480 | |
| Readable Code | 2D PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxicode, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc | |
| Approval | FCC Part15 Class B, CE EMC Class B | |
| Work Voltage | DC 5V (4.5-5.5V) | |
| Interface | RS232, USB | |
| Wireless module | WLAN module | With industrious antenna exposure |
| Motorized card reader | Card type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card |
| Magnetic Head Life | 500,000/min | |
| IC Card Touch Port | 300,000/min | |
| Speakers | Features | Dual channel amplified speakers for Stereo ,8Ω 5W |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| AC input voltage range | 100~240VAC | |
| Frequency | 50Hz to 60Hz | |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Operation System | Windows 7 or Windows XP operation system without license | |
| Free standing Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Package | Security Packing method with bubble foam and wooden case | |
Other Optional hardware components List is as following:
Description
Application
Our Advantages:
Cost-saving solution
Design for 24 / 7 Operation
Two ticket printers,reducing frequency of maintenance
Appearance
