Home > products > Check In Kiosk > Cash Payment Hotel Check In Kiosk 24 Inch Touch Monitor Thermal Paper Coupon Material

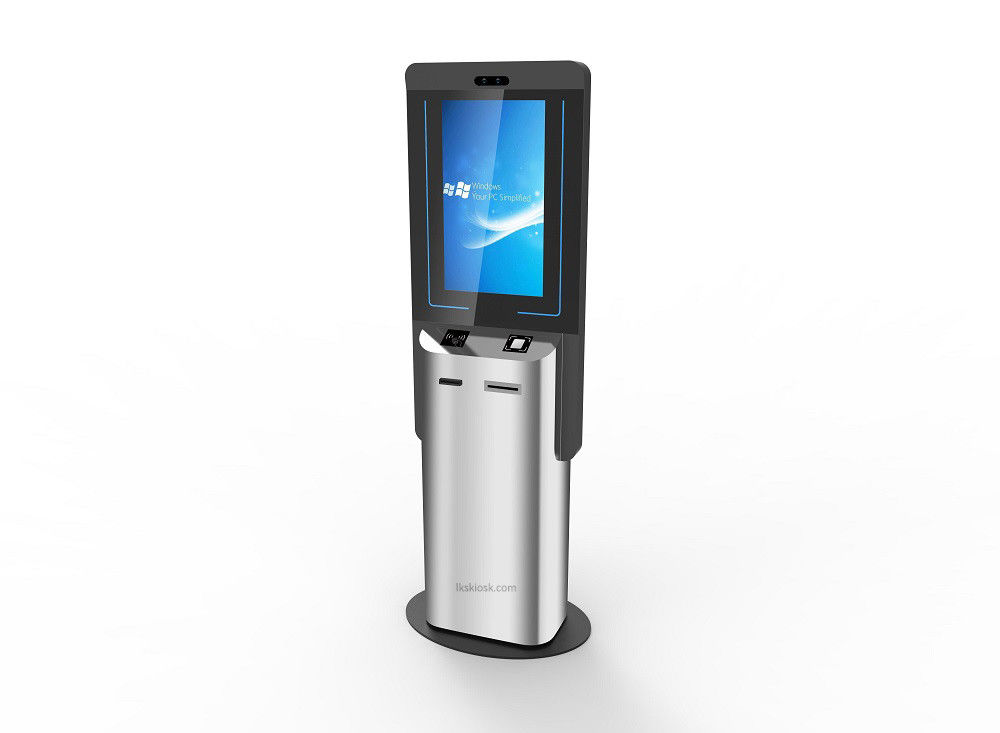

Cash Payment Hotel Check In Kiosk 24 Inch Touch Monitor Thermal Paper Coupon Material

Product Details

Place of Origin: China

Brand Name: LKS / OEM / ODM

Certification: CE, FCC

Model Number: LKS8386

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

touch screen information kiosk

,

self service check in kiosk

,

220V Check In Kiosk

Power Supply:
110-120V, 220V-240V Or Optional
Other:
Huge Space For Housing Recycling Stuff
Touch Monitor:
24 Inch
Registration:
By Cell Phone
Coupon Material:
Thermal Paper
Power Supply:
110-120V, 220V-240V Or Optional
Other:
Huge Space For Housing Recycling Stuff
Touch Monitor:
24 Inch
Registration:
By Cell Phone
Coupon Material:
Thermal Paper
Product Description

Cash Payment Hotel Check In Kiosk 24 Inch Touch Monitor Thermal Paper Coupon Material

Standard configuration:

  1. 24"  LCD display for advertising
  2. 24'' IR touch screen
  3. Industrious PC
  4. Receipt printer
  5. Barcode scanner
  6. Webcam
  7. Member card reader
  8. Speaker


Standard hardware components List is as following:


Components

Details

PC system

Industrial Board

Seavo/ Gigabyte/Advantech AIMB 562

CPU

Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7

RAM

2GB /4 GB / 8GB

HDD/SSD

HDD 1TB ,SSD 128G/256G

Interface

6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card

PC Power Supply

HUNTKEY/Great Wall

LCD monitor

Screen Size

32 inch ( optional from 8inch to 65inch)

Brightness

250cd/m2

angle

horizontal 100°above;Vertical 80°above

Contrast

1000:1

Backlight tube life

more than 40,000 hours

Max. resolution

1280×1024

Touch screen

Screen Size

32 inch Diagonal ( optional from 8inch to 65inch)

Resolution

4096x4096

High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times

2D barcode scanner

Code

 2D PDF417, QR Code(Model 1/2),  DataMatrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxicode, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc

Certification

FCC Part15 Class B, CE EMC Class B

Interface

USB,RS232

Member Card /RFID Card Reader

Interface

Support  ISO14443

Card Type

ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight

Status Display

LED indicator to show the power or communication status

Operated Temperature

from -20 to +60ºC

Epson receipt thermal printer

Autocutter

included

Technology

Thermal printing

Paper width

80mm

Printing speed

150mm/s

Data buffer

4KB

Interface

RS232 ,USB

Webcam

Resolution

1280*720

Pixel

8,000,000

Adaptive Resolution

1280*720

Interface

USB 2.0

Driver

NO

Speaker Dual channel amplified speakers for Stereo , 8Ω 5W.

Digital Power Supply

AC input voltage range

100~240VAC

Frequency

50Hz to 60Hz

AC input voltage range

100~240VAC

Accessories

Wire-lan port, USB ports, speakers, fans, cables, screws, etc.

Operation System

Windows 7 or Windows XP operation system without license

KIOSK Cabinet

Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.

Packing

Security Packing method with bubble foam and wooden case



Cash Payment Hotel Check In Kiosk 24 Inch Touch Monitor Thermal Paper Coupon Material
Other Optional hardware components List is as following:

  1. LCD Advertising screen on top
  2. Cash / Coin dispenser
  3. Bank card reader
  4. A4 document printer
  5. Barcode Scanner 1D, 2D, PDF, and QR
  6. Webcam
  7. Speaker
  8. Wireless Module
  9. Fingerprint reader

Cash Payment Hotel Check In Kiosk 24 Inch Touch Monitor Thermal Paper Coupon Material :
Multifunction:

  • Movie Theater
  • Citizen Community
  • School
  • Library
  • Government agent
  • Park
  • Air port station
  • Railway Station
  • Hotel
  • Gas station
  • Parking Lot
  • Banks
  • Metro Station
  • Restaurant
  • Shopping Mall
  • Other Public areas



Our Advantages:

Elegant Appearance
Multi-color processed surface

  • Attractive decoration
  • Regular elegant design
  • High-quality design sketch
  • Human engineering verification
  • Attract end customer


Low Cost Solution
Stable-quality hardware components

  • Built on widely used stable proven technology
  • Complete supply chain management
  • Easy of Operation
  • Modular design for easy maintenance


Designed for 24 / 7 operation


  • Tightly integrated hardware and software
  • Highly responsive user interaction
  • vandal resistant components
