Product Details
Place of Origin: China
Brand Name: LKS / OEM / ODM
Certification: CE, FCC
Model Number: LKS8356A
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Working Condition: |
Fully Outdoor Under Rain,snow And Wind |
Working Temperature: |
-10℃ To 60℃ |
Storage Temperature: |
-20℃ To 65℃ |
Water Resistence: |
Waterproof,IP54 Rating |
Protection: |
Shelter From Direct Sunlight And Rain,snow |
Bank Card: |
Credit Or Debit Card |
Working Condition: |
Fully Outdoor Under Rain,snow And Wind |
Working Temperature: |
-10℃ To 60℃ |
Storage Temperature: |
-20℃ To 65℃ |
Water Resistence: |
Waterproof,IP54 Rating |
Protection: |
Shelter From Direct Sunlight And Rain,snow |
Bank Card: |
Credit Or Debit Card |

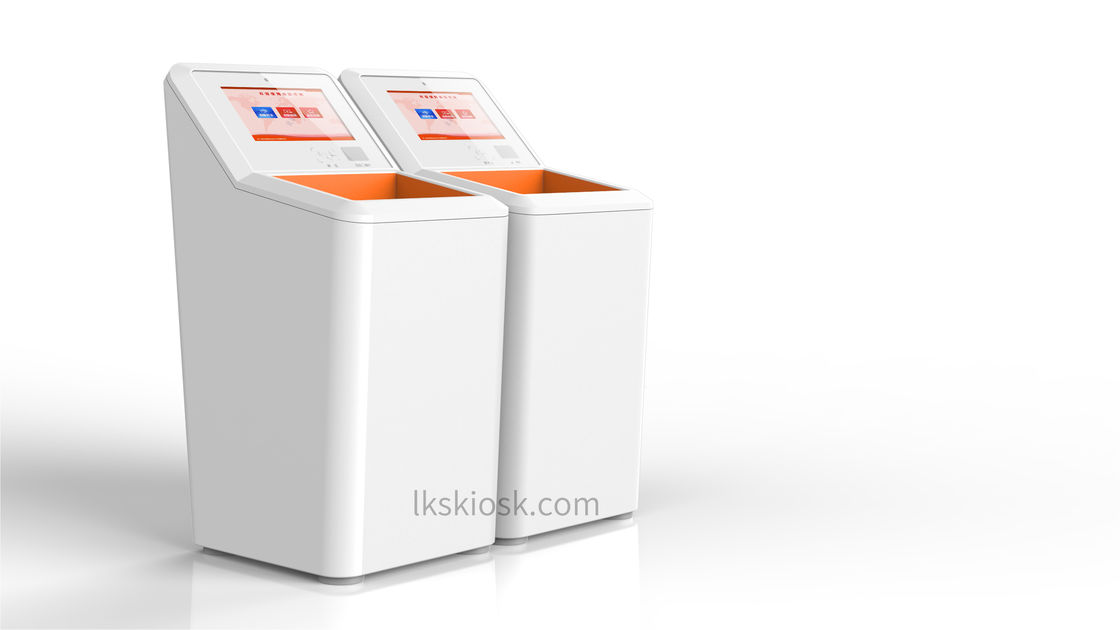

17 inch Self-Checkout Kiosk for Unattended Convenience store/Supper Market ,Save Labor cost, Improve efficiency.
Standard configuration:
Standard hardware components List is as following:
|
Components |
Details |
|
|
PC system |
Industrial Board |
Seavo/ Gigabyte/Advantech AIMB 562 |
|
CPU |
Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 |
|
|
RAM |
2GB /4 GB / 8GB |
|
|
HDD/SSD |
1TB, 128/256G |
|
|
Interface |
6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card |
|
|
PC Power Supply |
HUNTKEY/Great Wall |
|
|
LCD monitor |
Screen Size |
19 inch ( optional from 8inch to 65inch) |
|
Brightness |
1000 cd/m2 |
|
|
angle |
horizontal 100°above;Vertical 80°above |
|
|
Contrast |
1000:1 |
|
|
Backlight tube life |
more than 40,000 hours |
|
|
Max. resolution |
1280×1024 |
|
|
Touch screen |
Screen Size |
19 inch Diagonal ( optional from 8inch to 65inch) |
|
Resolution |
4096x4096 |
|
|
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times |
||
|
2D barcode scanner |
Code |
2D PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxicode, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc |
|
Certification |
FCC Part15 Class B, CE EMC Class B |
|
|
Interface |
USB,RS232 |
|
|
Bank Card Reader |
Magnetic head life |
500,000/min |
|
Card Type |
Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card |
|
|
IC Card Touch Port |
300,000/min |
|
|
Epson receipt thermal printer |
Autocutter |
included |
|
Technology |
Thermal printing |
|
|
Paper width |
80mm |
|
|
Printing speed |
150mm/s |
|
|
Data buffer |
4KB |
|
|
Interface |
RS232 ,USB |
|
|
Webcam |
Resolution |
1280*720 |
|
Pixel |
8,000,000 |
|
|
Adaptive Resolution |
1280*720 |
|
|
Interface |
USB 2.0 |
|
|
Driver |
NO |
|
| Speaker | Dual channel amplified speakers for Stereo , 8Ω 5W. | |
|
Digital Power Supply |
AC input voltage range |
100~240VAC |
|
Frequency |
50Hz to 60Hz |
|
|
AC input voltage range |
100~240VAC |
|
|
Accessories |
Wire-lan port, USB ports, speakers, fans, cables, screws, etc. |
|
|
Operation System |
Windows 7 or Windows XP operation system without license |
|
|
KIOSK Cabinet |
Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. |
|
|
Packing |
Security Packing method with bubble foam and wooden case |
|
Other Optional hardware components List is as following:
Multifunction:
Our Advantages:
Elegant Appearance
Low Cost Solution
Designed for 24 / 7 operation
LKS Factory Tour-Process Of Followsheet
LKS Factory Tour- Kiosk Mass Producing.
LKS Certificates :
LKS Factory tour-Receiption Desk.
LKS Office
LKS Shipping Terms
Welcome to contact us and send inquiry now!
