Check in Kiosk, Check out Kiosk/Self Service Check In Kiosk. Custom Design are offered on Demand by LKS

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8360

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
Highlight:

airport check in kiosk

,

touch screen information kiosk

,

Custom Self Service Check In Kiosk

OS:
Win 7/8/10 Or Above
Design:
Custom Design Are Offered On Demand
Display:
17-22 Inch IR Touch Display
OS:
Win 7/8/10 Or Above
Design:
Custom Design Are Offered On Demand
Display:
17-22 Inch IR Touch Display
Product Description

Check in Kiosk, Check out Kiosk/Self Service Check In Kiosk. Custom Design are offered on Demand by LKS

  1. Supported OS: windows 7 , Windows 8 or Linux
  2. Touch Screen: IR/SAW/Capacitive
  3. Display: LCD, TFT, AUO or others
  4. Kiosk Color: upon the customer’s request
  5. Logo: By customer’s needs
  6. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  7. Material Feature:Anti-dust, Anti-vandal
  8. optional size of screen: 17inch, 19inch or upon customers’ request
  9. Application: Indoor
  10. Parts: Passport Reaser/ Barcode Scanner/ Thermal printer….
  11. Warranty: 1 year
  12. Power supply: 110-120V, 220V-240V or optional
  13. Type: Check In Kiosk ,Touch Screen Information Kiosk, touchscreen kiosk

Standard hardware components List of Check in Kiosk, Check out Kiosk/Self Service Check In Kiosk. Custom Design are offered on Demand by LKS  is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case


Other Optional hardware components List of Check in Kiosk, Check out Kiosk/Self Service Check In Kiosk. Custom Design are offered on Demand by LKS  as following:

  1. Passport reader
  2. Web camera
  3. Cash dispenser
  4. Coin dispenser
  5. Advertising screen
  6. Barcode scanner
  7. Wireless Moduls
  8. A4 Laser printer
  9. RFID Card reader
  10. Metal Keyboard with Trackball or Touchpad(64 keys)

Description

  1. LKS Check In Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  2. LKS is a Check In Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  3. LKS Check In Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS main Check In Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.


Multifunction:

  • Theatre
  • Railway Station
  • Metro Station
  • Bus station
  • Banks
  • Hotel
  • Hospital
  • Parking Lot
  • Shopping Mall
  • Other public areas

Our Advantages:

Low Cost Solution

  • Complete supply chain management
  • Easy of Operation
  • Built on widely used stable provden technology
  • Modular design for easy maintenance
  • Stable-quality hardward components


Elegant Appearance

  • Attract end customer
  • Multi-color processed surface
  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design
  • Human engineering verification



Designed for 24 / 7 operation

  • Highly responsive user interaction
  • Tightly integrated hardwre and software
  • vandal resistant components

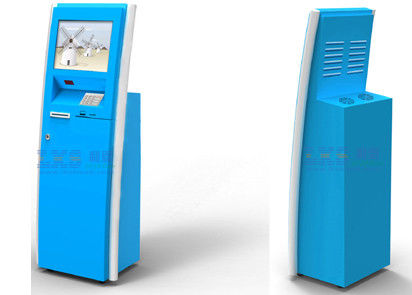

Main designs of Check in Kiosk, Check out Kiosk/Self Service Check In Kiosk. Custom Design are offered on Demand by LKSCheck in Kiosk, Check out Kiosk/Self Service Check In Kiosk. Custom Design are offered on Demand by LKS 0
