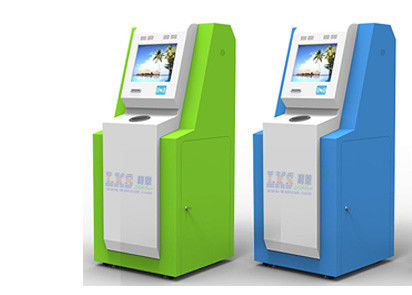

ATM Machine/Payment Kiosk/Payment Machine with Security Components and Custom Desgin from LKS China

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS6330C

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in advance

Supply Ability: 1000 units per month

Get Best Price
Product Details
Highlight:

automatic teller machine

,

kiosk atm machine

,

Payment Machine with Security Components

OS:
Win7/8/10
Color:
On Demand
Design:
On Demand
OS:
Win7/8/10
Color:
On Demand
Design:
On Demand
Product Description

ATM Machine/Payment Kiosk/Payment Machine with Security Components and Custom Desgin from LKS China

  1. Touch Screen: IR/SAW/Capacitive
  2. Display: LCD, TFT, AUO or others
  3. optional size of screen: 17inch, 19inch 32inch or upon customers’ request
  4. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  5. Material Feature:Anti-dust, Anti-vandal
  6. Type: Photo Print kiosk ,Touch Screen Information Kiosk, touchscreen kiosk
  7. Parts: Sensor / RFID Card reader / receipt printer….
  8. Application: Indoor / Outdoor
  9. Supported OS: windows 7, windows 8 or Linux
  10. Kiosk Color: upon the customer’s request
  11. Logo: By customer’s needs
  12. Warranty: 1 year
  13. Power supply: 110-120V, 220V-240V or optional


Standard hardware components List o fATM Machine/Payment Kiosk/Payment Machine with Security Components and Custom Desgin from LKS China  is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case


Other Optional hardware components List of  ATM Machine/Payment Kiosk/Payment Machine with Security Components and Custom Desgin from LKS China  is as following:

  1. Advertising screen
  2. RFID Card reader
  3. Barcode scanner
  4. Coin dispenser
  5. Web camera
  6. Passport reader
  7. Wireless Module
  8. Full-Contact IC Card Reader

Description


  1. LKS Recycling Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  2. LKS Recycling Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  3. LKS main Recycling Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  4. LKS is a Recycling Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.

Multifunction:

  • Railway Station
  • Metro Station
  • Banks
  • Hotel
  • Hospital
  • Theatre
  • Shopping Mall
  • Other public areas

Our Advantages:


Low Cost Solution

  • Modular design for easy maintenance
  • Stable-quality hardward components
  • Easy of Operation
  • Built on widely used stable provden technology
  • Complete supply chain management

Elegant Appearance

  • Regular elegant design
  • Attract end customer
  • Multi-color processed surface
  • Human engineering verification
  • Attractive decoration
  • High-quality design sketch



Designed for 24 / 7 operation

  • Tightly integrated hardwre and software
  • Highly responsive user interaction
  • vandal resistant components



Main designs of  Intelligent Recycling Machine Store Money in Mobile Phone Kiosk With Wireless Module Sensor
