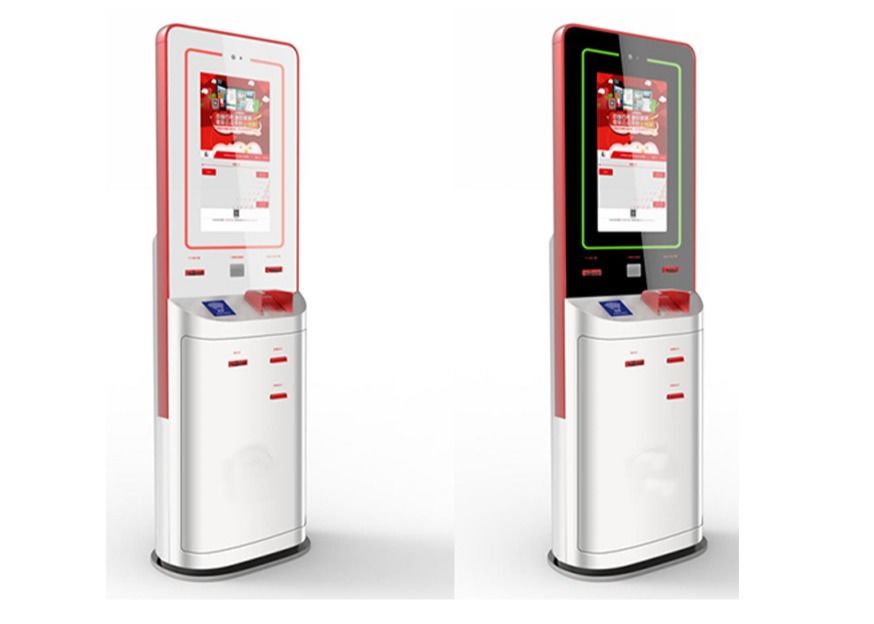

Custom High Resolution Bill Payment Kiosk With Coin Acceptor / Cash Payment

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8381A

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
Highlight:

atm kiosk

,

self service payment kiosk

,

High Resolution Bill Payment Kiosk

Product Description

 Custom High Resolution Bill Payment Kiosk With Coin Acceptor / Cash Payment


Main functions :


  1. Type: Touch Screen kiosk, Bill Payment Kiosk, Standing kiosk,
  2. Application: Indoor
  3. Display:TFT,LCD, AUO or others
  4. Logo:By customer’s needs
  5. Supported OS: windows 8 or windows 7 or Linux
  6. optional size of screen: 17inch, 19inch or upon customers’ request
  7. Touch Screen: SAW/IR/Capacitiveself-service Bill payment kiosk with card scanner
  8. Kiosk Color: upon the customer’s request
  9. Material Feature: Anti-vandal, Anti-dust
  10. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  11. Parts: Cash acceptor/RFID Card Reader/receipter printer….
  12. Warranty: 1 year
  13. Power supply:110-120V, 220V-240V, or optional



Description:


  1. LKS bill payment kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  2. LKS is a professional payment kiosk manufacturers and payment kiosk supplier in China. It provides the bill payment kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  3. LKS bill payment kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  4. LKS main bill payment kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.



Applications:


  • Banks
  • Hotel
  • Hospital
  • Theatre
  • Restaurant
  • Railway Station
  • Metro Station
  • Parking Lot
  • Shopping Mall


All In One Bill Payment Kiosk With Coin Acceptor / Cash Payment Kiosk is designed having in mind the components that can integrate. The transact is the chameleon of the kiosks, because it can easily adapt the needs of each client.

Standard hardware components List of  All In One Bill Payment Kiosk With Coin Acceptor / Cash Payment Kiosk is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case




 Other Optional hardware components List of All In One Bill Payment Kiosk With Coin Acceptor / Cash Payment Kiosk is as following:


  1. Cash dispenser
  2. Coin dispenser
  3. Advertising screen
  4. Barcode scanner
  5. Passport reader
  6. Web camera
  7. A4 Laser printer
  8. Card Dispenser


Main designs of  All In One Bill Payment Kiosk With Coin Acceptor / Cash Payment Kiosk:
