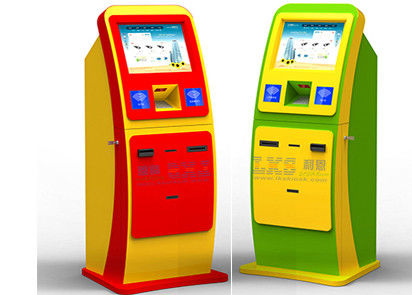

Capacitive Touch Screen Vending Bill Payment Kiosk With Magnetic Card Reader

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8327C

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

cash payment kiosk

,

atm kiosk

,

Touch Screen Vending Bill Payment Kiosk

Product Description

Capacitive Touch Screen Vending Bill Payment Kiosk With Magnetic Card Reader

Touch Screen Vending Kiosk for Bill Payment Kiosk Use With Magnetic Card Reader:

Main functions :

  1. Type:Bill Payment Kiosk, self-service kiosk, touchscreen kiosk
  2. Application: Indoor
  3. Supported OS: windows 7 or windows 8 or Linux
  4. optional size of screen: 17inch, 19inch or upon customers’ request
  5. Touch Screen: IR/SAW/Capacitive
  6. Display:TFT,LCD,  AUO or others
  7. Kiosk Color: upon the customer’s request
  8. Material Feature:Anti-dust, Anti-vandal
  9. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  10. Logo:Upon clients
  11. Parts: Cash acceptor/Coin acceptor/Card reader/receipter printer….
  12. Warranty: 1 year
  13. Power supply: 110-120V, 220V-240V or optional

Description:

  1. LKS is a professional Bill Payment Kiosk manufacturers and payment kiosk supplier in China. It provides the bill payment kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS bill payment kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  3. LKS bill payment kiosk is manufactured by 1.5mm-3mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS main bill payment kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.

Applications:

  • Banks
  • Hotel
  • Hospital
  • Theatre
  • Railway Station
  • Metro Station
  • Parking Lot
  • Shopping Mall

 Touch Screen Vending Kiosk for Bill Payment Kiosk Use With Magnetic Card Reader are including touch screen self payment kiosk, touch screen bill payment kiosk, self service payment kiosk, payment terminal atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk , pinpad payment kiosk,etc.

Standard hardware components List of Touch Screen Vending Kiosk for Bill Payment Kiosk Use With Magnetic Card Reader is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Packing Security Packing method with bubble foam and wooden case


Other Optional hardware components List of Touch Screen Vending Kiosk for Bill Payment Kiosk Use With Magnetic Card Reader is as following:

  1. Cash dispenser
  2. Coin dispenser
  3. Advertising screen
  4. Barcode scanner
  5. Passport reader
  6. Web camera
  7. A4 Laser printer
  8. Card Dispenser

Main designs of LKS Touch Screen Vending Kiosk for Bill Payment Kiosk Use With Magnetic Card Reader:

Capacitive Touch Screen Vending Bill Payment Kiosk With Magnetic Card Reader 0
Capacitive Touch Screen Vending Bill Payment Kiosk With Magnetic Card Reader 1
Capacitive Touch Screen Vending Bill Payment Kiosk With Magnetic Card Reader 2
Capacitive Touch Screen Vending Bill Payment Kiosk With Magnetic Card Reader 3
