LCD TFT Screen Card Dispenser Prepaid Card Vending Machine Cash Acceptor Payment Kiosk

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8327E

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

custom kiosks

,

prepaid card kiosk

,

TFT Screen Prepaid Card Vending Machine

Product Description

 LCD TFT Screen Card Dispenser Prepaid Card Vending Machine Cash Acceptor Payment Kiosk


  1. Touch Screen: IR/SAW/Capacitive
  2. Display: LCD, TFT, AUO or others
  3. optional size of screen: 17inch, 19inch 32inch or upon customers’ request
  4. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  5. Material Feature:Anti-dust, Anti-vandal
  6. Type: Photo Print kiosk ,Touch Screen Information Kiosk, touchscreen kiosk
  7. Parts: Cash acceptor/Passport Reader/RFID Card reader/receipt printer….
  8. Application: Indoor
  9. Supported OS: windows 7, windows 8 or Linux
  10. Kiosk Color: upon the customer’s request
  11. Logo: By customer’s needs
  12. Warranty: 1 year
  13. Power supply: 110-120V, 220V-240V or optional



Standard hardware components List of LKS Touch Screen Card Dispenser Prepaid Card Vending Machine Cash Acceptor Payment Kiosk ​​ ​​is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case


Other Optional hardware components List of  LKS Touch Screen Card Dispenser Prepaid Card Vending Machine Cash Acceptor Payment Kiosk ​​ ​is as following:



  1. Advertising screen
  2. RFID Card reader
  3. Barcode scanner
  4. Cash dispenser
  5. Coin dispenser
  6. Web camera
  7. Passport reader
  8. Wireless Module
  9. Full-Contact IC Card Reader



Description



  1. LKS Card Dispenser Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  2. LKS is a Card Dispenser Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  3. LKS Card Dispenser Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  4. LKS main Card Dispenser Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.



Multifunction:



  • Banks
  • Hotel
  • Hospital
  • Theatre
  • Railway Station
  • Metro Station
  • Shopping Mall
  • Other public areas



Our Advantages:


Low Cost Solution



  • Easy of Operation
  • Modular design for easy maintenance
  • Stable-quality hardward components
  • Built on widely used stable provden technology
  • Complete supply chain management



Elegant Appearance



  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design
  • Attract end customer
  • Multi-color processed surface
  • Human engineering verification



Designed for 24 / 7 operation



  • Tightly integrated hardwre and software
  • Highly responsive user interaction
  • vandal resistant components

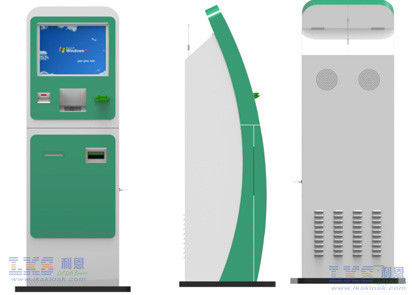

Main designs of LKS Touch Screen Card Dispenser Prepaid Card Vending Machine Cash Acceptor Payment Kiosk ​​​:
LCD TFT Screen Card Dispenser Prepaid Card Vending Machine Cash Acceptor Payment Kiosk 0
LCD TFT Screen Card Dispenser Prepaid Card Vending Machine Cash Acceptor Payment Kiosk 1LCD TFT Screen Card Dispenser Prepaid Card Vending Machine Cash Acceptor Payment Kiosk 2
