Shenzhen Lean Kiosk Systems Co., Ltd.

Self-service Bill Payment Kiosk With Card Scanner

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8364A
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
  • Detail Information
  • Product Description

Detail Information

Custom Design: Waterproof,dustproof,anti-explosion Etc Supported OS: Windows 7 Or Windows Xp (test Version Without License)
Optional Size Of Screen: 10.4inch, 12inch,15inch, 17inch, 19inch, 22inch, 32inch, 42inch Standard Kiosk: Self-service Kiosk, Payment Kiosk, Touch Screen Kiosk,etc.
Material Of Cabinet: Cold-roll Steel Sheet Or Others Type Of Touch Screen: SAW Touch Or IR Touch Or Capacity Touch
Power Supply: 110V-120V,220V-240V Or Optional
High Light:

cash payment kiosk


self service payment kiosk

Product Description

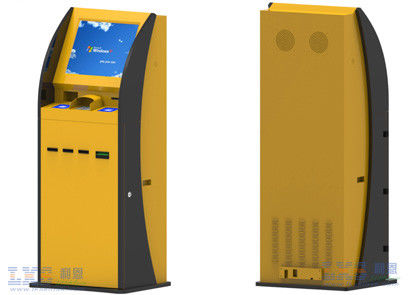

Self-service Bill Payment Kiosk With Card Scanner

  1. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  2. Material Feature:Anti-dust, Anti-vandal
  3. optional size of screen: 17inch, 19inch or upon customers’ request
  4. Application: Indoor
  5. Supported OS: windows 7 or Linux
  6. Touch Screen: IR/SAW/Capacitive
  7. Display: LCD, TFT, AUO or others
  8. Kiosk Color: upon the customer’s request
  9. Logo: By customer’s needs
  10. Parts: Passport Reaser/ Barcode Scanner/ Thermal printer….
  11. Warranty: 1 year
  12. Power supply: 110-120V, 220V-240V or optional
  13. Type: Check In Kiosk ,Touch Screen Information Kiosk, touchscreen kiosk

     Lean Self-service Kiosk includes touch touch screen information kiosk , card dispenser kiosk , self-service kiosk, touch screen information kiosk terminal,kiosk ,dual screen kiosk, mall kiosk, interactive information kiosk, kiosk with touch screen , Health care kiosk,airport kiosk,ticket vending kiosk,wall mounted kiosk, interactive kiosk, bill payment kiosk,card reader touch screen , dual screen kiosk,photo kiosk, information inquiry kiosk, and multimedia information kiosk. Lean has wall mounted kiosk and free standing kiosk,dual screen kiosk, single screen kiosk,double side screen kiosk, with the touch screen size ranges from 15” to 42”. Lean kiosk has approved CE, FCC, 3C certification.

Standard hardware components List of  Self-service Bill Payment Kiosk With Card Scanner  is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case

Other Optional hardware components List of Self-service Bill Payment Kiosk With Card Scanner  as following:

  1. Cash dispenser
  2. Coin dispenser
  3. Advertising screen
  4. Barcode scanner
  5. Passport reader
  6. Web camera
  7. A4 Laser printer
  8. RFID Card reader
  9. Metal Keyboard with Trackball or Touchpad(64 keys)


  1. LKS is a Check In Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS Check In Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  3. LKS Check In Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS main Check In Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.


  • Bus station
  • Banks
  • Hotel
  • Hospital
  • Theatre
  • Railway Station
  • Metro Station
  • Parking Lot
  • Shopping Mall
  • Other public areas




   1. Q: Are you a factory or trading company?
       A:We are a factory

   2. Q: Where is your factory located? How can I visit there?
       A:Our factory is located in shenzhen, guangdong Province, China, about half an hour by metro from             baoan airport ,All our clients, from home or abroad, are warmly welcome to visit us!

   3. Q: How can I get some samples?

       A: We are honored to offer you samples.

   4. Q: How does your factory do regarding quality control?

       A:Quality is priority. Shenzhen people always attach great importance to quality controlling from the             very beginning to the very end. Our factory has gained ISO9001, ISO14001, CE, RoHS              authentication.

   5. Q: What is your after-sale service?
       A: We offer 100% guarantee on our product .

   6. Q: What is your MOQ?

       A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.

   7. Q: When will you make the delivery?

        A: We can make the delivery within 3-15 working days according to the size of your order.


Low Cost Solution

  • Built on widely used stable provden technology
  • Complete supply chain management
  • Easy of Operation
  • Modular design for easy maintenance
  • Stable-quality hardward components

Elegant Appearance

  • Attract end customer
  • Multi-color processed surface
  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design
  • Human engineering verification

Designed for 24 / 7 operation

  • Tightly integrated hardwre and software
  • Highly responsive user interaction
  • vandal resistant components

Main designs ofSelf-service Bill Payment Kiosk With Card Scanner
Self-service Bill Payment Kiosk With Card Scanner 0




  We will provide the best service

  1. Reply your inquiry in 24 working hours.
  2. Experienced staffs answer all your questions in fluent English.
  3. Customized desgin is avaliable,OEM&ODM is welcomed.
  4. Suitable solution can be provided to our customer by our professional engineers and staffs.

  5. The warranty period free after-sales service
