Product Details
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8313
Payment & Shipping Terms
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Color And Logo Are Upon Client Request: |
Bill Validator |
Kiosk Printers: |
Cash Dispenser |
Touch Screen: |
Kiosk Design |
Display Totem: |
Coupon Printer |
Warranty Period: |
One Year |
Color And Logo Are Upon Client Request: |
Bill Validator |
Kiosk Printers: |
Cash Dispenser |
Touch Screen: |
Kiosk Design |
Display Totem: |
Coupon Printer |
Warranty Period: |
One Year |

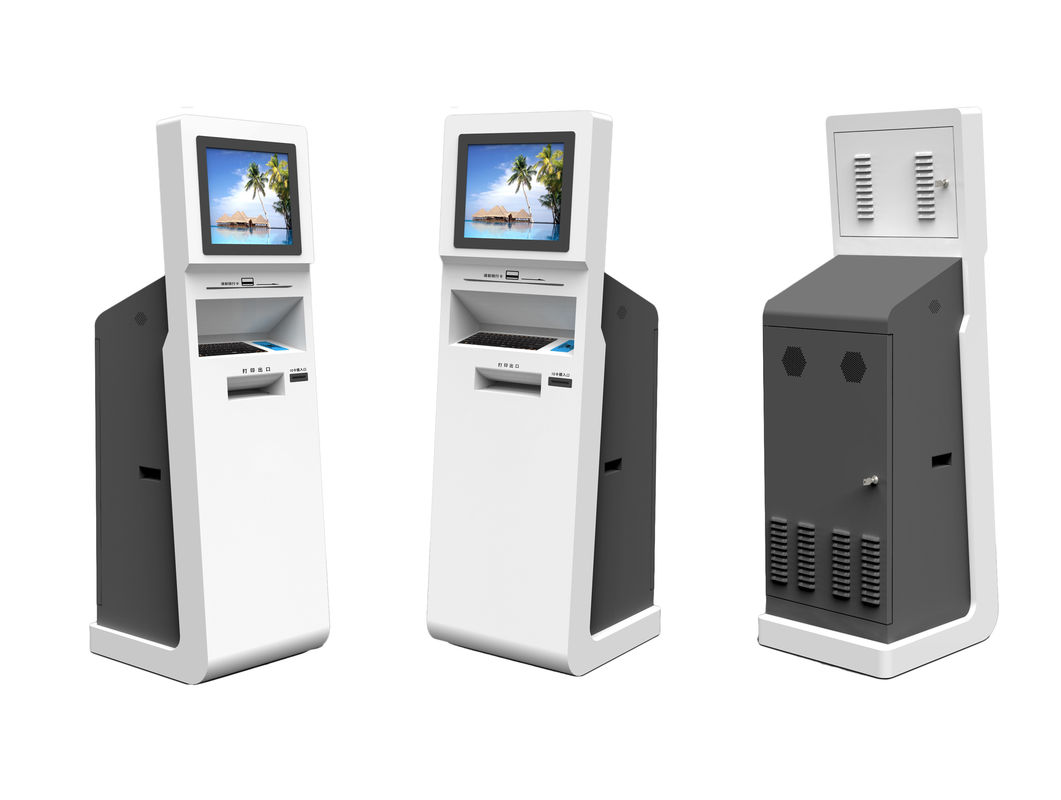

Computer PC Kiosk Stand Check In Ticketing Information Kiosk With A4 printer use in some public places such as hospital,hotel, bank, library, Theatre, Shopping Mall, etc.
LKS main high quality information kiosk terminal are including information inquiry kiosk, digital information kiosk, touchscreen information kiosks , floor standing information kiosk, 19 information kiosk terminal, electronics information kiosk, hospital information kiosk, free standing interactive information kiosk, etc.
Computer PC Kiosk Stand Check In Ticketing Information Kiosk With A4 printer
Standard hardware components List of Computer Kiosk Stand Check In Touch Screen Ticket Selling Kiosk With A4 printer is as following:
| Components | Details | |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2GB /4 GB / 8GB | |
| HDD | 500G | |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | HUNTKEY/Great Wall | |
| LCD monitor | Screen Size | 17 inch/19inch ( optional from 8inch to 65inch) |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280×1024 | |
| Touch screen | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
| Power Voltage | DC 24V±5% | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Encrypted Pinpad | Keylift~span | 2,000,000 cycles |
| Key force | 2~3N | |
| Key trip | >2.5mm | |
| Protection level | ip65 | |
| Cashcode Bill acceptor | Validation Rate | 96% or higher |
| Banknote Insertion | Four-way | |
| Escrow | One banknote | |
| Capacity | 1000 notes Max | |
| Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins | |
| Accepting Speed | 2 Coins/Sec | |
| Supply Voltage | 10V-16V DC | |
| Epson receipt thermal printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 ,USB | |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va | |
| Max time for supplying a single PC | 3~20minutes (for single PC) | |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| AC input voltage range | 100~240VAC | |
| Frequency | 50Hz to 60Hz | |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Operation System | Windows 7 or Windows XP operation system without license | |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Packing | Security Packing method with bubble foam and wooden case | |
Other Optional hardware components List of Computer Kiosk Stand Check In Touch Screen Ticket Selling Kiosk With A4 printer as following:
Description
Multifunction:
Our Advantages:
Low Cost Solution
Elegant Appearance
Designed for 24 / 7 operation
Main designs ofComputer Kiosk Stand Check In Touch Screen Ticket Selling Kiosk With A4 printer
Reception Desk and office of LKS Kiosk Manufacturer :
Certificates of LKS Kiosk Manufacturer Computer PC Kiosk Stand Check In Ticketing Information Kiosk With A4 printer
. Reply your inquiry in 24 working hours.
. Experienced staffs answer all your questions in fluent English.
. Customized desgin is avaliable,OEM&ODM is welcomed.
. Suitable solution can be provided to our customer by our professional engineers and staffs.
. The warranty period free after-sales service
To get more information,warmly welcome to contact us!!
