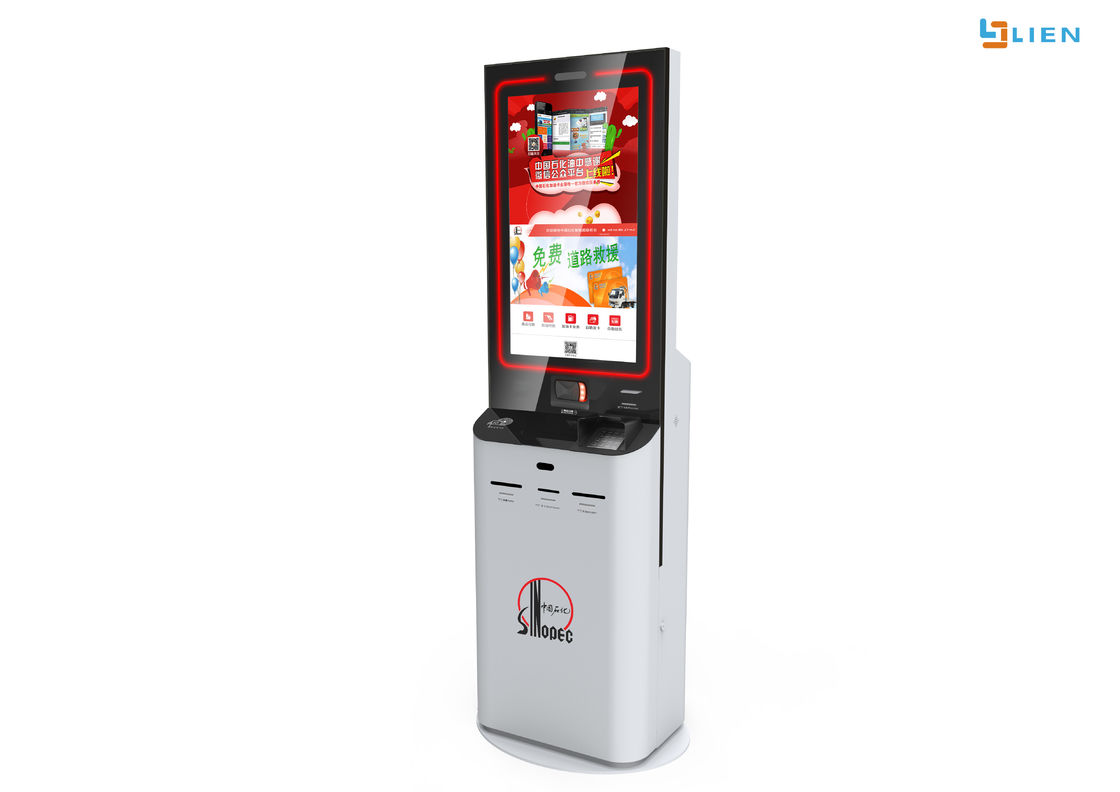

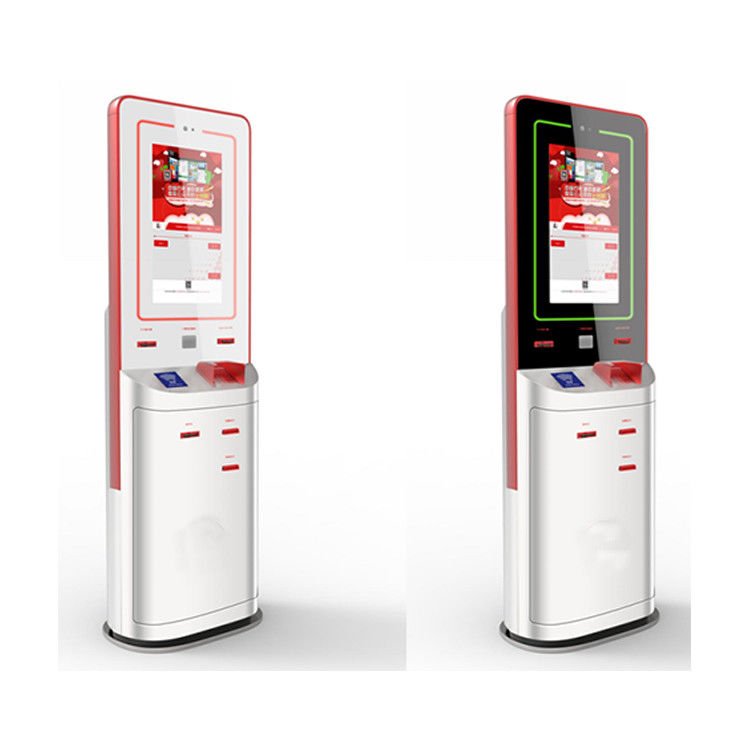

Internet Kiosk NFC Card Reader Bill Payment Kiosk With GPRS / Wifi Thermal Printer

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8222

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

cash payment kiosk

,

atm kiosk

Product Description

Internet Kiosk NFC Card Reader Bill Payment Kiosk With GPRS / Wifi Thermal Printer



 Customize Options:



  1. Personalized colors, finish, Logo & advertising
  2. Integrated components
  3. Industria PC upgrade
  4. Cabinet design
  5. Touch Screen size
  6. Operating system ( Window 7 or 8, Android)
  7. Lockable  door, computer & monitor & compartments



Main functions :



  1. Parts: Contactless card reader / Barcode reader / Bank Card reader / receipter printer….
  2. Warranty: 1 year
  3. Type:Bill Payment Kiosk, Wall mounted kiosk, outdoor kiosk
  4. Application: Indoor or Outdoor
  5. Supported OS: windows 7 or windows 8 or Linux
  6. optional size of screen: 17inch, 19inch or other size
  7. Touch Screen: SAW / IR / Capacitive
  8. Display:TFT,LCD,  AUO or others
  9. Kiosk Color: upon customer’s option
  10. Material Feature: Anti-vandal, Anti-dust
  11. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
  12. Logo:By customer’s needs
  13. Power supply: 110-120V, 220V-240V or optional



Description:



Bill payment kiosk is a recharge kiosk with display LCD, EPP and credit / bank card reader, NFC card. Bill payment kiosk can be a device which generate considerable water rate, power rate  payment, receipt printer. Which widlely use in metrol stations, bus station, restaurants, convention centers and other Public areas.




Applications:



  • Bill Payment Kiosk
  • Wall mounted kiosk
  • Marketing Kiosk
  • Multimedia Kiosk
  • On-Line Banking Kiosk
  • Order Entry Kiosk
  • Bespoken Kiosk
  • List printing
  • Information
  • Service


Internet Kiosk NFC Card Reader Bill Payment Kiosk With GPRS / Wifi Thermal Printer was designed having in mind the components that can integrate. The transact is the chameleon of the kiosks, because it can easily adapt the needs of each client.

Standard hardware components List of Internet Kiosk NFC Card Reader Bill Payment Kiosk With GPRS / Wifi Thermal Printer is as following:

Components Details
PC system Industrial Board Advantech AIMB 562/Seavo H6116/ Gigabyte
CPU Intel Dual- Core G2020 ,2.9GHZ
RAM 2GB /4 GB
HDD 320G / 500G
Interface 2 RS-232 Ports;1 LTP;4 USB Ports,1 10/100M Net Port
PC Power Supply Great Wall / HUNTKEY
LCD monitor angle  horizontal 100°above;Vertical 80°above
Brightness 250cd/m2
Screen Size 17 inch/19inch  or other size
Contrast 1000:1
Backlight tube life >  40,000hours
Max. resolution 1280×1024 or 1920*1080
Touch screen Screen Size 17/19 inch Diagonal  or other size
Resolution 4096x4096
High precision and durability, high Transparence , Orientation precision less than 2mm(0.080 inch); pure tempered glass;Single-point touch Life expectancy > 50,000,000 times
Bank/Credit Card Reader Interface RS232 or USB
Card Type Support IC Card, Magcard,  Mifare S50,S70, RF Card, UL Card
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Certificate EMV level.1
Encrypted Pinpad Keylift~span 2,000,000 cycles
Certificate PCI 2.0
Key trip >2.5mm
Protection level ip65
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB

Digital Power Supply

AC input voltage range  100~240VAC
Frequency 50Hz to 60Hz
Accessories  USB ports, speakers, screws, fans, cables, Wire-lan port, etc.
Operation System Win 7 or Win 8 operation system without license
KIOSK Cabinet Durable all steel anti-graffiti enclosure, Slim and smart design; Easy to install and operate; Moisture proof, Antirust,Anti-acid, Anti-dust,Static free,  color and LOGO upon clients request
Packing

One kiosk packed in a big box with foam filler inside, then enhanced with export-worthy & transport-worthy ply-wooden crate


 Other Optional hardware components List of Internet Kiosk NFC Card Reader Bill Payment Kiosk With GPRS / Wifi Thermal Printer is as following:



  1. Thermal Printer
  2. Encrypted Pin Pad
  3. Bank / Credit card reader
  4. Web camera
  5. Wifi / 3G moudle
  6. RFID card reader
  7. 1D or 2D Barcode scanner
