Self-service Payment Kiosk

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8519A

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

automatic teller machine

,

kiosk atm machine

Material:
1.5mm To 2.5mm Cold-rolled Stell Or Stainess Steel Or Others
Material Feature:
Anti-vandal, Anti-dust
Application:
Indoor
Supported OS:
Windows 7 Or Windows 8 Or Linux
Display:
LCD, TFT, AUO Or Others
Optional Size Of Screen:
17inch, 19inch Or Upon Customers’ Request
Touch Screen:
IR/SAW/Capacitive
Warranty:
12 Mounths Since Shipment
Power Supply:
110-120V, 220V-240V Or Optional
Color:
Yellow, Gray, Red, White, Blue, Silver, Black (Optional)
Function:
Self Service Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...
Advertising LED:
19" 21.5"22"23" Or Upon Clients
Material:
1.5mm To 2.5mm Cold-rolled Stell Or Stainess Steel Or Others
Material Feature:
Anti-vandal, Anti-dust
Application:
Indoor
Supported OS:
Windows 7 Or Windows 8 Or Linux
Display:
LCD, TFT, AUO Or Others
Optional Size Of Screen:
17inch, 19inch Or Upon Customers’ Request
Touch Screen:
IR/SAW/Capacitive
Warranty:
12 Mounths Since Shipment
Power Supply:
110-120V, 220V-240V Or Optional
Color:
Yellow, Gray, Red, White, Blue, Silver, Black (Optional)
Function:
Self Service Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...
Advertising LED:
19" 21.5"22"23" Or Upon Clients
Product Description

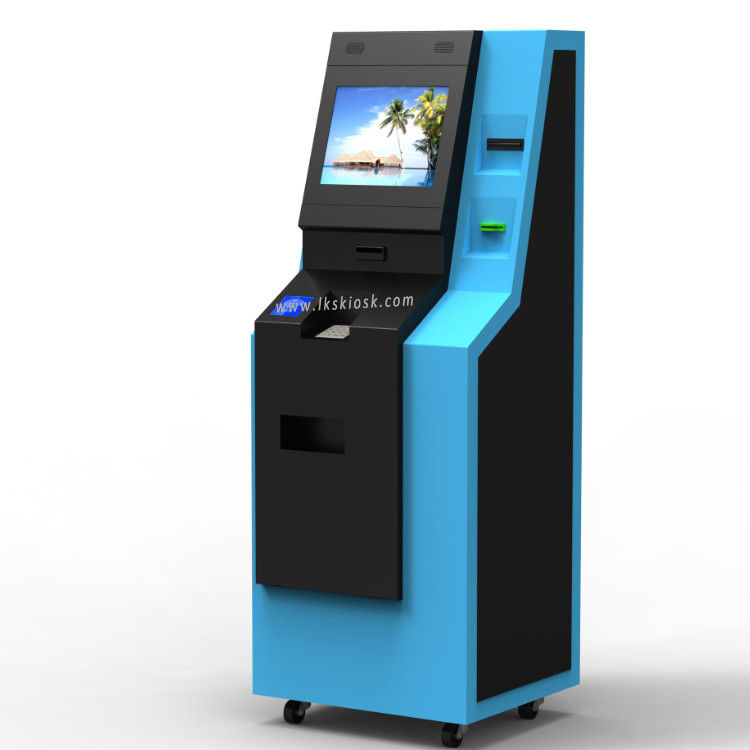

Locker On-Line Banking ATM Kiosk , Card Reader Financial Internet Kiosk



Main parts ​​:

  1. 19" LED advertising display
  2. 17" touch screen
  3. Cash dispenser
  4. Receipt printer
  5. Ticket printer
  6. IC / RFID  card printer
  7. Cash acceptor
  8. LEC Lightbox
  9.  Bank card reader
  10. Encrypted Pin Pad….

Standard hardware components List is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Card Dispenser Main Fuction Combination of card issuing IC/RFID card Reading
Communication Interface  RS232C / USB (HID)
Card Dimmensions Size: 53.92~54.18mm *85.47~85.90mm; Thickness: 0.4mm~1.0mm
Card Stacking Capability 120 pcs in case of 0.76mm standard card ( without extension) ( Available load 500 pcs of card max if there is removable stacker)
 Metal keyboard with touchpad Keylift‐spanKeylift‐span
Key force  2~3N
Key trip  >2.5mm
Protection level ip65
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as follows:

  1. Coin acceptor
  2. Advertising screen
  3. Contactless Card reader
  4. Wireless Moudal
  5. Passport reader
  6. Web camera
  7. A4 Laser printer
  8. Thermal printer
  9. Intercom


Description

  1. LKS is a Dual Screen Kiosk manufacturer and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS main Dual Screen Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  3. LKS Dual Screen Kioskis manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS Dual Screen Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.

Elegant Appearance

  • Attract end customer
  • Multi-color processed surface
  • Human engineering verification
  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design

The reason you choose LKS:


  1. LKS has 100% yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba;
  2. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  3. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  4. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  5. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration.
