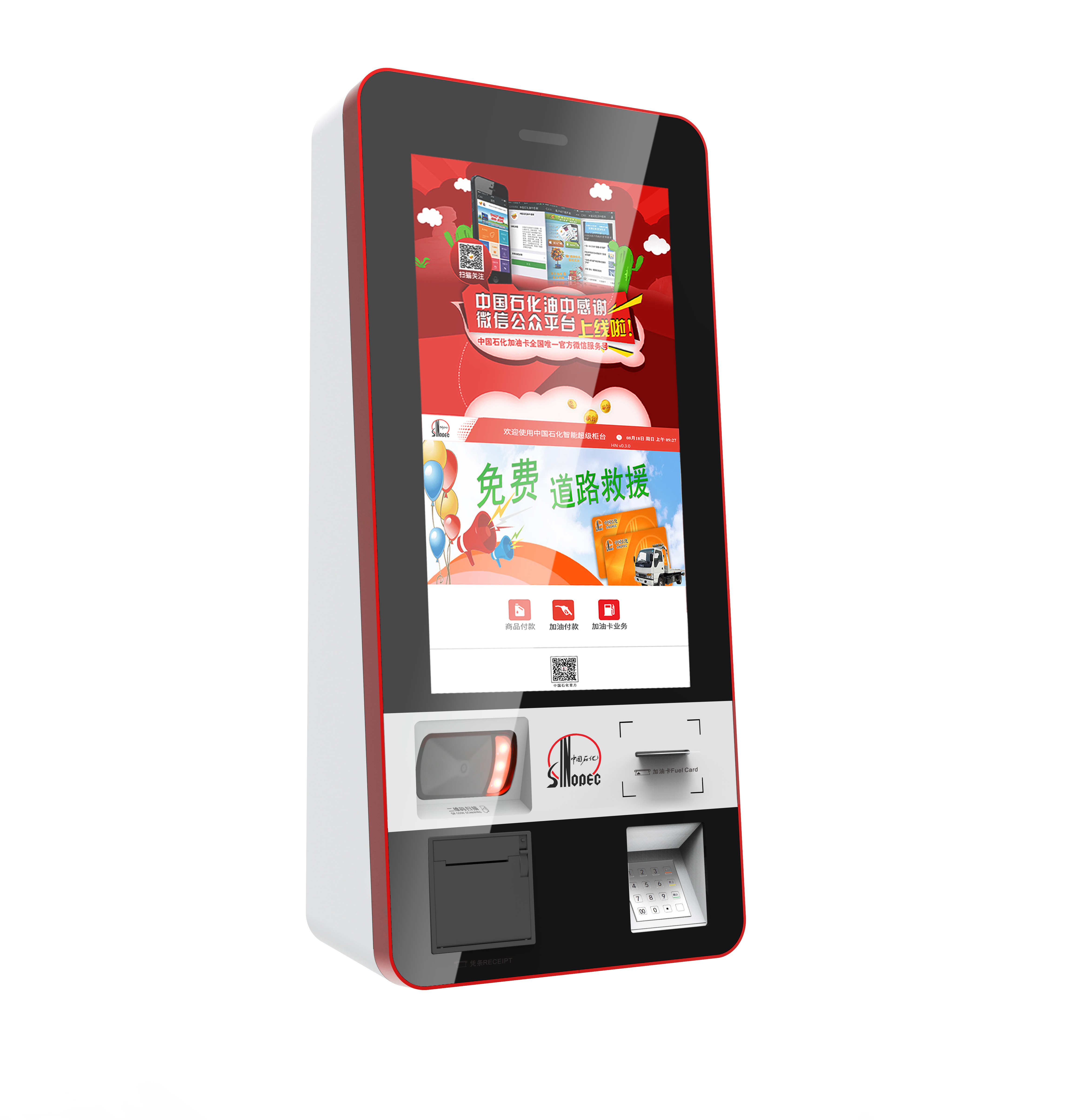

Wall Mounted With Receipt Printer Kiosk

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8205C

Payment & Shipping Terms

Minimum Order Quantity: 5 Units

Packaging Details: Film wrap, foam and wooden box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in advance, Western Union, L/C

Supply Ability: 1000 units per month

Get Best Price
Product Details
High Light:

automatic teller machine

,

kiosk atm machine

Material:
Cold-rolled Steel Or Stainless Steel Or Others
Material Feature:
Anti-vandal, Anti-dust,Anti-acid
Application:
Indoor / Outdoor
OS:
Windows 7 /Windows 8 / Linux
Display:
LCD, TFT, LED
Size Of The Screen:
7 ~84 Inch Upon Customers’ Request
Touch Screen:
IR / SAW / Capacitive
Power Supply:
110-240V Or Optional
Color And Logo:
Customizable
Function:
Card Reader,Cash Accepting,Receipt Printing,Advertising Displaying
Card Type:
Credit Or Debit Card
Card Insert Way:
Auto Or Manual As Optional
Warranty:
12 Months After Shipment
Material:
Cold-rolled Steel Or Stainless Steel Or Others
Material Feature:
Anti-vandal, Anti-dust,Anti-acid
Application:
Indoor / Outdoor
OS:
Windows 7 /Windows 8 / Linux
Display:
LCD, TFT, LED
Size Of The Screen:
7 ~84 Inch Upon Customers’ Request
Touch Screen:
IR / SAW / Capacitive
Power Supply:
110-240V Or Optional
Color And Logo:
Customizable
Function:
Card Reader,Cash Accepting,Receipt Printing,Advertising Displaying
Card Type:
Credit Or Debit Card
Card Insert Way:
Auto Or Manual As Optional
Warranty:
12 Months After Shipment
Product Description

IC / Magnetic / RFID ATM Kiosk Wall Mounted With Receipt Printer And Security System





Main components​​:



  1. Touch screen
  2. Monitor
  3. Speaker
  4. Contactless card reader
  5. Receipt printer
  6.  Cash validator
  7. Encrypted Pin Pad….


Standard hardware components List is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Card reader Main Fuction Combination of Magnetic/IC/RFID card Reading
Communication Interface  RS232C / USB (HID)
Card Dimmensions Size: 53.92~54.18mm *85.47~85.90mm; Thickness: 0.4mm~1.0mm
Magnetic Head Life 500,000/min
IC Card Touch Port 300,000/min
Power Voltage  DC 24V±5%
 Encrypted Pin Pad Keylift‐span 2,000,000 cycles
Key force  2~3N
Key trip  >2.5mm
Protection level ip65
Cash acceptor Validation Rate 96% or higher
Escrow  One banknote or bundle
Banknote size Universal application
Capacity of cassette 600 notes or higher
Operating Voltage 12VDC +/- 10%
Operating Temperature 0° C to 50° C
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:



  1. Barcode scanner
  2. Contactless Card reader
  3. Wireless Module like WIFI,3G,GPRS
  4. Web camera
  5. A4 Laser printer
  6. Intercom
  7. Cash dispenser
  8. Coin dispenser
  9. Card dispenser
  10. Speaker
  11. Advertising screen


Description

  1. LKS is a professional ATM kiosk manufacturers and ATM kiosk supplier in China. It provides the ATM kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS ATM kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  3. LKS ATM kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  4. LKS main ATM are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.


Multi-function:


  • Bank
  • Hotel
  • Super market
  • Gas station
  • Shopping Mall
  • Cinema
  • Railway Station
  • Metro Station
  • Parking Lot
  • Fast food restaurant
  • Bus station
  • Other Public areas


Our Advantages:




24 / 7 operation


  • Highly responsive user interaction
  • Vandal resistant components
  • Tightly integrated hardwre and software
  • Inner air recycling system


Cost less Solution



  • Stable quality hardward components
  • Built-in widely used stable provden technology
  • Complete supply chain management
  • Friendly Operation
  • Modular design for easy maintenance


Noble Appearance



  • Eyesight attractive
  • Multi-color processed surface
  • Human engineering verification
  • Attractive decoration
  • Outstanding design
  • Regular elegant design
