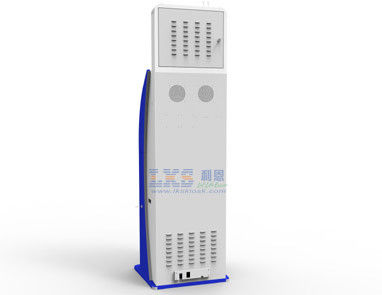

Customized Cash Payment Kiosk , Computer Enclosure Payment Machines

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8564J

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

cash payment kiosk

,

self service payment kiosk

Material:
1.5mm To 2.5mm Cold-roll Sheet Or Others
Material Feature:
Anti-dust, Anti-vandal
Application:
Indoor
Supported OS:
Windows 7 Or Windows 8 Or Linux
Display:
LCD, TFT, AUO Or Others
Optional Size Of Screen:
17inch, 19inch Or Upon Customers’ Request
Touch Screen:
IR/SAW/Capacitive
Warranty:
1 Year
Power Supply:
110-120V, 220V-240V Or Optional
Color:
Gray (Optional)
Function:
Bill Payment Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...
Material:
1.5mm To 2.5mm Cold-roll Sheet Or Others
Material Feature:
Anti-dust, Anti-vandal
Application:
Indoor
Supported OS:
Windows 7 Or Windows 8 Or Linux
Display:
LCD, TFT, AUO Or Others
Optional Size Of Screen:
17inch, 19inch Or Upon Customers’ Request
Touch Screen:
IR/SAW/Capacitive
Warranty:
1 Year
Power Supply:
110-120V, 220V-240V Or Optional
Color:
Gray (Optional)
Function:
Bill Payment Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...
Product Description

Customized Cash Payment Kiosk , Computer Enclosure Payment Machines





  1. 19" LCD mornitor for advertising
  2. 17inch Touch screen
  3. Card dispenser
  4. Card reader
  5. EPP
  6. Contactless card reader
  7. Bill validor
  8. Fingerprinter reader


Standard hardware components List is as following:


Components

Details

PC system

Industrial Board

Seavo/ Gigabyte/Advantech AIMB 562

CPU

Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7

RAM

2GB /4 GB / 8GB

HDD

500G

Interface

6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card

PC Power Supply

HUNTKEY/Great Wall

LCD monitor

Screen Size

17 inch/19inch ( optional from 8inch to 65inch)

Brightness

250cd/m2

angle

horizontal 100°above;Vertical 80°above

Contrast

1000:1

Backlight tube life

more than 40,000hours

Max. resolution

1280×1024

Touch screen

Screen Size

17/19 inch Diagonal ( optional from 8inch to 65inch)

Resolution

4096x4096

High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times

Card Dispenser

Main Fuction

Combination of card issuing IC/RFID card Reading

Communication Interface

RS232C / USB (HID)

Card Feeding-out speed

Approx. 14.8cm/s

Card Dimmensions

Size: 53.92~54.18mm *85.47~85.90mm; Thickness: 0.4mm~1.0mm

Card Stacking Capability

120 pcs in case of 0.76mm standard card ( without extension) ( Available load 500 pcs of card max if there is removable stacker)

Card Pre-empty Detection

7~50 pcs (+/- 2pcs) ( Default setting: 15 pcs)

Power supply

DC 24V ( +/- 5%)

Life Time

500 thousand times

Bank/Credit Card Reader

Interface

RS232

Card Type

Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card

Power Voltage

DC 24V±5%

Card Entry method

Magnetic signal, Optoelectronic signal and rear card signal

Encrypted Pinpad

Keylift~span

2,000,000 cycles

Key force

2~3N

Key trip

>2.5mm

Protection level

ip65

Cashcode Bill acceptor

Validation Rate

96% or higher

Banknote Insertion

Four-way

Escrow

One banknote

Capacity

1000 notes Max

Epson receipt thermal printer

Autocutter

included

Technology

Thermal printing

Paper width

80mm

Printing speed

150mm/s

Data buffer

4KB

Interface

RS232 ,USB

UPS

Input voltage

145-290va

Output voltage

200-255va

Max time for supplying a single PC

3~20minutes (for single PC)

Digital Power Supply

AC input voltage range

100~240VAC

Frequency

50Hz to 60Hz

AC input voltage range

100~240VAC

Frequency

50Hz to 60Hz

Accessories

Wire-lan port, USB ports, speakers, fans, cables, screws, etc.

Operation System

Windows 7 or Windows XP operation system without license

KIOSK Cabinet

Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.

Packing

Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:


  1. Wireless Moudal
  2. Card dispenser
  3. Card Reader
  4. Passport scanner
  5. Thermal printer
  6. Advertising screen
  7. Barcode scanner
  8. Web camera
  9. Contactless Card reader


Description

Bill Payment Kiosk: Our bill payment kiosk allows your customers the convenience of being able to pay their bills from your location. Your customers can pay bills they have with over 120000 companies that are currenctly registered within the bill payment system. Pay bills such as utilty payments, cell-phone payments,insurance payment, credit cards, home loans and many more. You can add additional revenue to your location by utilizing the optional digital signage monitor and sell pre-paid phone kiosk.



Offer your customers the ability to pay their bills at your location with the new "Bill Payment Express" bill payment kiosks.



Bill payment kiosks are incredibly easy to use and generate huge residual income month after month.

Multifunction:


  • Gas station
  • Metro Station
  • Hospital
  • Shopping Mall
  • Movie Theatre
  • Parking Lot
  • Banks
  • Air port station
  • Railway Station
  • Hotel
  • Other Public areas


Our Advantages:

Elegant Appearance


  • High-quality design sketch
  • Multi-color processed surface
  • Human engineering verification
  • Attractive decoration
  • Regular elegant design
  • Attract end customer


Low Cost Solution


  • Modular design for easy maintenance
  • Stable-quality hardward components
  • Easy of Operation
  • Built on widely used stable provden technology
  • Complete supply chain management


Designed for 24 / 7 operation


  • Highly responsive user interaction
  • Tightly integrated hardwre and software
  • vandal resistant components
