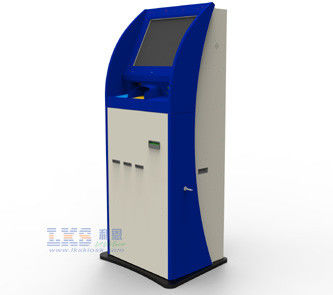

Card Dispenser Check In Kiosk , Custom Logo Enclosure Bespoken Kiosk

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8364B

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

airport check in kiosk

,

touch screen information kiosk

,

Card Dispenser Check In Kiosk

Material:
1.5mm To 2.5mm Cold-roll Sheet Or Others
Material Feature:
Anti-dust, Anti-vandal
Application:
Indoor
Supported OS:
Windows 7 Or Windows 8 Or Linux
Display:
LCD, TFT, AUO Or Others
Optional Size Of Screen:
17inch, 19inch Or Upon Customers’ Request
Touch Screen:
IR/SAW/Capacitive
Warranty:
1 Year
Power Supply:
110-120V, 220V-240V Or Optional
Color:
White And Red (Optional)
Function:
Self Service Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...
Material:
1.5mm To 2.5mm Cold-roll Sheet Or Others
Material Feature:
Anti-dust, Anti-vandal
Application:
Indoor
Supported OS:
Windows 7 Or Windows 8 Or Linux
Display:
LCD, TFT, AUO Or Others
Optional Size Of Screen:
17inch, 19inch Or Upon Customers’ Request
Touch Screen:
IR/SAW/Capacitive
Warranty:
1 Year
Power Supply:
110-120V, 220V-240V Or Optional
Color:
White And Red (Optional)
Function:
Self Service Kiosk, Touchscreen Kiosk, Cash Dispenser Kiosk...
Product Description

Card Dispenser Check In Kiosk , Custom Logo Enclosure Bespoken Kiosk







  1. 19" SAW Touchscreen
  2. RFID card reader
  3. Cashcode Bill Acceptor
  4. Epson Receipt printer
  5. Card dispenser
  6. Credit / Bank Card reader
  7. Encrypted Pinpad


Standard hardware components List is as following:



Components

Details

PC system

Industrial Board

Seavo/ Gigabyte/Advantech AIMB 562

CPU

Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7

RAM

2GB /4 GB / 8GB

HDD

500G

Interface

6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card

PC Power Supply

HUNTKEY/Great Wall

LCD monitor

Screen Size

19inch ( optional from 8inch to 65inch)

Brightness

250cd/m2

angle

horizontal 100°above;Vertical 80°above

Contrast

1000:1

Backlight tube life

more than 40,000hours

Max. resolution

1280×1024

Touch screen

Screen Size

19 inch Diagonal ( optional from 8inch to 65inch)

Resolution

4096x4096

High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times

Card Dispenser

Main Fuction

Combination of card issuing IC/RFID card Reading

Communication Interface

RS232C / USB (HID)

Card Feeding-out speed

Approx. 14.8cm/s

Card Dimmensions

Size: 53.92~54.18mm *85.47~85.90mm; Thickness: 0.4mm~1.0mm

Card Stacking Capability

120 pcs in case of 0.76mm standard card ( without extension) ( Available load 500 pcs of card max if there is removable stacker)

Card Pre-empty Detection

7~50 pcs (+/- 2pcs) ( Default setting: 15 pcs)

Power supply

DC 24V ( +/- 5%)

Life Time

500 thousand times

Bank/Credit Card Reader

Interface

RS232

Card Type

Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card

Power Voltage

DC 24V±5%

Card Entry method

Magnetic signal, Optoelectronic signal and rear card signal

Encrypted Pinpad

Keylift~span

2,000,000 cycles

Key force

2~3N

Key trip

>2.5mm

Protection level

ip65

Member Card /RFID Card Reader

Interface

Support  ISO14443

Card Type

ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight

Status Display

LED indicator to show the power or communication status

Operated Temperature

from -20 to +60ºC

Cashcode Bill acceptor

Validation Rate

96% or higher

Banknote Insertion

Four-way

Escrow

One banknote

Capacity

1000 notes Max

Epson receipt thermal printer

Autocutter

included

Technology

Thermal printing

Paper width

80mm

Printing speed

150mm/s

Data buffer

4KB

Interface

RS232 ,USB

UPS

Input voltage

145-290va

Output voltage

200-255va

Max time for supplying a single PC

3~20minutes (for single PC)

Digital Power Supply

AC input voltage range

100~240VAC

Frequency

50Hz to 60Hz

AC input voltage range

100~240VAC

Frequency

50Hz to 60Hz

Accessories

Wire-lan port, USB ports, speakers, fans, cables, screws, etc.

Operation System

Windows 7 or Windows XP operation system without license

KIOSK Cabinet

Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.

Packing

Security Packing method with bubble foam and wooden case





Other Optional hardware components List is as following:



  1. 19”SAW Touchscreen w/ 3M Privacy Filter
  2. Barcode scanner
  3. Web camera
  4. Wireless Moudal
  5. Card dispenser
  6. Magnetic Card Reader - Swipe Style
  7. Secure Pin Pad
  8. Amplified Stereo Speakers
  9. Passport scanner
  10. Electronic Signature Capture Pad
  11. Contactless Card reader




Description




  1. LKS is a Wall Mounted Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
  2. LKS main Wall Mounted Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  3. LKS Wall Mounted Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  4. LKS  Wall Mounted Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.





Our Advantages:




Elegant Appearance



  • Attractive decoration
  • Human engineering verification
  • Attract end customer
  • Regular elegant design
  • High-quality design sketch
  • Multi-color processed surface


Low Cost Solution


  • Modular design for easy maintenance
  • Stable-quality hardward components
  • Easy of Operation
  • Built on widely used stable provden technology
  • Complete supply chain management


Designed for 24 / 7 operation


  • vandal resistant components
  • Highly responsive user interaction
  • Tightly integrated hardwre and software




Multifunction:



  • Gas station
  • Parking Lot
  • Metro Station
  • Restaurant
  • Shopping Mall
  • Movie Theatre
  • Banks
  • Air port station
  • Railway Station
  • Hotel
