Shenzhen Lean Kiosk Systems Co., Ltd.

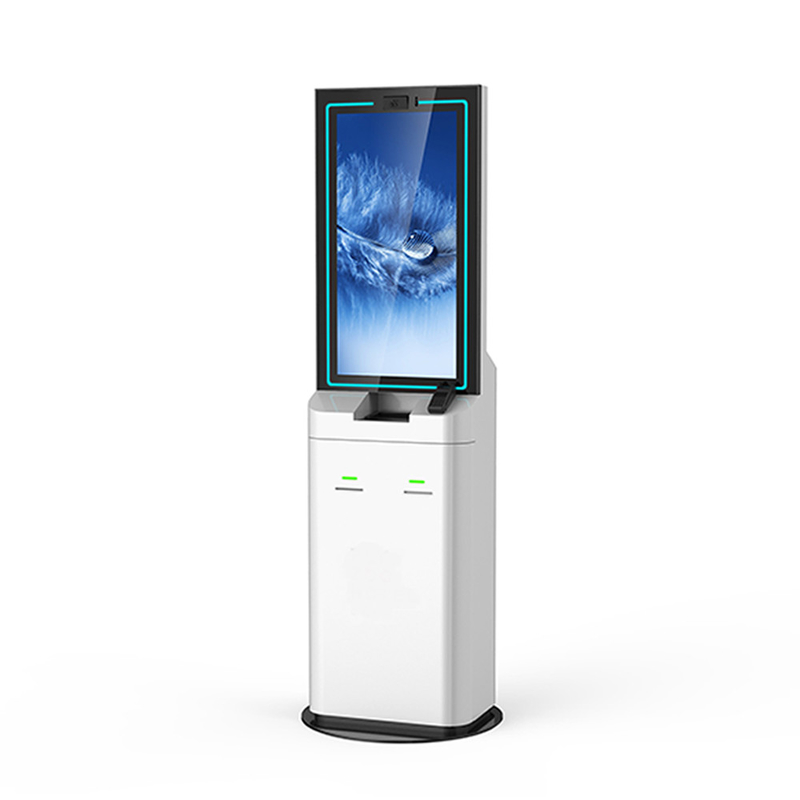

19inch LCD Display Payment Kiosk Free Standing Vandal Proof

Product Details:
Place of Origin: China
Brand Name: LKS / ODM / OEM
Certification: CE, FCC
Model Number: LKS8502
Payment & Shipping Terms:
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
  • Detail Information
  • Product Description

Detail Information

Cheque Storage: 250 Pieces Maximum Banknote: Width: 62or 78mm; Length:160-180mm
3G Module: Huawei WLAN Module: TP-LINK
Speaker: Dual Channel Amplifier Color: As Optional
High Light:

Payment Kiosk Free Standing

,

19inch LCD Payment Kiosk

,

19inch self check kiosk

Product Description

19inch LCD Display Payment Kiosk Free Standing Vandal-Proof



Standard configuration:



  1. Top 19inch LCD display for advertising

  2. Below 17inch touch display

  3. Cash Acceptor

  4. Coin Acceptor

  5. Credit Card Reader / POS payment

  6. Receipt Printer

  7. Cash Dispenser (Optional)

  8. Coin Dispenser (Optional)

  9. Industrious PC,2G RAM,500G HDD







Components

Details

PC system

Industrial Board

Seavo/ Gigabyte/Advantech H61

CPU

 Intel Dual Core I5

RAM

 GB

HDD

500G

Interface

6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card

PC Power Supply

HUNTKEY/Great Wall

LCD monitor

Screen Size

17 inch ( optional from 8inch to 65inch)

Brightness

250cd/m2

angle

horizontal 100°above;Vertical 80°above

Contrast

1000:1

Backlight tube life

more than 40,000hours

Max. resolution

1280×1024

Touch screen

Screen Size

17 inch Diagonal ( optional from 8inch to 65inch)

Resolution

4096x4096

High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times

Receipt Printer

Interface

High Speed USB

Resolution

4800*1200 maximum

Printing speed

4.8 ipm

Width

58 /80 /112 mm

Length

Customizable


Webcam



Resolution

1280*720

Pixel

8000000

Adaptive Resolution

1280*720

Interface

USB 2.0

Driver

No

Encrypting Pinpad

Keylift‐span

2,000,000 cycles

Key force

2~3N

Key trip

>2.5mm

Protection level

IP65

Operating Temperature

0° C to 40° C

Motorized card reader

Interface

RS232

Card Type

Support Magcard, IC Card, RF Card,  Mifare S50,S70,UL Card

Magnetic Head Life

500,000/min

500,000/min

300,000/min

Power Voltage

 DC 24V±5%

Cash acceptor

Validation Rate

98% or higher

Banknote size

Width: 62or 71mm; Length:120-160mm

Detection ability

High detection of forged bills

Bill Escrow

one bill

Cashbox capacity

1000  banknotes max

Operating Voltage

12V DC  or 24V AC

Operating Temperature

0° C to 55 ° C  (12 V DC platform);  -18° C to +60 ° C  (24 V AC platform)

Card dispenser

Interface

RS232

Card specification

86mm×54mm×0.2-1.8mm

Working environment

From -30°C to 70°C

Contactless card reader

Status Display

LED indicator to show the power or communication status

Card Type

 ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight

Type

Support  ISO14443

Cheque scanner

Image scan

 Range:A6 size(105mm),Duplex scan

 Method:Color CIS(control image sensor)

Method:Color CIS(control image sensor)

Speed:500mm/s

MICR recognition

E138 & CMC7

Interface

RS232, USB

UPS

Input voltage

145-290 V

Output voltage

200-255 V

Output frequency

50±0.5Hz

Transient time

50±0.5Hz

Max time for supplying a single PC

3~20minutes (for single PC)

Wireless module

3G module

1, Compatible with HSUPA, HSDPA, UMTS, EDGE, GPRS, GSM network
2, Browsing Internet at high speed of 7.2Mbps downlink and 5.76Mbps uplink rate in max
3, Sending and receiving short messages
4, Managing contacts
Interface: USB2.0, and USB1.1 compatible
Data transmission: Transmission rate will be depended on the live network

Alarm system sensor / IO control board

Function

Door alarm sensor with enternet function, SIM,SMS,CALL

Speakers

Features

Dual channel amplified speakers for Stereo ,8Ω 5W

Digital Power Supply

AC input voltage range

100~240VAC

Frequency

50Hz to 60Hz

AC input voltage range

100~240VAC

Frequency

50Hz to 60Hz

Accessories

Wire-lan port, USB ports, speakers, fans, cables, screws, etc.

Operation System

Windows 7 or Windows XP operation system without license

Free standing Cabinet

Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.

Package

Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:

  1. Stainless metal keyboard with track ball

  2. Digital signature pad

  3. Cash dispenser

  4. Card dispenser

  5. Palm vein scanner

  6. Passport scanner

  7. Manual magnetic stripe swipe card reader

  8. ID scanner

Application



  • Supermarket

  • Retailer store

  • Coffe shop

  • Park

  • Gymnasium

  • Exibition

  • Coffe shop

  • Shopping Mall

  • Railway Station

  • Metro Station

  • Parking Lot

  • Bus station

  • Other Public area

Our Advantages:


Suitable for  24 / 7 Operation

  • Fixed on floor and lockable

  • No staff needed during night

  • No watch out needed except routine maintenance

  • Remote control by wireless or wire connection

  • No labor force needed except maintenance

  • Less power consuming and more stable Industrious modules

  • Inner air recycling design for heat and humidity control

  • Alarm system sensor with instant reporting function

 Appearance

  • Eyesight attractive,Coloful design

  • Brand promotion with LOGO displaying and advertise video displaying

  • Customizable decorations,unique design

  • Robust and secured cabinet

The reason why you choose LKS:

  1. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;

  2. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba;

  3. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;

  4. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;

  5. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;

  6. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration.
