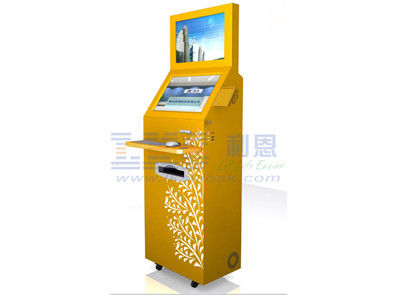

Automatic Multifunction Self-checkin Kiosk Without Involvement From Staff

Product Details

Place of Origin: China

Brand Name: LKS / OEM / ODM

Certification: CE, FCC

Model Number: LKS8510

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
Highlight:

touch screen information kiosk

,

self service check in kiosk

,

AUO screen Self checkin Kiosk

Display:
2*19'' AUO Screen
Application:
Indoor
Keyboard:
With Mouse And Touchpad
A4 Printer:
Laser Black And White
Type:
Top Up Dual Screen Kiosk
Function:
Self Registration
Display:
2*19'' AUO Screen
Application:
Indoor
Keyboard:
With Mouse And Touchpad
A4 Printer:
Laser Black And White
Type:
Top Up Dual Screen Kiosk
Function:
Self Registration
Product Description



Automatic Multifunction Self-checkin Kiosk Without Involvement From Stuff



Standard configuration:



  1. 19 inch monitor
  2. 17 inch IR touch screen
  3. Industrious PC,2G RAM,500G HDD
  4. Wireless module like 3G / GPRS,WIFI,Blurtooth
  5. Speaker
  6. Laser A4 printer
  7. Metal keyboard with touch pad
  8. Card reader
  9. Free standing dual screen cabinet



Specification  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 19 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Contactless IC/ NFC / RF card reader Card type ISO14443 TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Status LED indicator to show the power or communication status
Interface Support  ISO14443
A4 printer Interface High speed USB / RS 232
Resolution 4800*2400 maximum
Printing speed 20 pages /second
Capacity of paper bos 2100 A4 sheets maximum
Metal keyboard with touch pad Keys 104 * numberic / letters / signs keys
Other IP65 waterproof
Speaker Dual channel amplified speakers for Stereo , 8Ω 5W.
Webcam 500 million pixels,USB driver
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case






Other Optional hardware components List is as following:



  1. Dot matrix printer
  2. Cash acceptor / dispenser
  3. Coin acceptor / dispenser
  4. Palm vein scanner
  5. Fingerprint scanner
  6. Manual magnetic stripe swipe card reader
  7. ID / Driver licence / Social insurance card double-side scanner
  8. Passport scanner
  9. Encrypted Pinpad
  10. Receipt printer
  11. Stainless metal keyboad with track ball
  12. Digital signature pad
  13. Cheque scanner / acceptor with MICR function





Application


  • Cinema
  • Museum
  • Financial agency
  • HR department
  • Gymnasium
  • Conference lobby
  • Exibition
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Other Public area


Our Advantages:




Design for  24 / 7 Operation

  • Fixed on floor and lockable
  • Integrated industrial level compenents from worldwide famouse brands
  • Inner air recycling design for heat and humidity control
  • Alarm system sensor with instant reporting function



Cost-saving solution

  • No staff invloving
  • Ease-of-use,maintenance free
  • Design and production on our own
  • Two screen controls under only one PC
  • CE,FCC RoHS certification





The reason to choose LKS:

  1. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  2. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
  3. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  4.
  5. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
  6. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
  7. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.
