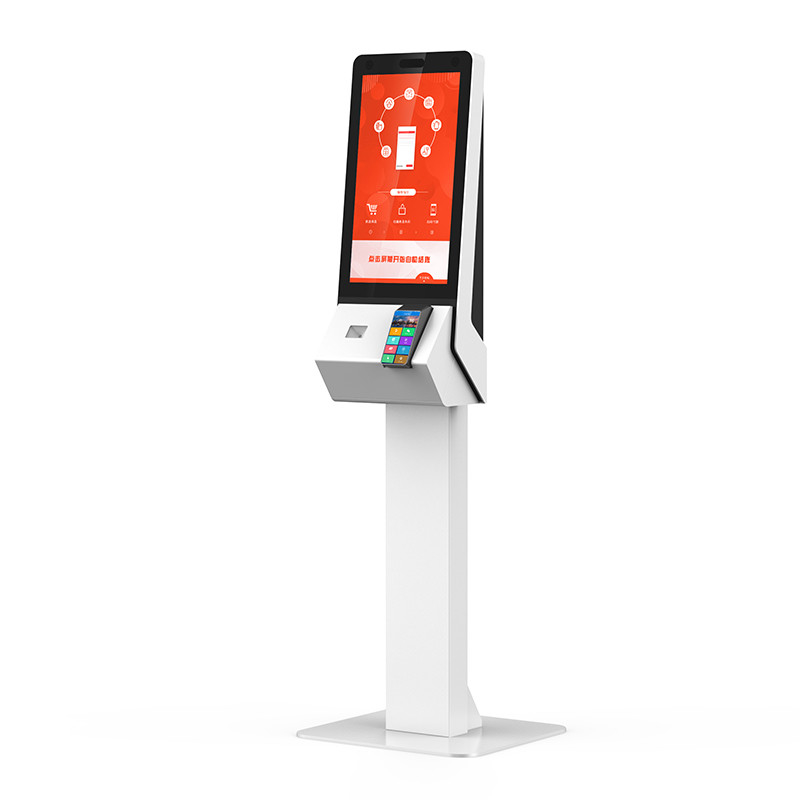

OEM ODM 24'' 27'' Payment Kiosk Self Service Kiosk Checkout Machine

Product Details:
Place of Origin: CN
Brand Name: LKS
Certification: CE,UL
Payment & Shipping Terms:
Minimum Order Quantity: 10 unit
Price: US$2000-5000/unit
Packaging Details: plywood case
Delivery Time: 5-6 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1500 unit/month
  • Detail Information
  • Product Description

Detail Information

Product Name: Self Service Kiosk Warranty: 1 Year
Color: Customer Specifications Resolution: 1920x1080 Resolution
Material: 1.5MM Cold Rolled Steel Plate Logo: Can Be Customized
Os: Windows / Android Size: Customized
Screen Size: 21/24/27 Inch Touch Screen Type: Capacitive,Customized,IR Touch Screen
Installation: Floor Standing/Wall Mounted Power Supply: 110V/220V,50/60Hz
Type: Self-service Kiosk,touch Screen Kiosk
High Light:

OEM ODM Payment Kiosk

,

1920x1080 Payment Kiosk

,

OEM ODM Self Service Kiosk

Product Description

OEM ODM 24'' 27'' Payment Kiosk Self Service Kiosk Checkout Machine



Standard configuration:

  1. Top 19inch LCD display for advertising

  2. Below 17inch touch display

  3. Cash Acceptor

  4. Coin Acceptor

  5. Credit Card Reader / POS payment

  6. Receipt Printer

  7. Cash Dispenser (Optional)

  8. Coin Dispenser (Optional)

  9. Industrious PC,2G RAM,500G HDD



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech H61
CPU Intel Dual Core I5
RAM GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Width 58 /80 /112 mm
Length Customizable


Webcam



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
Encrypting Pinpad Keylift‐span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level IP65
Operating Temperature 0° C to 40° C
Motorized card reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Magnetic Head Life 500,000/min
500,000/min 300,000/min
Power Voltage DC 24V±5%
Cash acceptor Validation Rate 98% or higher
Banknote size Width: 62or 71mm; Length:120-160mm
Detection ability High detection of forged bills
Bill Escrow one bill
Cashbox capacity 1000 banknotes max
Operating Voltage 12V DC or 24V AC
Operating Temperature 0° C to 55 ° C (12 V DC platform); -18° C to +60 ° C (24 V AC platform)
Card dispenser Interface RS232
Card specification 86mm×54mm×0.2-1.8mm
Working environment From -30°C to 70°C
Contactless card reader Status Display LED indicator to show the power or communication status
Card Type ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Type Support ISO14443
Cheque scanner Image scan Range:A6 size(105mm),Duplex scan
Method:Color CIS(control image sensor)
Method:Color CIS(control image sensor)
Speed:500mm/s
MICR recognition E138 & CMC7
Interface RS232, USB
UPS Input voltage 145-290 V
Output voltage 200-255 V
Output frequency 50±0.5Hz
Transient time 50±0.5Hz
Max time for supplying a single PC 3~20minutes (for single PC)
Wireless module 3G module 1, Compatible with HSUPA, HSDPA, UMTS, EDGE, GPRS, GSM network
2, Browsing Internet at high speed of 7.2Mbps downlink and 5.76Mbps uplink rate in max
3, Sending and receiving short messages
4, Managing contacts
Interface: USB2.0, and USB1.1 compatible
Data transmission: Transmission rate will be depended on the live network
Alarm system sensor / IO control board Function Door alarm sensor with enternet function, SIM,SMS,CALL
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:

  1. Stainless metal keyboard with track ball

  2. Digital signature pad

  3. Cash dispenser

  4. Card dispenser

  5. Palm vein scanner

  6. Passport scanner

  7. Manual magnetic stripe swipe card reader

  8. ID scanner

Application



  • Supermarket

  • Retailer store

  • Coffe shop

  • Park

  • Gymnasium

  • Exibition

  • Coffe shop

  • Shopping Mall

  • Railway Station

  • Metro Station

  • Parking Lot

  • Bus station

  • Other Public area
