Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel

Product Details:
Place of Origin: China
Brand Name: LKS or OEM
Certification: CE, FCC
Model Number: LKS8227B
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6 weeks after payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
  • Detail Information
  • Product Description

Detail Information

Function1: Thermal Printing Function2: Passport Scanning
Function3: Credit Card Reader Function4: Payment Device By POS/Cash/Coin
Function5: Web Camera Function: OEM ODM
Appearance: Wall Mounted / Floor Stand Kiosk Screen: TFT LCD Capacity Touch Screen
System: Windows/Android OS Option: Human Sensor
High Light:

RS232 Check In Kiosk

,

HDD 500G Check In Kiosk

,

250cd Check In Terminal

Product Description

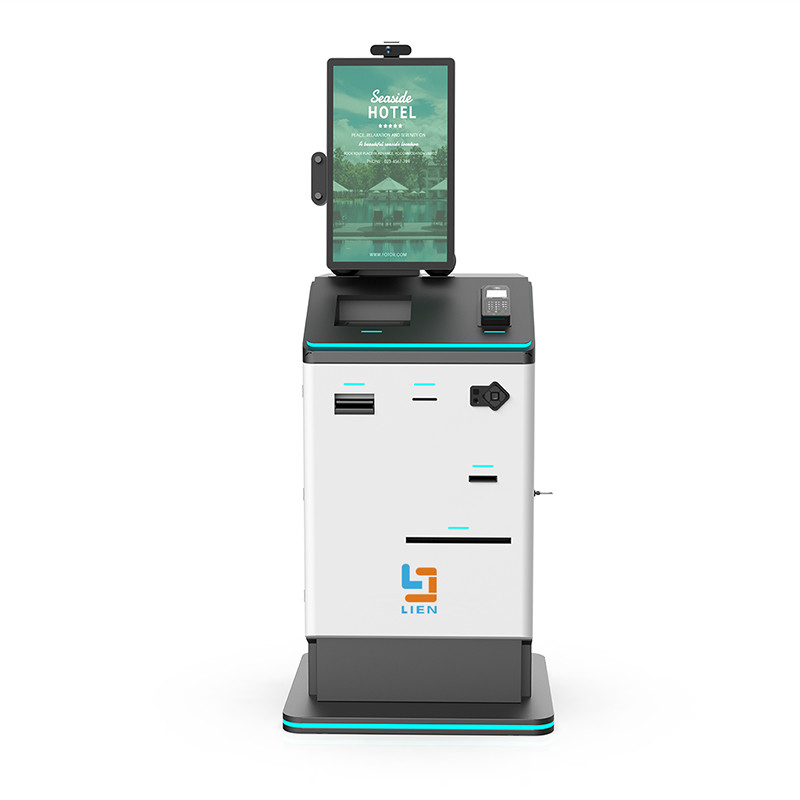

Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel



Holiday Village Self Passport Checkin Terminal Check Out POS Kiosk For Hotel



Standard hardware components List:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case





Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel 0Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel 1Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel 2


LEAN is one of Chinese biggest manufacturer of Self-service Kiosks for over 12 years, can fully custom appearance, Logo and functions (OS/Motherboard/Screen/Printer/Scanner/POS etc) upon the requirement.




Multi-application:



  • Banks
  • Hotel
  • Hospital
  • Theatre
  • Railway Station
  • Metro Station
  • Shopping Mall
  • Bus station
  • Airports
  • Other public areas





Main designs of Custom Self Service Payment Kiosk

Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel 3
Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel 4
Holiday Village RS232 Check In Kiosk Check Out POS Terminal For Hotel 5
