Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS or customized |
| Certification: | CE, FCC |
| Model Number: | LKS8501A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Units Hotel Check-In kiosk |
| Packaging Details: | Film wrap, foam and wooden box |
| Delivery Time: | 4-6 weeks upon payment |
| Payment Terms: | T/T in advance, Western Union, L/C |
| Supply Ability: | 1000 units per month |
|
Detail Information |
|||
| 21.5 Inch Screen: | Hotel Key Card Dispensing In Reception Lobby | Type: | Table Top Hotel Check-In Kiosk |
|---|---|---|---|
| Support: | Passport Scanner | Receipt Printer: | 80mm Width |
| Color: | Black/white | Material: | Cold-roll Steel Sheets |
| OEM/ODM: | Support | Key Card: | Hotel Card Dispenser |
| Hotel: | Hotel Reception Kiosk | Machine: | Hotel Lobby Check In |
| High Light: | OEM ODM Check In Kiosk,80mm width Check In Kiosk,OEM ODM Self Service Kiosk |
||
Product Description

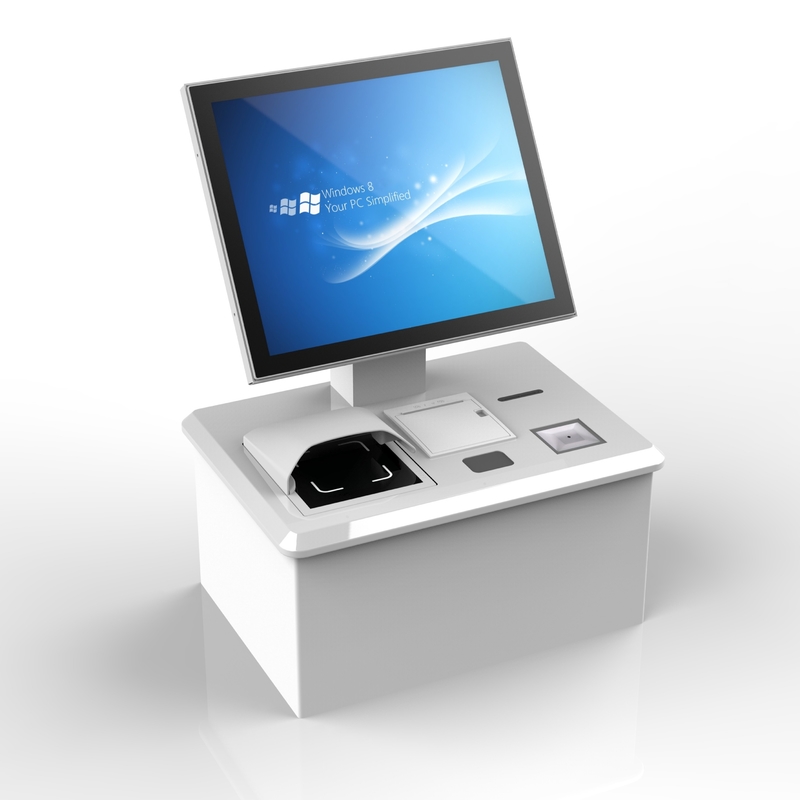

OEM ODM Check In Kiosk Hotel Key Card Dispensing In Reception Lobby
Hotel Check-In And Self-Service Kiosk For Hotel Key Card Dispensing In Reception Lobby
Our guest self-service kiosk gives guests an easy way to check in and out of your hotel and reduces lines at the front desk.
Streamlining Processes for Managers
Our Hotel check-in kiosks can instantly increase efficiency in any property, producing the kind of results you can see on a spreadsheet or with the naked eye. Eliminating front desk lines in favor of sleek guest check-in kiosks running the latest in hotel check-in software will increase guest satisfaction and operating efficiency.
Looking at it that way, the issue becomes not whether or not you should opt for a hotel self service kiosk, but which kiosk software provider you should choose.
A High-Tech Hotel Self-Service Kiosk
Our kiosk check-in operates on an intuitive check-in software that can easily be installed on several types of hardware. This allows you to choose the equipment that best fits the needs and aesthetics of your property.
Our hotel kiosk check-in system can be expanded as needed to account for your desires and budget, with optional manual key encoders, printers, and payment terminals.
Improve Operational Efficiency for Your Guests
Our kiosk check-in for hotels can radically improve your operational efficiency while providing ever more opportunities for upgrades, upsells, and impulse buys.
Add additional revenue sources to your hotel without adding additional labor costs. See how our hotel kiosk check-in can help expedite the check-in process for your guests and your team.
| Hardware Components Specification | ||||||||
| NO. | Components | Details | Picture | |||||
| 1 | 21.5 inch customized touch display | -Screen Diagonal 21.5 inch; -White Luminance 250cd/m2; -Contast Ratio 1000:1(typ); -Response time 5msec; -Resolution 1980*1024; -Working temperature "0 - 50℃; -Compliance RoHs compliance & TCO compliance. |
|
|||||
| 2 | Industrial windows PC | -Chipset: Intel® H310, TDP 6W CPU: Intel® 8th Generation CoreTM i5 RAM: 4G SSD: 120G (without License); -Expansion Interface: 1*PCIe x16; 2*Mini-PCIe (1*mSATA,1*Wifi/3G/4G supported) -Display Interface 1*HDMI: max resolution up to4096*2160@24Hz, 1*VGA: max resolutionup to 1920*1200@60Hz; Ethernet: 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45; Serial: 6*RS232 (Up to 18*RS232 with SVIO Module); USB: 4*USB 3.0, 6*USB 2.0 (Up to 18*RS232 with SVIO Module); Audio: Realtek® 5.1 channel HDA Codec, with MIC/Line-out -Temperature: Operation: 0℃~60℃, Storage: -25℃~75℃ Relative Humidity Operation: 10%~90%, Storage: 5%~95%, non-condensing -Operation system : Win10 & Linux ( without license), Customer can install the O.S with license locally |
|
|||||
| 3 | Passport scanner | -Illumination sources: Visible, IR(850nm); -Anti-glare: Elimination of glare from holographic anti-counterfeiting film and reflection of light; - Image Acquisition: Active scan area: 127mm x 88mm -CMOS, 500 Megapixels (2592*1944); - Imaging: Color Depth: 24 bits/pixels, Resolution: 500 DPI, Image Format: JPEG, BMP, PNG; -OCR Recognition: Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR Barcode: 1D: Code 128, Code 39, EAN-13, and etc 2D: PDF417, QR, DataMatrix™, and etc Scanning speed less than 1 second; -Software: Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program Programming Language: VC, VB, C#, Java, etc. Provide OCR SDK for Linux; |
|
|||||
| 4 | Thermal printer | -Printing method: Thermal dot line printing -Paper width: 80 mm -Print speed: 170 mm/s( max) -Dot density: 8 dots/mm -Total dots per line: 576dots -Printing width: 72mm -Paper thickness: 60～120um -Activation pulse resistance: 500,000 -Thermal head temperature detection: Thermal resistance -Working voltage: 24±10% V -Operation temperature -10~50 ℃(no condensation) -Interface Serial/TTL/USB |
|
|||||
| 5 | Card dispenser | -CARD SPECIFICATIONS: Size: 54x86mm Thickness: 0.3-2.0mm; -CARD DISPENSING: SPEED >1pcs/s; -CARD HOPPER CAPACITY 180pcs; -LIFETIME >2000000 Cycles; -INTERFACE RS-232/I/O TTL; -POWER SUPPLY DC24V ± 5%; -WORKING TEMPERATURE -40-+６５ °C |
|
|||||
| 6 | Logitech camera | - Video: Supports 1080p (Full HD) @ 30fps that enables expressions, non-verbal cues and movements to be seen clearly.; 90° diagonal fixed field of view (dFOV); 4x digital zoom (Full HD) available; Built-in HD autofocus ensures you’re seen clearly throughout video calls.; RightLight 2 auto light correction for clear image in various lighting environments ranging from low light to direct sunlight.; Supports H.264 UVC 1.5 with Scalable Video Coding for a smoother video stream in applications. -Audio: Dual omni-directional mics, optimized to capture audio clearly from up to one meter away. -Quality video. Any environment: A 90° diagonal field of view along with Full HD 1080p/30 fps resolution, autofocus and 4x zoom provide clear details for video meetings. -Noise-cancelling dual mics: Two integrated omnidirectional microphones, optimized to capture audio clearly from up to one meter away. -Smooth video with H.264 support: Supports H.264 with Scalable Video Coding and UVC 1.5 encoding to free up PC bandwidth and provide a consistently reliable video-conferencing experience. |
|
|||||
| 7 | Amplifier and stereo speakers | Dual channel amplified speakers for Stereo , 8Ω 5W. | ||||||
| 8 | Accessories | Power adaptors, security Lock for anti theft , tray for easy maintenance,ventilation fans,Wire-Lan Port; Power sockets for electricity, USB ports; Cables, Screws, etc. | ||||||
| 9 | KIOSK Cabinet | -Dimmension decided when finish production -Color & Logo Optional by customer -Material "1.5mm thickness cold-roll steel frame for outer kiosk boby; Electrostatic Painting high corrosion resistance and low conductivity -Features Elegant and smart design; Easy to install and operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free |
||||||
| 10 | Packing | Security Packing Method with bubble foam, anti-humidity plastic bag and strong case. | ||||||
Hotel Check-In And Self-Service Kiosk For Hotel Key Card Dispensing In Reception Lobby
SELF CHECK-IN KIOSKS FOR HOTELS WITH PASSPORT SCANNER, KEY ENCODE, CARD DISPENSER
