Smart Hotel 21.5inch Self Service Terminal For Check In And Check Out

Product Details:
Place of Origin: China
Brand Name: LKS or customized
Certification: CE, FCC
Model Number: LKS8501A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
  • Detail Information
  • Product Description

Detail Information

21.5 Inch Screen: LED / LCD TFT Monitor Type: Free Standing Hotel Check In Kiosk
Support: Bill And Credit Card Payment Billnote: Validate And Accept
Receipt Printer: 80 Mm Width Design: OEM/ODM
Color: Customized
High Light:

21.5inch Self Service Terminal


OEM ODM Self Ordering Kiosk


21.5inch Face Recognition Kiosk

Product Description

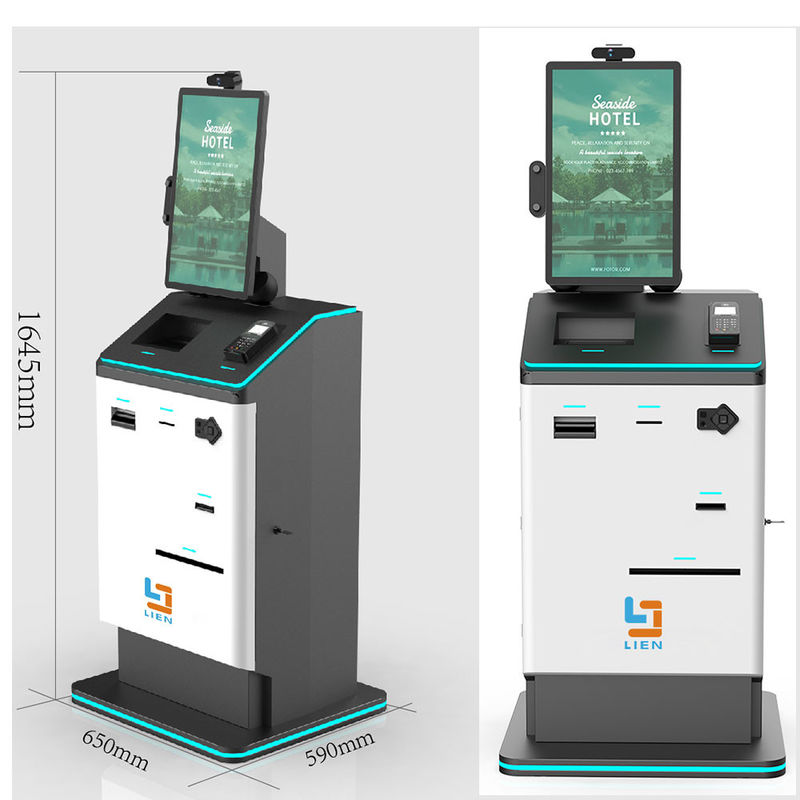

Smart Hotel 21.5inch Self Service Terminal For Check In And Check Out


21.5 Inch Smart Hotel Self-Service Terminal For Check In And Check Out With The Credit Card Payment And Face Recognition


• Reducing front desk workload, saving front desk staffing and costs, increasing hotel benefits.
• Privacy Protection, increasing the amount of open rooms.
• Smart operation and management saving customer’s time to queue up and improve hotel performance .
• The machine operate with impartial and selfless, safety control if process to check in without identity card.
• Saving time and smoothly operation by front-office, no one at the front desk becomes possible.
It brings convenient and comfortable new experience to customers, increasing customers' praise.
• Future hotel standard configuration.


Total Solution For Smart-Hotel

Why Smart Hotel

• Nowadays, with the help of the Internet+ model, it bring new business management to the hotel industry.
• The Wisdom Hotel adopts a variety of technical skills, combining the Internet of Things, Internet platforms, and mobile apps,PMSsystem, etc.
• Comprehensively enhance hotel value-added, improve service efficiency, increase occupancy rate, and save cost, increase profits

Self-service Check-in

• Saving customers’time to queue up at the front desk for registration, you only need to scan the ID card at the self-service terminal.
• After the information is verified successfully, the terminal will issue the electronic room card and the electronic lock to open the room password,
and the smart home operation right will be assigned to the mobile phone immediately. The entire process takes only 30 seconds to be completed

Smart Hotel 21.5inch Self Service Terminal For Check In And Check Out 0


Smart Hotel 21.5inch Self Service Terminal For Check In And Check Out 1

Smart Hotel 21.5inch Self Service Terminal For Check In And Check Out 2

NO. Components Details
1 21.5 inch customized touch display -Screen Diagonal 21.5 inch;
-White Luminance 250cd/m2;
-Contast Ratio 1000:1(typ);
-Response time 5msec;
-Resolution 1980*1024;
-Working temperature "0 - 50℃;
-Compliance RoHs compliance & TCO compliance.
2 Industrial windows PC -Chipset: Intel® H310, TDP 6W CPU: Intel® 8th Generation CoreTM i5 RAM: 4G SSD: 120G (without License);
-Expansion Interface: 1*PCIe x16; 2*Mini-PCIe (1*mSATA,1*Wifi/3G/4G supported)
-Display Interface
1*HDMI: max resolution up to4096*2160@24Hz,
1*VGA: max resolutionup to 1920*1200@60Hz;
Ethernet: 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45;
Serial: 6*RS232 (Up to 18*RS232 with SVIO Module);
USB: 4*USB 3.0, 6*USB 2.0 (Up to 18*RS232 with SVIO Module);
Audio: Realtek® 5.1 channel HDA Codec, with MIC/Line-out
-Temperature: Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity Operation: 10%~90%, Storage: 5%~95%, non-condensing
-Operation system : Win10 & Linux ( without license), Customer can install the O.S with license locally
3 Passport scanner -Illumination sources: Visible, IR(850nm);
-Anti-glare: Elimination of glare from holographic anti-counterfeiting film and reflection of light;
- Image Acquisition: Active scan area: 127mm x 88mm
-CMOS, 500 Megapixels (2592*1944);
- Imaging: Color Depth: 24 bits/pixels, Resolution: 500 DPI, Image Format: JPEG, BMP, PNG;
-OCR Recognition: Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
1D: Code 128, Code 39, EAN-13, and etc
2D: PDF417, QR, DataMatrix™, and etc
Scanning speed less than 1 second;
-Software: Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
Programming Language: VC, VB, C#, Java, etc. Provide OCR SDK for Linux;
4 Thermal printer -Printing method: Thermal dot line printing
-Paper width: 80 mm
-Print speed: 170 mm/s( max)
-Dot density: 8 dots/mm
-Total dots per line: 576dots
-Printing width: 72mm
-Paper thickness: 60~120um
-Activation pulse resistance: 500,000
-Thermal head temperature detection: Thermal resistance
-Working voltage: 24±10% V
-Operation temperature -10~50 ℃(no condensation)
-Interface Serial/TTL/USB
5 Card dispenser -CARD SPECIFICATIONS: Size: 54x86mm Thickness: 0.3-2.0mm;
-LIFETIME >2000000 Cycles;
6 Logitech camera - Video: Supports 1080p (Full HD) @ 30fps that enables expressions, non-verbal cues and movements to be seen clearly.;
90° diagonal fixed field of view (dFOV);
4x digital zoom (Full HD) available;
Built-in HD autofocus ensures you’re seen clearly throughout video calls.;
RightLight 2 auto light correction for clear image in various lighting environments ranging from low light to direct sunlight.;
Supports H.264 UVC 1.5 with Scalable Video Coding for a smoother video stream in applications.
-Audio: Dual omni-directional mics, optimized to capture audio clearly from up to one meter away.
-Quality video. Any environment: A 90° diagonal field of view along with Full HD
1080p/30 fps resolution, autofocus and 4x zoom provide clear details for video
-Noise-cancelling dual mics: Two integrated omnidirectional microphones, optimized
to capture audio clearly from up to one meter away.
-Smooth video with H.264 support: Supports H.264 with Scalable Video Coding
and UVC 1.5 encoding to free up PC bandwidth and provide a consistently reliable
video-conferencing experience.

Smart Hotel 21.5inch Self Service Terminal For Check In And Check Out 3
