Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS or customized |
| Certification: | CE, FCC |
| Model Number: | LKS8501A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Units |
| Packaging Details: | Film wrap, foam and wooden box |
| Delivery Time: | 4-6 weeks upon payment |
| Payment Terms: | T/T in advance, Western Union, L/C |
| Supply Ability: | 1000 units per month |
|
Detail Information |
|||
| 21.5 Inch Screen: | LED / LCD TFT Monitor | Type: | Free Standing Hotel Check In Kiosk |
|---|---|---|---|
| Support: | Bill And Credit Card Payment | Billnote: | Validate And Accept |
| Receipt Printer: | 80 Mm Width | Design: | OEM/ODM |
| Color: | Customized | ||
| High Light: | 27inch Check In Kiosk,250cd Check In Kiosk,27inch Self Service Terminal |
||
Product Description

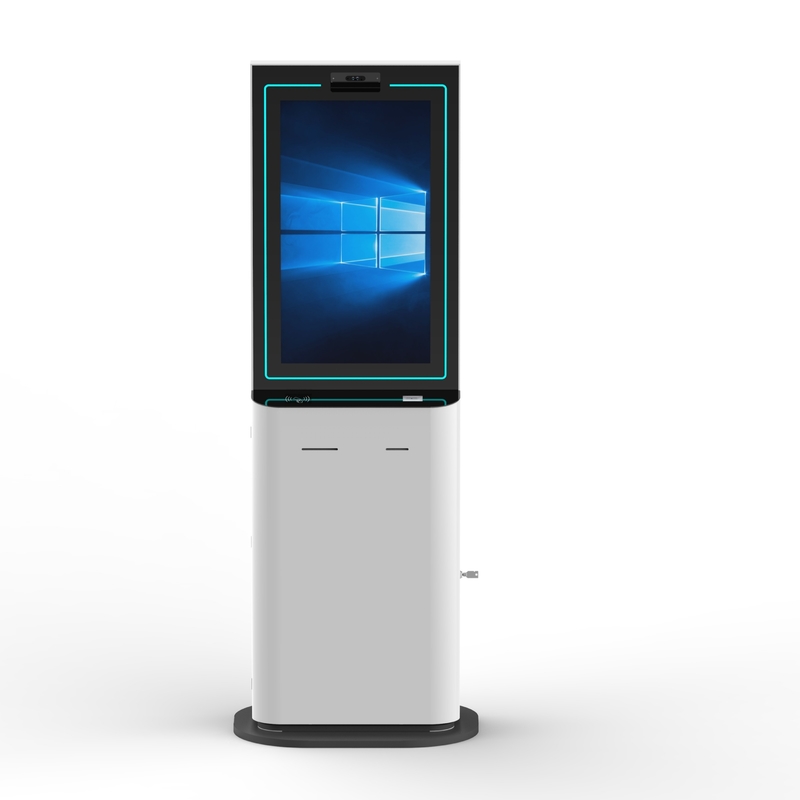

Customized 27inch Check In Kiosk Smart Hotel Self Service Terminal
27 Inch Smart Hotel Self-Service Terminal For Check In And Check Out
What Can Kiosk Hotels Do?
Kiosk hotels device is used in the hotel industry to ease the process of the hotel’s front desk and for the guest.
The hotelier can shift the check-in process from the front desk to the kiosk. It will reduce the front desk queue and automate the process.
Also, it will help the guest to check in without standing in the queue. As it creates a very bad experience if any guest arrives at the hotel and they have to stand in the queue for checking in.
Here hotel kiosk helps, the guest can enter the booking details and can do the check-in, and get the room pass key.
Elevate the Guest Experience
Expedite guest service operations by enabling guests to check-in, encode a room key, checkout and email a folio—all without having to wait in line at the front desk.
Simplify the check-in and check-out processes, enhance the guest experience and optimize
staff productivity. More and more properties are reducing their overhead by implementing
self-service options, and with the Express Kiosk, you can elevate the level of service without
growing your staff.
Better Service. Better Reviews.
Help make travel more enjoyable by offering a fast and easy approach to efficient service.
• Multiple design options include free standing and countertop designs.
• Increase revenue by selling room upgrades during check-in.
• Scan and verify driver’s license or Passports with the integrated ID scanner.
• Integrated EMV device ensures card present transactions, lowering risk.
• Guests can request that folio receipts be emailed or mailed to an address based on
information captured.
• Automated check-in and check-out, allows employees to concentrate on providing the
guest services that help create a lasting impression.
• Reprint room keys at any time, without having to wait in line at the front desk.
• Available for all guests, including guests who booked via a 3rd party. Guests can update
their contact information during the check-in process.
More Convenience for the Self-serve Population
Self-service kiosks are not only delivering what guests expect from your property, they’re also
exceeding the technology expectations of modern operators. There is heavy competition to
differentiate with more self-service options while saving on overhead.
| NO. | Components | Details | |||
| 1 | 21.5 inch customized touch display | -Screen Diagonal 21.5 inch; -White Luminance 250cd/m2; -Contast Ratio 1000:1(typ); -Response time 5msec; -Resolution 1980*1024; -Working temperature "0 - 50℃; -Compliance RoHs compliance & TCO compliance. |
|||
| 2 | Industrial windows PC | -Chipset: Intel® H310, TDP 6W CPU: Intel® 8th Generation CoreTM i5 RAM: 4G SSD: 120G (without License); -Expansion Interface: 1*PCIe x16; 2*Mini-PCIe (1*mSATA,1*Wifi/3G/4G supported) -Display Interface 1*HDMI: max resolution up to4096*2160@24Hz, 1*VGA: max resolutionup to 1920*1200@60Hz; Ethernet: 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45; Serial: 6*RS232 (Up to 18*RS232 with SVIO Module); USB: 4*USB 3.0, 6*USB 2.0 (Up to 18*RS232 with SVIO Module); Audio: Realtek® 5.1 channel HDA Codec, with MIC/Line-out |
|||
| 3 | Passport scanner | -Illumination sources: Visible, IR(850nm); -Anti-glare: Elimination of glare from holographic anti-counterfeiting film and reflection of light; - Image Acquisition: Active scan area: 127mm x 88mm -CMOS, 500 Megapixels (2592*1944); - Imaging: Color Depth: 24 bits/pixels, Resolution: 500 DPI, Image Format: JPEG, BMP, PNG; -OCR Recognition: Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR Barcode: 1D: Code 128, Code 39, EAN-13, and etc 2D: PDF417, QR, DataMatrix™, and etc Scanning speed less than 1 second; -Software: Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program Programming Language: VC, VB, C#, Java, etc. Provide OCR SDK for Linux; |
|||
| 4 | Thermal printer | -Printing method: Thermal dot line printing -Paper width: 80 mm -Print speed: 170 mm/s( max) -Dot density: 8 dots/mm -Total dots per line: 576dots -Printing width: 72mm -Paper thickness: 60～120um -Activation pulse resistance: 500,000 -Thermal head temperature detection: Thermal resistance -Working voltage: 24±10% V -Operation temperature -10~50 ℃(no condensation) -Interface Serial/TTL/USB |
|||
| 5 | Card dispenser | -CARD SPECIFICATIONS: Size: 54x86mm Thickness: 0.3-2.0mm; -CARD DISPENSING: SPEED >1pcs/s; -CARD HOPPER CAPACITY 180pcs; -LIFETIME >2000000 Cycles; -INTERFACE RS-232/I/O TTL; -POWER SUPPLY DC24V ± 5%; -WORKING TEMPERATURE -40-+６５ °C |
|||
