Cash / Bank Card Reader Self Checkout Kiosk Industrial PC For Hotel / Suppermarket

Product Details:
Place of Origin: China
Brand Name: LKS / ODM / OEM
Certification: CE, FCC
Model Number: LKS8309D
Payment & Shipping Terms:
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
  • Detail Information
  • Product Description

Detail Information

Monitor: AUO 15-17 Inch LED / LCD TFT Touch Screen: 15-17 Inch IR Multiple IR Touch Technology
Card Storage: 120~250 Units As Optional Painting: Powder Coat
Color: Pantone Logo: Silkscreen Print
High Light:

self service ticket machine


prepaid card kiosk


LCD TFT screen Self Checkout Kiosk

Product Description


Self-checkout Kiosk with/without cash dispenser for Hotel/suppermarket,Payment Kiosk with cash/bank card reader reduce Cost

Standard configuration:


  1. 15-17 inch monitor
  2. 15-17 inch IR touch screen
  3. Industrial PC
  4. Card dispenser
  5. Motorized bank card reader
  6. Receipt printer
  7. Encrypted Pinpad
  8. Contactless IC / RF / NFC card reader
  9. Speaker
  10. Free standing single screen cabinet

Specification  is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 1TB/ SSD 128/256G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 15-17 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 15-17 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Width 58 /80 /112 mm
Length Customizable



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
Encrypting Pinpad Keylift‐span 2,000,000 cycles
Key force 2~3N
Key trip  >2.5mm
Protection level IP65
Operating Temperature  0° C to 40° C
Motorized card reader Interface RS232
Card Type Support Magcard, IC Card, RF Card,  Mifare S50,S70,UL Card
Magnetic Head Life 500,000/min
500,000/min 300,000/min
Power Voltage  DC 24V±5%
Cash acceptor Validation Rate 98% or higher
Banknote size Width: 62or 71mm; Length:120-160mm
Detection ability High detection of forged bills
Bill Escrow one bill
Cashbox capacity 1000  banknotes max
Operating Voltage  12V DC  or 24V AC
Operating Temperature 0° C to 55 ° C  (12 V DC platform);  -18° C to +60 ° C  (24 V AC platform)
Card dispenser Interface RS232
Card specification 86mm×54mm×0.2-1.8mm
Working environment From -30°C to 70°C
UPS Input voltage 145-290 V
Output voltage 200-255 V
Output frequency 50±0.5Hz
Transient time 50±0.5Hz
Max time for supplying a single PC 3~20minutes (for single PC)
IO control board Function Door alarm sensor with enternet function
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:

  1. Palm vein scanner
  2. WIFI or 3G / WLAN / 4G Wireless module
  3. Coin validator
  4. Cash dispenser
  5. Coin dispenser
  6. Manual magnetic stripe swipe card reader
  7. Fingerprint scanner
  8. QR Code scanner
  9. Handset
  10. A4 Laser printer


Other Applications


  • Airplane boarding room
  • Bank
  • Hospital
  • Tourism spot
  • Convenience store
  • Hypermarket
  • Supermarket
  • Hotel
  • School
  • Shopping mall
  • Retail store
  • ATM / VTM / ITM booth
  • High railway boarding room
  • Museum
  • Human resources room
  • Railway Station
  • Metro Station
  • Highway station
  • Bus station
  • Other Public area




  • Desigh for higher standard and have a much longer life-cycle,with commecial-grade electronics

  • Help cut the lines,Serve customers with mininal involvement from staff

  • Display all preferences and items effectively,Increase sales opportunities and boosts the possibilities of repeat customers

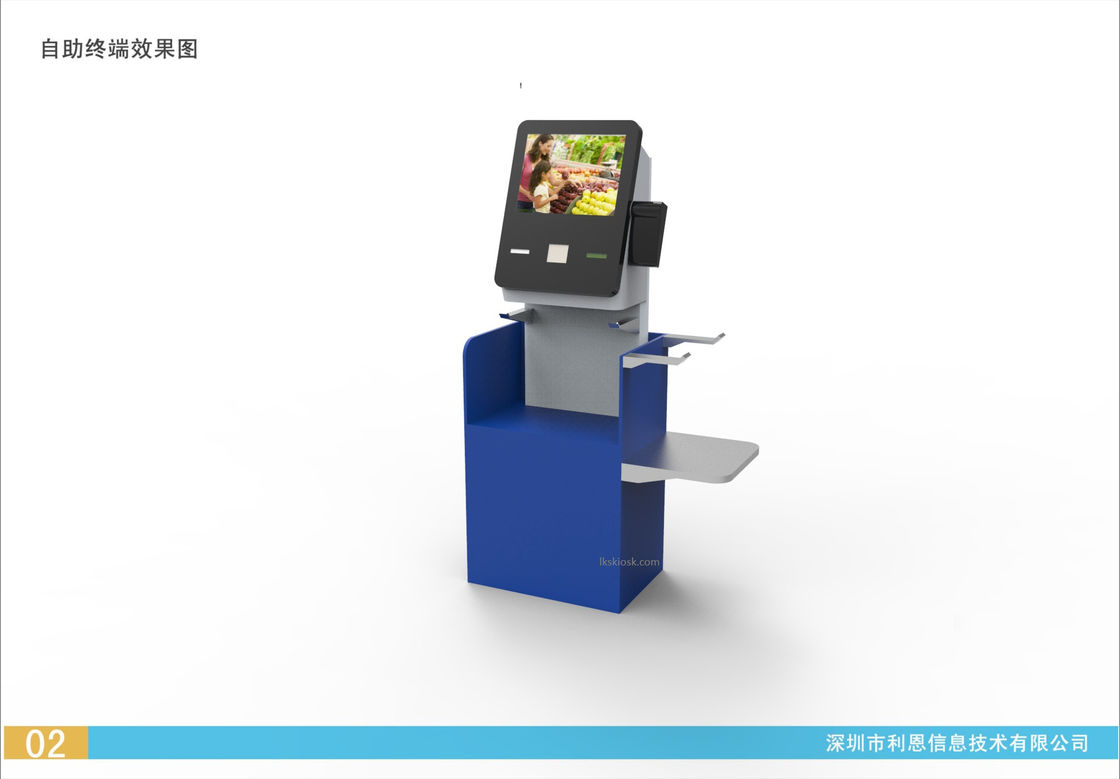

Cash / Bank Card Reader Self Checkout Kiosk Industrial PC For Hotel / Suppermarket 0

  •  Hardware agnostic and we can retrofit
  • Customizable design in color and LOGO



The reason you choose LKS:


  1. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration.
  2. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba;
  3. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  4. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  5. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
