International Currency Bill Payment Kiosk , Transaction Receipt Giving

Product Details:
Place of Origin: China
Brand Name: LKS / ODM / OEM
Certification: CE, FCC
Model Number: LKS8598A
Payment & Shipping Terms:
Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
  • Detail Information
  • Product Description

Detail Information

Currency: International Currency Banknote Dimension: Width: 62or 78mm; Length:160-180mm
Detection Rate: Higher Than 98% Bill Inserting: Four-way
Cash Out: One Or Bunch Bill At One Time Other: 50 Bills At One Bunch Maximum
High Light:

500G HDD cash payment kiosk

,

FCC electricity bill payment kiosk

,

2G RAM payment kiosk machine

Product Description

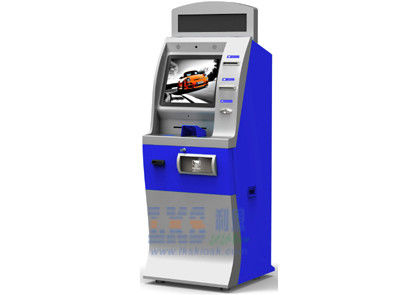

International Currency Bill Payment Kiosk , Transaction Receipt Giving


Standard configuration:


  1. 19 inch HD monitor
  2. 19 inch IR touch screen
  3. HD Webcam
  4. Industrial PC,2G RAM,500G HDD
  5. Speaker
  6. Pinhole camera
  7. Dot matrix ticket printer
  8. Contactless IC / RF / NFC card reader
  9. Cash acceptor
  10. Wireless module like WLAN
  11. Thermal receipt printer *2
  12. Motorized card reader
  13. Encrypted pinpad
  14. Cash / Coin dispenser
  15. LED displaying
  16. UPS
  17. Free standing single screen cabinet


Standard specification  is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Bill dispenser Denominations 1.2.3.4 denominations to be dispensed as optional
Cassette capacity 600 ~ 3000 billnotes as optional
Dispensing speed Less than 2 seconds / billnote
Billnote dimension width: 100-162mm; height: 62-78mm
Interface RS232
Coin dispenser Coin capacity 1500 coins maximum
Coin dimmension Diameter: 18-28.5mm; Thickness: 1.65-3.2mm
Interface RS232
Dot matrix printer Printing dimension Width:145 mm maximum
Auto cutter Full or half cut
Printing speed 480 letters / second
Interface RS232
Epson receipt thermal printer *2 Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
Pinhole camera Resolution PAL: 976(H)*582(V) NTSC: 976(H)*494(V)
Focal distance 3.7mm
SNR >52dB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case


Webcam



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
Contactless IC / RF / NFC card reader Status Display LED indicator to show the power or communication status
Card Type  ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Type Support  ISO14443
Wireless module WLAN module With industrious antenna exposure
 LED displaying Function Single or multiple colors letters displaying
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W


Other Optional hardware components List is as following:



  1. Coin acceptor
  2. Palm vein scanner
  3. ID / Driver licence / Social insurance card double-side scanner
  4. Member / SIM card dispenser
  5. Fingerprint scanner
  6. Passport scanner
  7. ID reader
  8. Stainless metal keyboad with track ball
  9. Digital signature pad
  10. POS terminal
  11. Barcode scanner
  12. Manual magnetic stripe swipe card reader
  13. Cheque scanner / acceptor with MICR function
  14. Advertising monitor



International Currency Bill Payment Kiosk , Transaction Receipt Giving 0


Application



  • Amusement park
  • Convenience store
  • ATM / VTM / ITM booth
  • Hypermarket
  • Hospital
  • Grocery
  • Museum
  • Supermarket
  • Bank
  • Retailer store
  • Coffe shop
  • Park
  • Gymnasium
  • Conference lobby
  • Exibition
  • Coffe shop
  • Shopping Mall
  • Railway Station
  • Metro Station
  • Parking Lot
  • Bus station
  • Other Public area




Our Advantages:



  • Accomplish multiple tasks in a single multi-function kiosk
  • Desigh for higher standard and have a much longer life-cycle,has commecial-grade electronics

  • Display all preferences and items effectively,Increase sales opportunities and boosts the possibilities of repeat customers

  • Modular components that work together, but can be tested independently.

  • Help cut the lines,decrease less staff involvement

  • Automate high demand functions



 Appearance


  • Eyesight attractive,Coloful design
  • Hardware agnostic and we can retrofit
  • Robust and secured cabinet
  • Brand promotion with LOGO displaying and advertise video displaying





The reason you choose LKS:



  1. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units;
  2. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary;
  3. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba,overseas like Oscar.
  4. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it;
  5. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration;
  6. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts;
