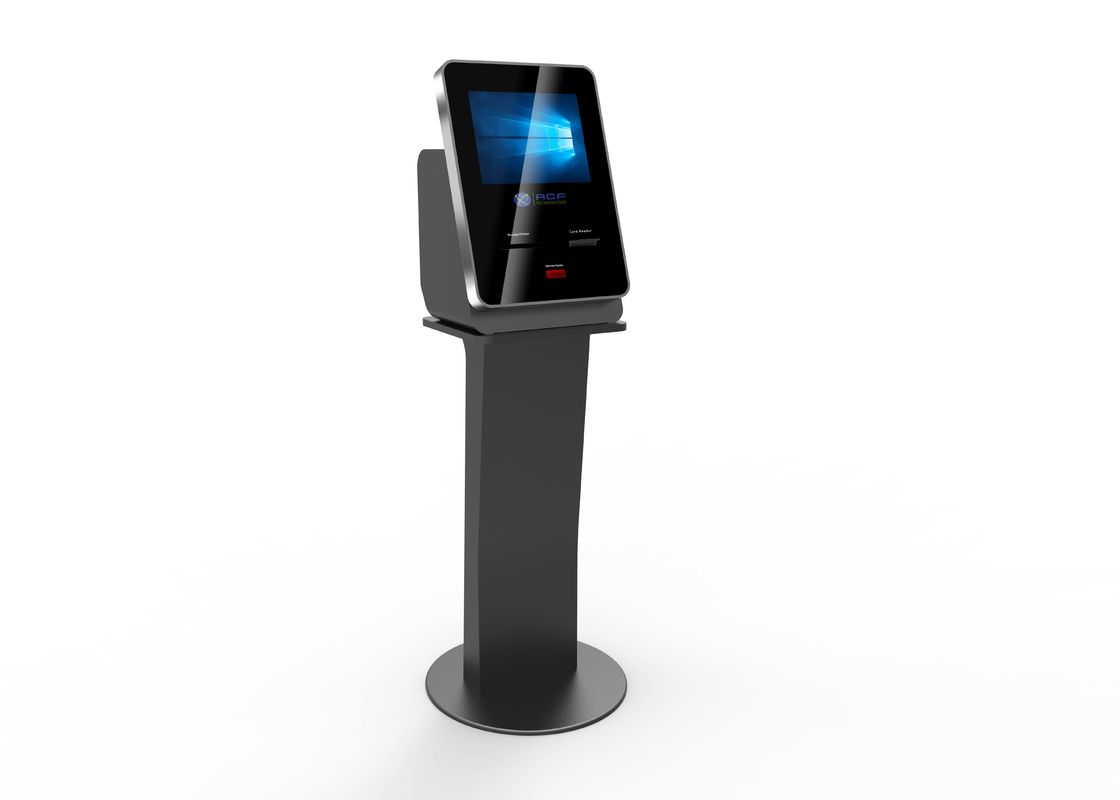

Scanner Barcode card Reader payment Kiosk

Scanner Barcode card Reader payment Kiosk

  • Scanner Barcode card Reader payment Kiosk
  • Scanner Barcode card Reader payment Kiosk
Scanner Barcode card Reader payment Kiosk
Product Details:
Place of Origin: China
Brand Name: LKS / ODM / OEM
Certification: CE, FCC
Model Number: LKS6332
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: Film Wrap,Foam and Wooden Box
Delivery Time: 4-6weeks upon payment
Payment Terms: T/T in Advance
Supply Ability: 1000-2000 units per month
Contact Now
Detailed Product Description
Barcode: QR Code Biometrics: Palm Vein Scanner
Monitor: Tempered And Privacy Glass Security: Door Switch
User's Guide: Amplifier Other: Cashless Transaction
High Light:

atm cash machine

,

automatic teller machine



 Scanner Barcode Card Reader payment kiosk



Standard configuration:



  1. 17 inch monitor
  2. 17 inch IR touch screen
  3. Fanless PC
  4. Industrious PC,2G RAM,500G HDD
  5. HD Webcam
  6. Palm vein scanner
  7. Speaker
  8. Barcode scanner
  9. UPS
  10. Free standing single screen cabinet



Specification  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech H61
CPU  Intel
RAM 4 GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Barcode scanner Supportive barcode  2D PDF417, QR Code(Model 1/2),  DataMatrix(ECC200, ECC000, 050, 080, 100,140),      Aztec, Maxicode, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc

Webcam



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
UPS Input voltage 145-290 V
Output voltage 200-255 V
Output frequency 50±0.5Hz
Transient time 50±0.5Hz
Max time for supplying a single PC 3~20minutes (for single PC)
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Free standing Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case




Other Optional hardware components List is as following:



  1. Stainless metal keyboard with track ball
  2. Digital signature pad
  3. Cash / coin acceptor
  4. Cash dispenser
  5. Fingerprint reader
  6. Coin dispenser
  7. Passport scanner
  8. Manual magnetic stripe swipe card reader
  9. ID scanner
  10. Receipt printer
  11. Bank card reader
  12. EPP





Application




ITM booth , ATM booth , VTM booth , Financial agency , Bank , Supermarket , Retailer store,Coffe shop,Park,Gymnasium,Exibition ,Coffe shop,Shopping Mall,Railway Station,Metro Station,Parking Lot

Bus station,Other Public area.






Our Advantages:


Suitable for  24 / 7 Operation


  • Fixed on floor and lockable
  • No staff needed during night
  • No watch out needed except routine maintenance
  • Remote control by wireless or wire connection
  • No labor force needed except maintenance
  • Less power consuming and more stable Industrious modules
  • Inner air recycling design for heat and humidity control
  • Alarm system sensor with instant reporting function



Cost-saving solution



  • Rigorous quality control
  • Independent modular hardward devices
  • Maintenance free,user friendly
  • Complete supply chain management
  • Design and production on our own


 Appearance



  • Brand promotion with LOGO displaying and advertise video displaying
  • Customizable decorations,unique design
  • Robust and secured cabinet
  • Ergonomics





The reason why you choose LKS:



  1. LKS has professional software development team which all members are with years experience,we make practical suggestions and provide best solutions by taking all factors into consideration
  2. LKS has sheet metal and kiosk assembling factories,monthly productivity is more than 1,000 units
  3. LKS has 100%  yearly growth rate during last three years,our partners come from bank like China Construction Bank, IT company like Alibaba
  4. LKS is meant to internationalize its brand and company by providing unparalleled service ,like sending engineers at site to install and do maintenance if necessary
  5. LKS has dozens of different samples in stock and delivery is within one week by just doing a little changes to suit your needs,besides there is no any extra sample fee for it
  6. LKS has complete and standard procedure to proceed orders,we will send 3D drawing to you for confirmation before any production starts
