China Kiosk Manufacturer Payment Terminal With Antenna

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8364

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

atm kiosk

,

self service payment kiosk

Kiosk Type::
Kiosk Design Ideas
Application::
Banking, Retail,Post, Transport, Library,
Thickness Of Enclosure:
1.5mm Or 3.0mm Or Upon Clients
Brightness:
250cd/㎡
Supported OS:
Windows 7 Or Windows Xp /2003 Or Linux Or Unix
Material Feature:
Anti-dust, Anti-vandal
Kiosk Type::
Kiosk Design Ideas
Application::
Banking, Retail,Post, Transport, Library,
Thickness Of Enclosure:
1.5mm Or 3.0mm Or Upon Clients
Brightness:
250cd/㎡
Supported OS:
Windows 7 Or Windows Xp /2003 Or Linux Or Unix
Material Feature:
Anti-dust, Anti-vandal
Product Description

    LKS China Kiosk Manufacturer Payment Terminal With Antenna is developed specifically for Payment use in Bank, Hospital, Railway Station, Metro Station, Parking Lot, Theatre, Shopping Mall, etc.



   China Kiosk Manufacturer Payment Terminal With Antenna  / payment kiosk / best sell kiosk  is manufactured in Cold-Roll Steel Sheets using steel plate of 1,5mm to 2.5mm which ensures the stability and rigidity of all structure.



  China Kiosk Manufacturer Payment Terminal With Antenna ,  payment kiosk, best sell kiosk  are including touch screen self payment kiosk, touch screen bill payment kiosk, Coin Operated Wifi Kiosk ,Touch Screen Display self service payment kiosk, payment terminal atm kiosk, Kiosk On Wheels  Kiosk, swipe card reader kiosk, self payment terminal kiosk, Kiosk Design Ideas wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk , pinpad payment kiosk,etc.



China Kiosk Manufacturer Payment Terminal With Antenna Main components ​:

  1. Industrious PC
  2. 21inch top LCD monitor for advertising
  3. Webcamera
  4. A4 laser printer
  5. High speed video shooting
  6. Smart card reader
  7. 2D barcode scanner
  8. Cash acceptor
  9. Coin acceptor
  10. 17 inch IR touch screen
  11. Speaker
  12. Free standing single screen cabinet
  13. Wireless Module
  14. Receipt Printer
  15. ID Card Reader
  16. Metal Keyboard with Trackball or Touchpad(64 Keys)

Standard hardware components List  is as following :



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6* RS-232 Ports;1* LTP;6 * USB Ports,8*GPIO;1*PCI
PC Power Supply HUNTKEY/Great Wall
RFID Card Reader Reading distance >4cm
Operating system windows98,Me ,XP,2003 ,Unix and Linux
Card contact number 200000 Secondary
Operating temperature -20℃ to 60℃
Whether contact Non-contact
Interface Serial ports,USB
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Touch accuracy center: <1.5mm
edge: <3.2mm
Response time <16ms
Voltage DC5V+/-5%
Interface RS232,USB
Glass thickness 3mm
Resolution 4096x4096
Receipt printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Paper thickness 0.06-0.15mm
Supply voltage DC24V
Passport Scanner Product Type Flatbed color image sensor
Host interface USB ( Universal Serial Bus)
Image Sensor CMOS CIS ( Contact image sensor)
Resolution hardware optical 600dpi
Paper thickness >0.1mm
Scanning area 5.0"maximum scan width and 3" maximum scan length
wireless module TP-Link-GP-WB223MS
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam+wooden case




Other Optional hardware components List of China Kiosk Manufacturer Payment Terminal With Antenna is as following:

1.   Card dispenser

2.   Metal keyboard with trackball

3.   Fingerprint reader



Main designs of China Kiosk Manufacturer Payment Terminal With Antenna​ ​:



Kiosk Design Ideas

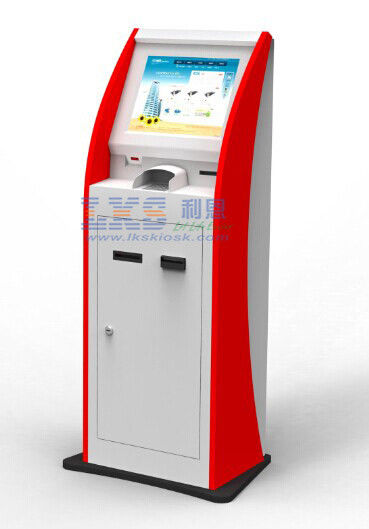

Pictuer of the China Kiosk Manufacturer Payment Terminal With Antenna​​ :

China Kiosk Manufacturer Payment Terminal With Antenna 1 China Kiosk Manufacturer Payment Terminal With Antenna 2





Process of followsheet of LKS China Kiosk Manufacturer Payment Terminal With Antenna :


Kiosk Design Ideas

 Mass producing of LKS China Kiosk Manufacturer Payment Terminal With Antenna​​ :

3



Certificates of LKS China Kiosk Manufacturer Payment Terminal With Antenna​​​ :


China Kiosk Manufacturer Payment Terminal With Antenna 5

Receiption Desk of  LKS China Kiosk Manufacturer Payment Terminal With Antenna​​​ :



reception



Office of LKS China Kiosk Manufacturer Payment Terminal With Antenna​ :



office new



Shipping terms for China Kiosk Manufacturer Payment Terminal With Antenna​​​ :



Kiosk Design Ideas



 Welcome to contact us and send inquiry now!
