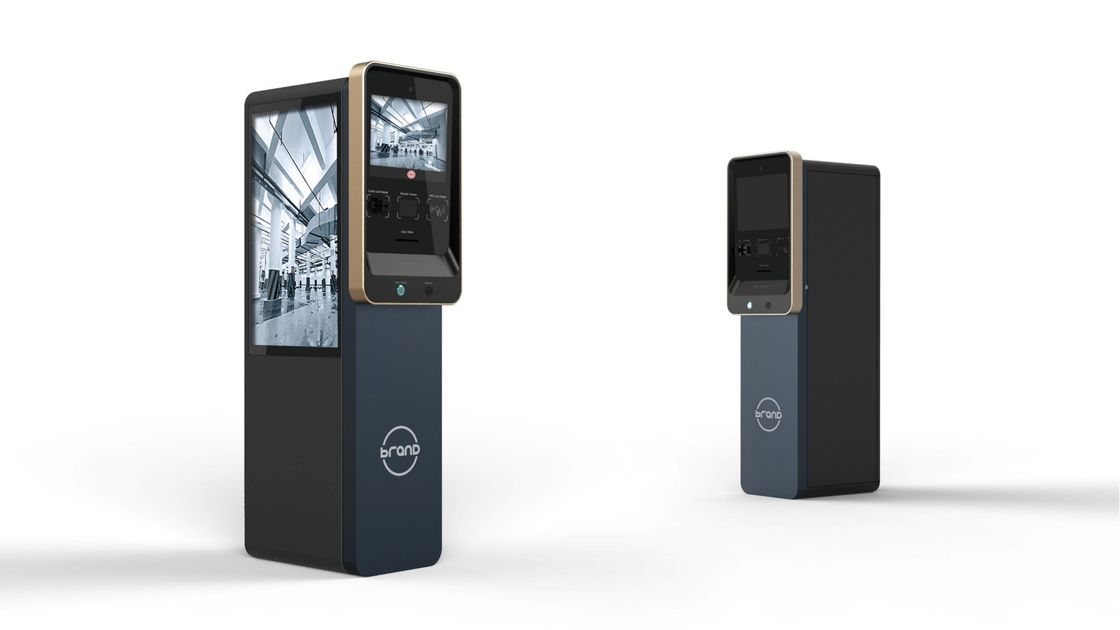

Smart Elegant Design Cash Payment Kiosk Anti - Vandal For Multi Function

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8310

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
High Light:

atm kiosk

,

self service payment kiosk

Kiosk Type::
Kiosk Design Ideas
Application::
Banking, Retail,Post, Transport, Library,
Thickness Of Enclosure:
1.5mm Or 3.0mm Or Upon Clients
Brightness:
250cd/㎡
Supported OS:
Windows 7 Or Windows Xp /2003 Or Linux Or Unix
Material Feature:
Anti-dust, Anti-vandal
Kiosk Type::
Kiosk Design Ideas
Application::
Banking, Retail,Post, Transport, Library,
Thickness Of Enclosure:
1.5mm Or 3.0mm Or Upon Clients
Brightness:
250cd/㎡
Supported OS:
Windows 7 Or Windows Xp /2003 Or Linux Or Unix
Material Feature:
Anti-dust, Anti-vandal
Product Description

  company introdution



Shenzhen Lean Kiosk Systems Co.,LTD ( LKS for short as following ) is a professional kiosk manufacturer engaged in all kinds payment kiosk, information kiosk, touch screen kiosk, ticket dispenser kiosk, banking kiosk, simple ATM kiosk, advertising kiosk, outdoor kiosk, self-service vending machine etc.

   LKS kiosk products have been widely applied to bank, hospital, cinema, super market, convenient store, shopping mall, restaurant, metro station, bus station, gas station, exhibition hall, museum, airport, real estate property and other public areas.    LKS is with his own professional design team, R& D team, purchase team, production team, sales team, inspection team and after-sale services team. LKS pay more attention to the best quality products, quick response and warmest services to customers all over the world.   We offers standard kiosk products as well as customization services to meet customer's specific requirements. With our experienced teams, we have the capability to design and develop the best quality products that will make you stand out against competitors. We are dedicated to working with you to provide solutions to suit your needs and applications.



Smart Elegant Design Payment Kiosk For Multi Function​​ ​​​:

  • Industrious PC
  • 21inch top LCD monitor for advertising
  • Webcamera
  • A4 laser printer
  • High speed video shooting
  • Smart card reader
  • 2D barcode scanner
  • Cash acceptor
  • Coin acceptor
  • 17 inch IR touch screen
  • Speaker
  • Free standing single screen cabinet
  • Wireless Module
  • Receipt Printer
  • ID Card Reader
  • Metal Keyboard with Trackball or Touchpad(64 Keys)

Standard hardware components List  is as following :




Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface

6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;

Integrated Net Card, Sound Card

PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096

High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);

pure tempered glass;Single-point touch Life expectancy more 50,000,000 times

Receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
Digital Power Supply AC input voltage range 100‐240VAC
Frequency 50Hz to 60Hz
Output over current protection 110~130%
AC input voltage range 100‐240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet

Durable steel frame, Slim and smart design; Easy to install and operate; Moistureproof,

Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.

Packing Security Packing method with bubble foam+wooden case






 List of Smart Elegant Design Payment Kiosk For Multi Function is as following:



  • 1.   Card dispenser
  • 2.   Metal keyboard with trackball
  • 3.   Fingerprint reader
