Dustproof Indoor Bill Payment ATM Kiosk Automatic Banking Machine

Product Details

Place of Origin: China

Brand Name: LKS or customized

Certification: CE, FCC

Model Number: LKS8381D

Payment & Shipping Terms

Minimum Order Quantity: 10 units

Packaging Details: Film Wrap,Foam and Wooden Box

Delivery Time: 4-6weeks upon payment

Payment Terms: T/T in Advance

Supply Ability: 1000-2000 units per month

Get Best Price
Product Details
Highlight:

atm cash machine

,

kiosk atm machine

Type:
Atm Kiosk
Orange:
Color And Logo Are Upon Clients' Request
Custom Design:
Waterproof,dustproof,anti-explosion Etc
Supported OS:
Windows 7 Or Windows Xp (test Version Without License)
Standard Kiosk:
Self-service Kiosk, Payment Kiosk, Touch Screen Kiosk,etc.
Material Of Cabinet:
Cold-roll Steel Sheet Or Others
Power Supply:
110V-120V,220V-240V Or Optional
Warranty:
One Year
Type:
Atm Kiosk
Orange:
Color And Logo Are Upon Clients' Request
Custom Design:
Waterproof,dustproof,anti-explosion Etc
Supported OS:
Windows 7 Or Windows Xp (test Version Without License)
Standard Kiosk:
Self-service Kiosk, Payment Kiosk, Touch Screen Kiosk,etc.
Material Of Cabinet:
Cold-roll Steel Sheet Or Others
Power Supply:
110V-120V,220V-240V Or Optional
Warranty:
One Year
Product Description



Dustproof Indoor Bill Payment ATM Kiosk Automatic Banking Machine

 Main functions:

  1. Material of Cabinet:1.5mm to 3mm Cold-roll sheet or others
  2. Material Feature: Anti-dust, Anti-vandal
  3. Supported OS: windows 7, windows 8 or Linux
  4. Type: Multifunction ATM kiosk, self-service kiosk, touchscreen kiosk
  5. Optional size of screen: 17inch, 19inch or upon customers’ request
  6. Application: Indoor
  7. Touch Screen: IR/SAW/Capacitive
  8. Display: LCD, TFT, AUO or others
  9. Kiosk Color: upon the customer’s request
  10. Parts: Cash acceptor/Coin acceptor/Card reader/receipt printer….
  11. Warranty: 1 year
  12. Power supply: 110-120V, 220V-240V or optional
  13. Logo: By customer’s needs


Standard hardware components List of   Automatic Banking Machine ATM Indoor Bill Payment Kiosk is as following:


Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Resolution  4096x4096
Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader Interface RS232
Card Type Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage DC 24V±5%
Card Entry method Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad Keylift~span 2,000,000 cycles
Key force 2~3N
Key trip >2.5mm
Protection level ip65
Cashcode Bill acceptor Validation Rate 96% or higher
Banknote Insertion Four-way
Escrow One banknote
Capacity 1000 notes Max
Coin Acceptor Coin Acceptance Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins with high detection ability of counterfeit coins
Accepting Speed 2 Coins/Sec
Supply Voltage 10V-16V DC
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case



Other Optional hardware components List of LKS Android Payment Terminal Atm Kiosk With A4 Printer Payment Kiosk is as following:


  1. Barcode scanner
  2. Web camera
  3. RFID Card reader
  4. Passport reader
  5. Cash dispenser
  6. Web camera
  7. Finger Reader


Description :



    Bank self-help terminal function mainly includes: cash, cash deposits, cash deposit and      withdrawal, balance query, or bank transfer, the basic function such as change the password;Some multi-functional self-service terminal also provide certificate such as printing, envelopes, print statements, a checking account deposits, capture expends, prepaid phone, and a series of convenient services.

Solution value:
    1. Security and stability, the use of multiple encryption algorithm, to ensure that the user      information security, terminal according to standard industrial-grade, riot, guard against theft,     and other functions
    2. Beautiful and easy, can very good show the image of bank and improve customer     satisfaction
    3. Convenient and quick, according to different user needs, to achieve rapid deployment
    4. Flexible and practical, can be "off line" deployment, is advantageous for the bank will be    placed in the area of customer focused service terminal
    5. Extensibility is strong, can be customized according to different application scenarios


Multifunction:


  • Banks
  • Metro Station
  • Shopping Mall
  • Hotel
  • Hospital
  • Theatre
  • Railway Station
  • Parking Lot


Our Advantages:


Designed for 24 / 7 operation


  • vandal resistant components
  • Tightly integrated hardwre and software
  • Highly responsive user interaction


Elegant Appearance


  • Attractive decoration
  • High-quality design sketch
  • Regular elegant design
  • Attract end customer
  • Multi-color processed surface
  • Human engineering verification


Low Cost Solution


  • Easy of Operation
  • Modular design for easy maintenance
  • Stable-quality hardward components
  • Built on widely used stable provden technology
  • Complete supply chain management

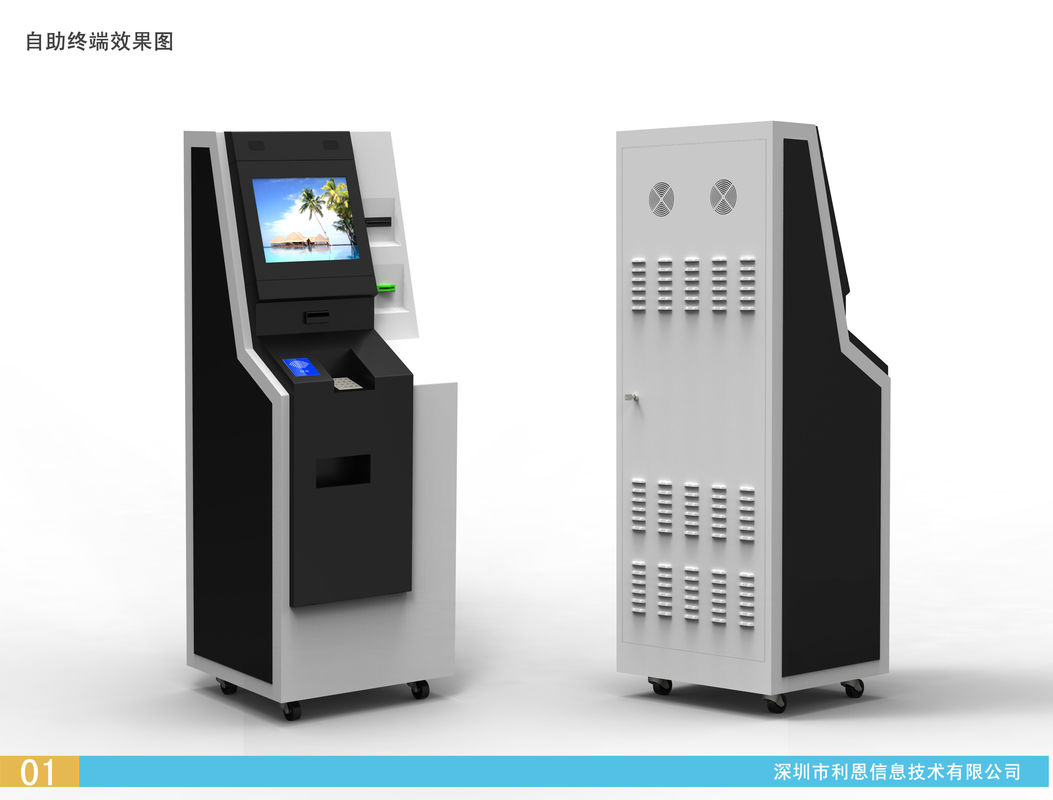

Main designs of  Automatic Banking Machine ATM Indoor Bill Payment Kiosk

Dustproof Indoor Bill Payment ATM Kiosk Automatic Banking Machine 0
Dustproof Indoor Bill Payment ATM Kiosk Automatic Banking Machine 1

Dustproof Indoor Bill Payment ATM Kiosk Automatic Banking Machine 2
